DISPLAY ICONS 700 CONTROLLER 33
Rev E
Filter Backwash Time (Filter Mode Only)
If the system is set up as a filter, the regenerant amount is unnecessary. The
controller deactivates the regenerant amount setting, and changes to an
adjustable backwash time in minutes.
Press SET to change the time.
The default time of 14 minutes will begin to flash.
Use UP and DOWN to select the appropriate backwash time for the
media type and amount used. The controller can use 0 to 99 minutes for
backwash.
Press SET again to enter that time.

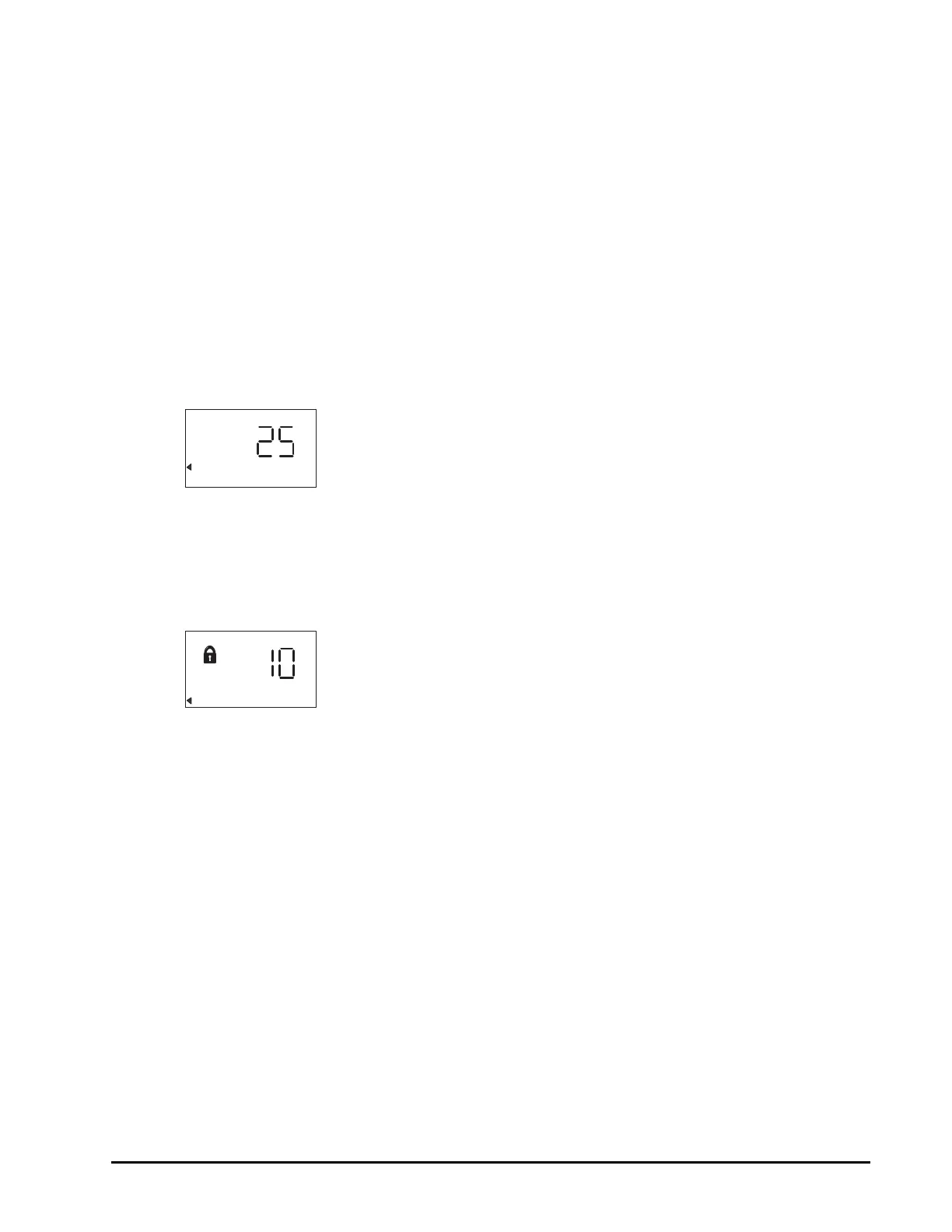

Step 8: Estimated Capacity
System capacity is displayed in total kilograins or kilograms of hardness
removed before a regeneration is necessary.
Value is derived from the system’s resin volume input and salt amount
input.
The capacity is displayed for information purposes on the 740 control. It
cannot be changed.
To change capacity on the 760 control, press SET to make the default
capacity flash. Use the UP and DOWN buttons to increment to the
desired capacity.
Press SET to accept the setting and advance to the next parameter.
If using the 740 control, programming is complete. The control will return you
to the normal operation mode.
Step 9: Enter Hardness (760 Demand Control Only)
Enter inlet water hardness at installation site.
Default hardness setting is 10 grains (ppm for metric).
To change hardness, press SET to make the setting flash. Use the UP
and DOWN buttons to scroll to the desired hardness.
Press SET to accept the entered hardness value.
The control will return you to the normal operation mode.
Initial programming is now complete. The control will return to normal
operation mode if a button is not pushed for 30 seconds.
For system start-up procedure, including: purging the mineral tank, refilling
the regenerant tank, and drawing regenerant, see the system start-up
procedure in the Dealer Installation and Service Manual.
KG
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Backwash Time
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
