4 LOGIX™ SERIES INSTALLER QUICK-START SHEET
Rev E
QUICK START
Initial Start-up Step-by-step Instructions

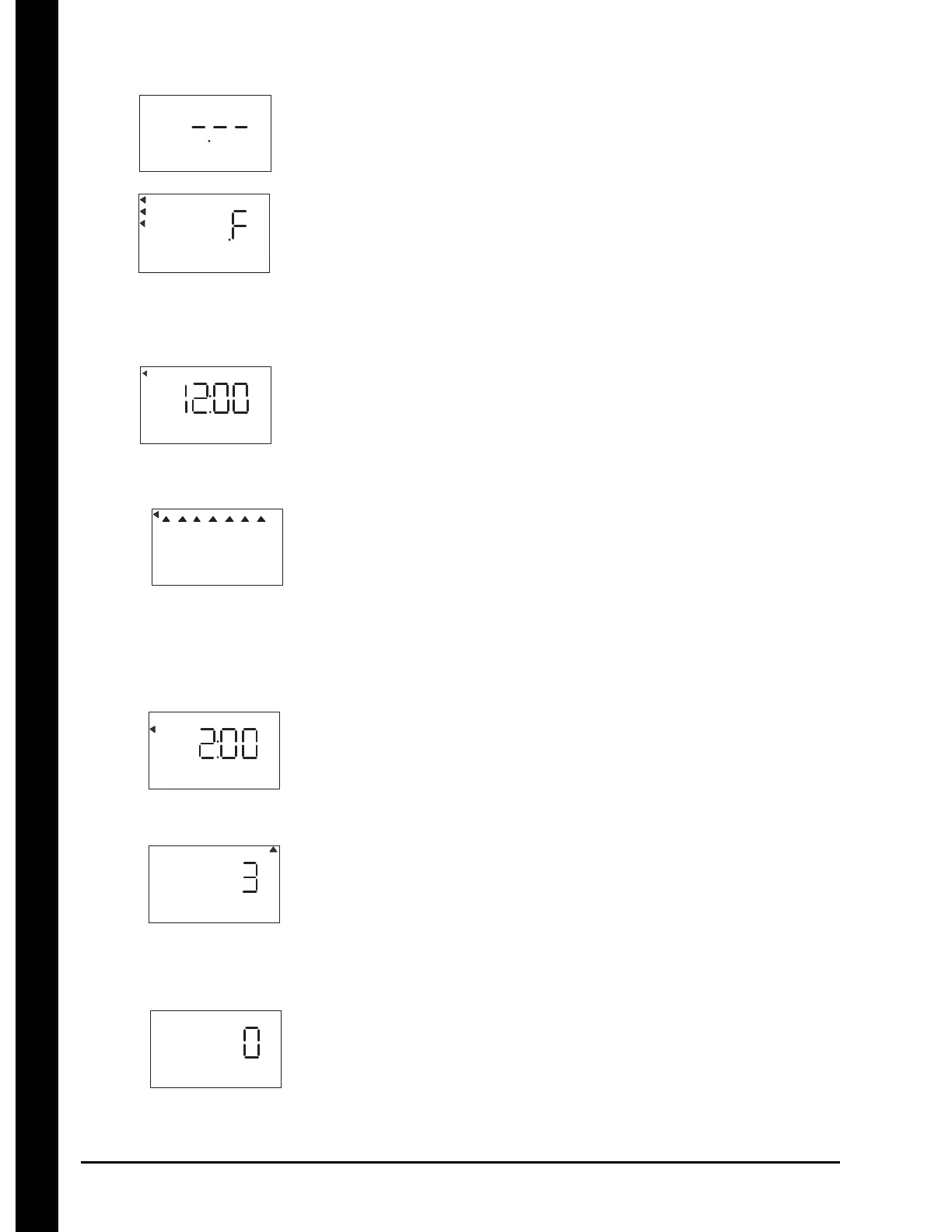

Step 1: Program System Size
This step may have been performed by your system’s OEM manufacturer. In
this case, proceed to step 2.
• Input system size - resin volume - in cubic feet or liters.
• Use UP and DOWN buttons to scroll through resin volume choices.
• Choose the nearest volume to your actual system size.
• To choose a 3-cycle filter operation - press DOWN until an "F" is
displayed.
• Press SET to accept the system size you’ve selected.
• If incorrect setting is programmed, see "Resetting the Control" section
below.
Step 2: Program Time of Day
• While "12:00" is blinking, set the correct time of day.
• Use the UP and DOWN buttons to scroll to the correct time of day.
• "PM" is indicated, "AM" is not indicated.
• Press SET to accept the correct time of day and advance to the next
parameter.
Step 3: Set Day of Week
• Press SET to make the arrow under SU flash.
• Use the UP and DOWN buttons to advance the arrow until it is under the
correct day of week.
• Press SET to accept and advance to the next parameter.
After steps 1-4, the controller will operate most systems. Proceed to
step 5 if further adjustments to your system’s programming is needed.
To exit the programming state, wait 30 seconds and the controller will
automatically put you into the normal operating mode.
Step 4: Set Regen Time
• 2:00 (AM) is the default time of regeneration. To accept this time, press
the DOWN button to move to step 5.
• To change the regen time, press SET - causing 2:00 to flash.
• Use the UP and DOWN buttons to advance to the desired regen time.
• Press SET to accept the time and advance to the next parameter.
Step 5: Set Days to Regenerate (740 Time-clock Control Only)
• If using 760 control - proceed to step 5a.
• Set number of days between time-clock regeneration (regen frequency).
• Default time is 3 days.
• Days can be adjusted from 1/2 (.5) to 99 days.
• To change, press SET to make the "3" flash.
• Use the UP and DOWN buttons to change to the number of days desired.
• Press SET to accept the regen frequency, and advance to the next cycle.
To use the 7-day timer option - see full Dealer Installation Manual.
Step 5a: Set Calendar Override (760 Demand Control Only)
• If using 740 control - proceed to step 7.
• Set number of days for calendar override on demand control.
• "0" days is the default for calendar override.
• Days can be adjusted from 1/2 (.5) to 99 days.
• To change, press SET to make the "0" flash.
