Installer Manual 255/LOGIX 742-762-764 - Programming
Ref. MKT-IM-021 / A - 20.02.2019 43 / 92
6. Programming

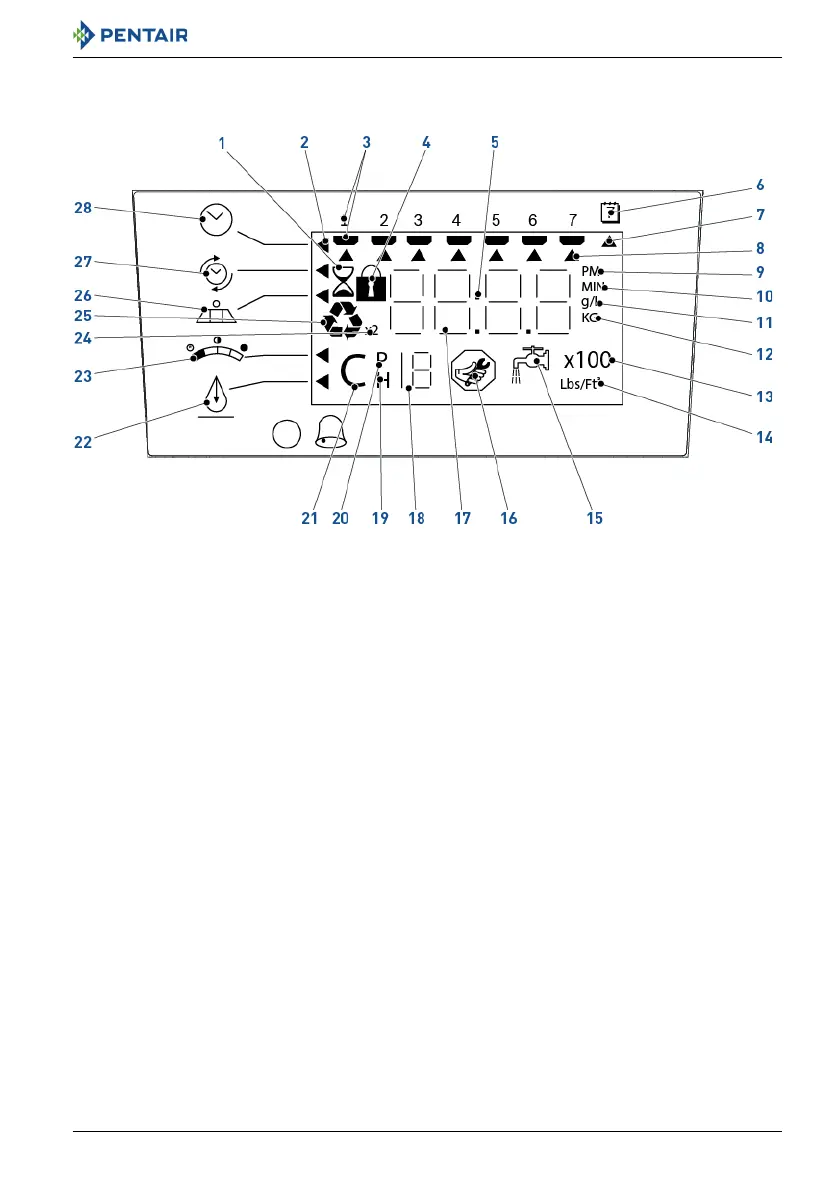

6.1. Display
1. Hourglass
Displayed when the motor is running. The camshaft should be turning.
2. Cursor
These cursors appear next to the item that is currently displayed.
3. Days of the week
Displayed days of the week. The flag below the day appears when that
day has been programmed as a day the system should regenerate
(used with 7-day timer programming, 742 only).
4. Locked/unlocked
indicator
This symbol is displayed in basic programming when the current
parameter is locked-out.
It is also used in advanced programming to indicate if the displayed
parameter is locked when the controller is in basic programming (the
icon flashes).
5. Colon
Colon flashes as part of the time display.
It also indicates normal operation (742 only).
6. Days between
regenerations
Days between regeneration programming / day override setting.
7. Cursor
This cursor is displayed when the days between regeneration / day
override are being programmed.
8. Cursor
One of these cursor is displayed to indicate which day is programmed
into the controller.
9. "PM"
Indicates that the time displayed is between 12:00 noon and 12:00
midnight (there is no AM indicator).
"PM" indicator is not used if the clock mode is set to 24-hour.
10. "MIN"
Indicates that the value entered/displayed is in minute increments.
