Pentair Logix 742 Installer Manual

Installer Manual 255/LOGIX 742-762-764 - Spare parts
90 / 92 Ref. MKT-IM-021 / A - 20.02.2019

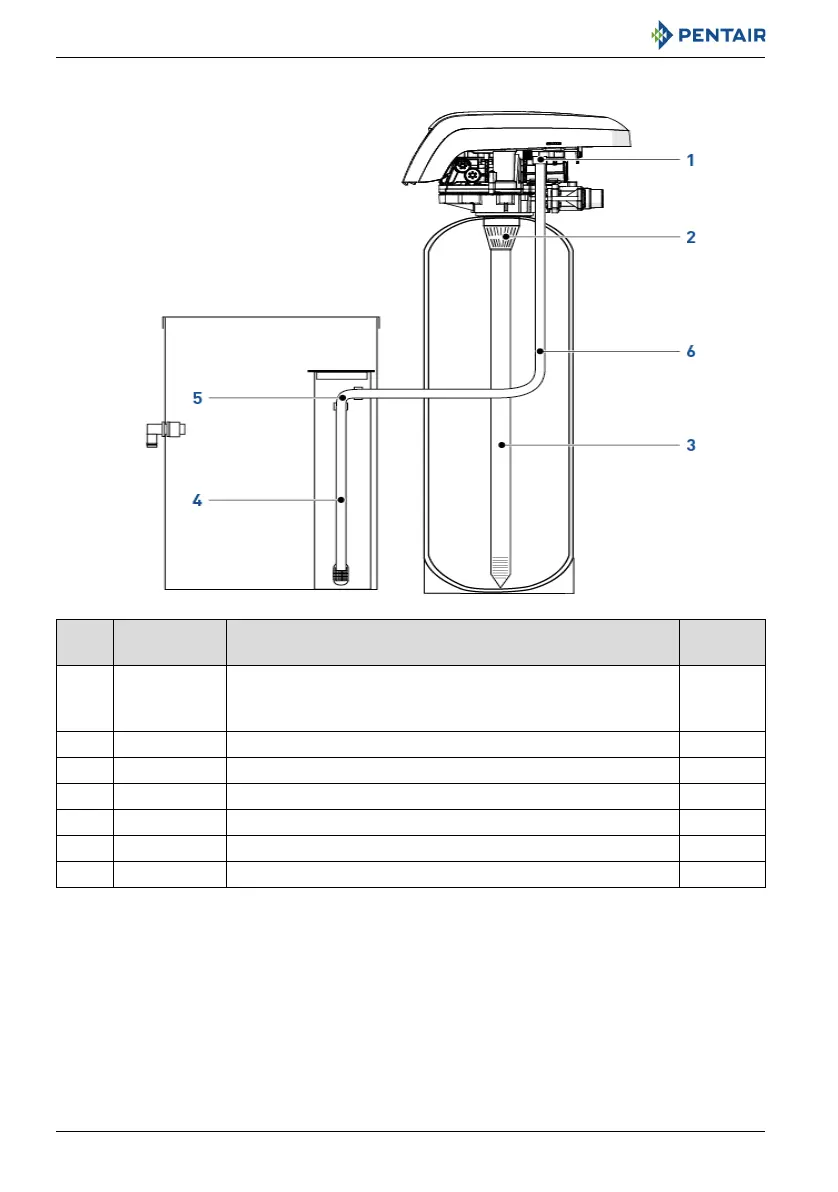

Valve installation kits
* Not shown
Item Part number Description
Assembly
quantity
* 3029815
Installation kit-255.
Consists of E01240; 1009116; 3028263; 3020267; CC-D1203;
MS-RI3460; AV090
1
1 E01240 Air check elbow (CA40) 1/4" FNPT- 3/8" T 1
2 1009116 Upper screen 1
3 3028263 Riser tube 1.050" 1
4 3028267 Brine tube 3/8" with screen 1
5 E01140 Union elbow 3/8" T - 3/8" T 1
6 E01480 Tubing 3/8" roll of 30 m 1
