MAGICSTREAM
®
Laminar Installation and User’s Guide MAGICSTREAM
®
Laminar Installation and User’s Guide
12
Note: It is recommends that the system pressure test be performed after
the deck housing is mounted to the supply piping.
5. Plug the flex line in the housing by disconnecting the union between the
deck housing and the Laminar. Using one of the Laminar adjustment
nuts, secure the winterization cap to the supply side of the union.
Note: The pressure on the piping/plumbing supplying the Laminar should
not exceed 50 PSI.
6. Once the deck is finished, flush any debris from the supply pipe using the
pump and filter system that supplies the Laminar.
Note: Any debris in the Laminar unit will hinder its ability to produce a
turbulence-free stream.

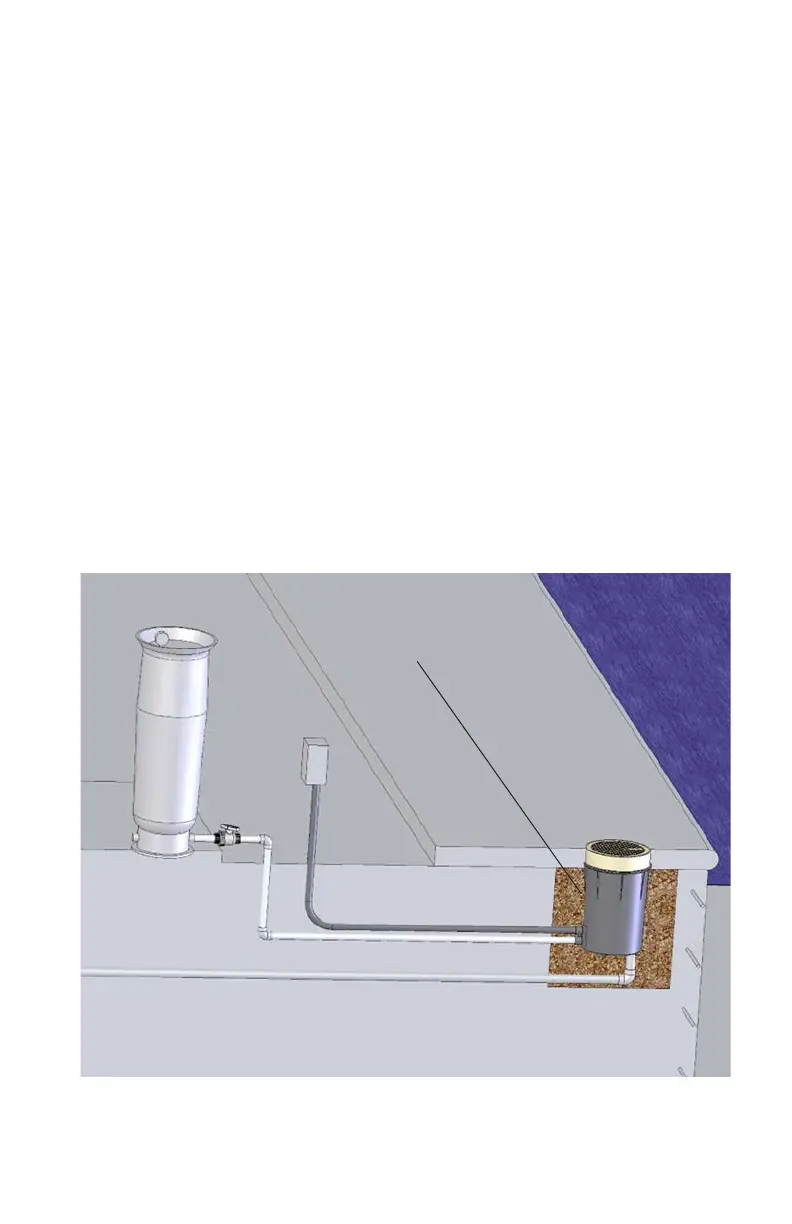

Pull 2-conductor cable through the opening
marked “electrical” in the deck housing
and feed it via electrical conduit to the
transformer’s location.
Transformer Location
Filter
Figure 2.
To Next Page
