MASTERTEMP
™
Pool and Spa Heater Installation and User’s Guide P/N 475106 Rev. A 2/2014
8 | Section
These installation instructions are designed for use by qualified personnel only, trained especially for installation of this
type of heating equipment and related components. Some states require installation and repair by licensed personnel. If
this applies in your state, be sure your contractor bears the appropriate license. See Figure 9 for Outdoor Installations.
SPECIFICATIONS

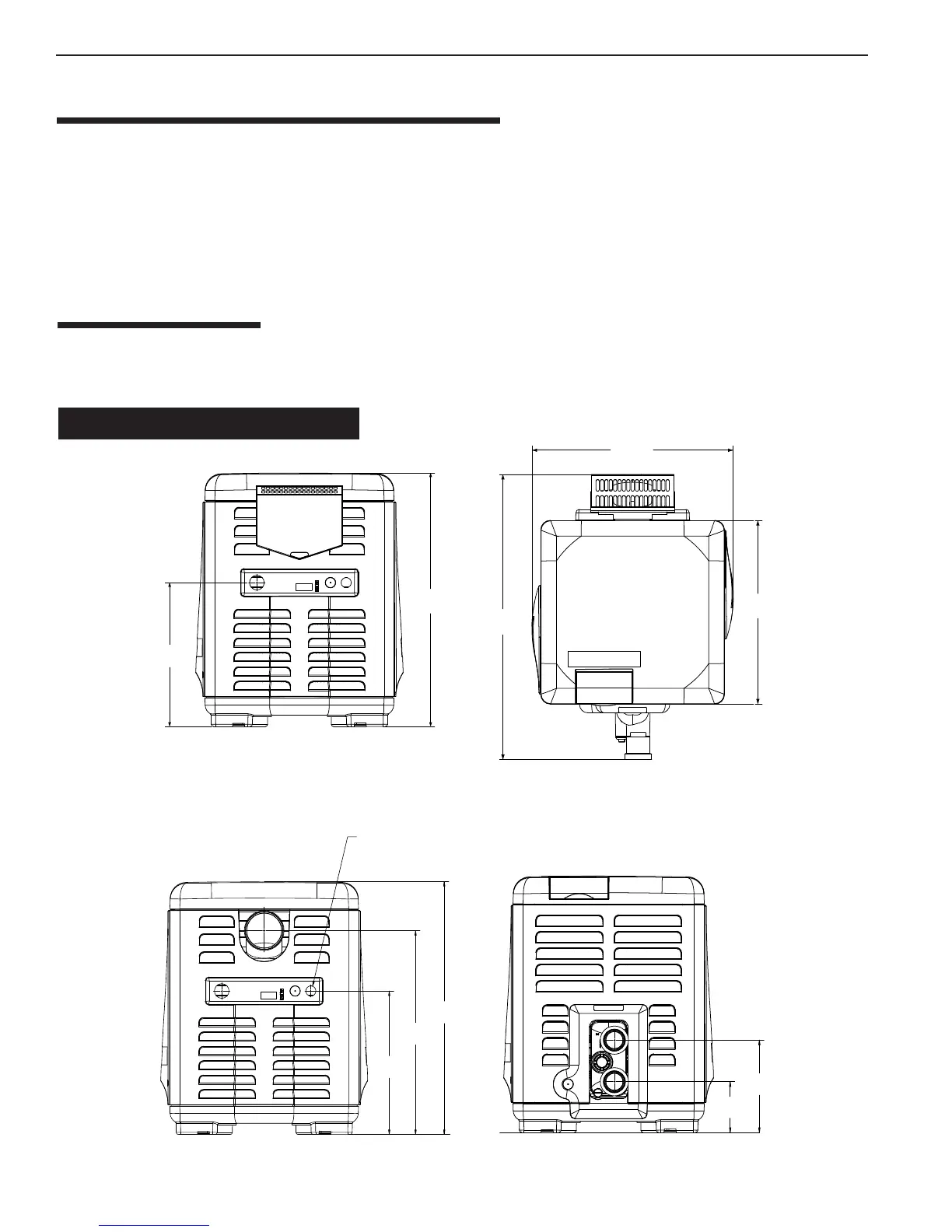

Figure 9.
53.3 cm
(21.0")
82.8 cm
(32.61")
58.5 cm
(23.02")
71.5 cm
(28.15")
40.6 cm
(16")
TOPFRONT
EXHAUST SIDE
PLUMBING SIDE
25.7 cm
(10.13")
14.2 cm
(5.6")
ELECTRICAL
CONDUIT PORT
71.6 cm
(28.2")
57.7 cm
(22.7")
40.6 cm
(16.0")
DIMENSIONS IN CENTIMETERS & INCHES
PUTTING THE HEATER INTO SERVICE
If the heater is installed below the level of the pool, or more than 0.6 meters (2 feet) above pool level, the pressure switch
setting should be adjusted. See “WATER PRESSURE SWITCH” in the “SAFETY CONTROLS Section” (page 5) and
the “CAUTION” under “BELOW
POOL INSTALLATION Section” (page 10).
Before putting the heater into service for the first time, follow the instructions under “BEFORE ST
ART-UP” (page 3) in
the front of this manual. Check for proper operation of the heater by following the steps under
, see page 4 “OPERATION
INSTRUCTIONS.”
Notice: Damage to equipment caused by improper installation or repair will void the warranty.
1. Installation
