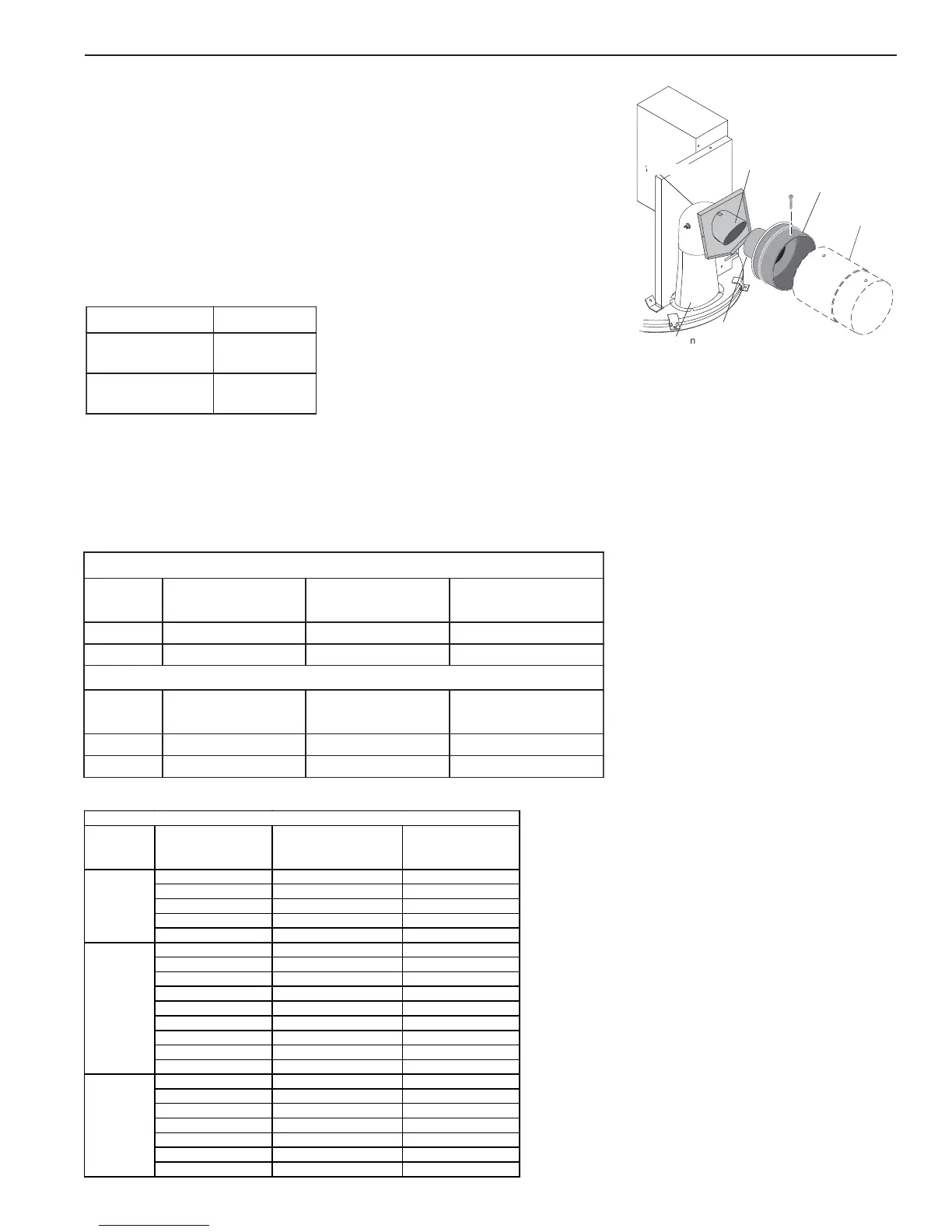

VERTICAL VENTING
(See Figures 19, 19A and 20)
Vent the heater vertically in a system in accordance with local codes and local
codes. Double-wall vent connector is recommended; however single-wall pipe is
allowed in some circumstances. Consult your local code official for detailed
information. Do not use a draft hood with this heater.
To connect a double wall metal gas vent to the heater, order the appropriate
Metal Flue Collar from the chart below:
1. See Table 6 to determine allowable vent sizes for your heater.
NOTICE: Table 6 is for installations in which the total lateral vent length (that is, the horizontal distance from
the flue collar to the main vertical portion of the vent) is less than half the total vent height (the vertical
distance from the flue collar to the vent termination) and which have three or less elbows in the system. For
vent lengths gr
eater than 16 m (52.5 ft), only one elbow is allowed. See Table 6a below for details.
C
o
m
b
us
ti
o
n
C
hambe
r
Flue Collar
4" x 8" Metal
Flue Collar
V
ent Bod
V
V
y
y
C
lean the Interior Surface
Vent Pipe
C
lean and RTV
This
S
u
r
face
Figure 20.
Read “VERTICAL VENTING” before using this table.
Table 6. – Permitted Minimum and Maximum Vent Heights By Size and Heater Model
)teeF(sreteMnirotcennoCllaW-elbuoDhtiwtneVllaW-elbuoD
eziStneV
002ledoM
.xam/.nimthgieH
003ledoM
.xam/.nimthgieH
004ledoM
.xam/.nimthgieH
).ni6(mm051).tf27(m22/).tf6(m8.1).tf27(m22/).tf03(m9elbatiuStoN
).ni8(mm002).tf27(m22/).tf6(m8.1).tf27(m22/).tf6(m8.1).tf27(m22/).tf8(m4.2
)teeF(sreteMnirotcennoCllaW-elgniShtiwtneVllaW-elbuoD
eziStneV
002ledoM
.xam/.nimthgieH
003ledoM
.xam/.nimthgieH
004ledoM
.xam/.nimthgieH
).ni6(mm051).tf51(m6.4/).tf6(m8.1elbatiuStoNelbatiuStoN
).ni8(mm002elbatiuStoN).tf02(m6/).tf6(m8.1).tf02(m6/).tf8(m4.2
Maximum
Elbows
Allowed
[C]
Total Vent Length
(C=A+B)
[A]
Horizontal Maximum
Vent Length
[B]
Vertical Vent Length
2m (6.6 ft.) 0.67m (2.2 ft.) 1.33m (4.4 ft.)
3m (9.8 ft.) 1m (3.3 ft.) 2m (6.6 ft.)
4m (13.1 ft.) 1.33m (4.4 ft.) 2.67m (8.8 ft.)
5m (16.4 ft.) 1.67m (5.5 ft.) 3.33m (10.9 ft.)
6m (19.7 ft.) 2m (6.6 ft.) 4m (13.1 ft.)
7m (23 ft.) 2.33m (7.6 ft.) 4.67m (15.3 ft.)
8m (26.2 ft.) 2.67m (8.8 ft) 5.33m (17.5 ft.)
9m (29.5 ft.) 3m (9.8 ft.) 6m (19.7 ft.)
10m (32.8 ft.) 3.33m (10.9 ft.) 6.67m (21.9 ft.)
11m (36.1 ft.) 3.67m (12 ft.) 7.33m (24 ft.)
12m (39.4 ft.) 4m (13.1 ft.) 8m (26.2 ft.)
13m (42.6 ft.) 4.33m (14.2 ft.) 8.67m (28.4 ft.)
14m (45.9 ft.) 4.67m (15.3 ft ft.) 9.33m (30.6 ft.)
15m (49.2 ft.) 5m (16.4 ft.) 10m (32.8 ft.)
16m (52.5 ft.) 5.33m (17.5 ft.) 10.67m (35 ft.)
17m (55.8 ft.) 5.67m (18.6 ft.) 11.33m (37.2 ft.)
18m (59 ft.) 6m (19.7 ft) 12m (39.4 ft.)
19m (62.3 ft.) 6.33m (20.8 ft.) 12.67m (41.6 ft.)
20m (65.6 ft.) 6.67m (21.9 ft.) 13.33m (43.7 ft.)
21m (68.9 ft.) 7m (23 ft.) 14m (45.9 ft.)
22m (72.2 ft.) 7.33m (24 ft.) 14.67m (48.1 ft.)
3
2
1
Maximum Number of Elbows per Vent Lengths
Table 6a. – Maximum Number of Elbows per Vent Lengths
Section 2. Installation
ralloCeulFlateM.oNtraP
mm051xmm001
)"6x"4(
6700-70777
mm002xmm001
)"8x"4(
7700-70777
