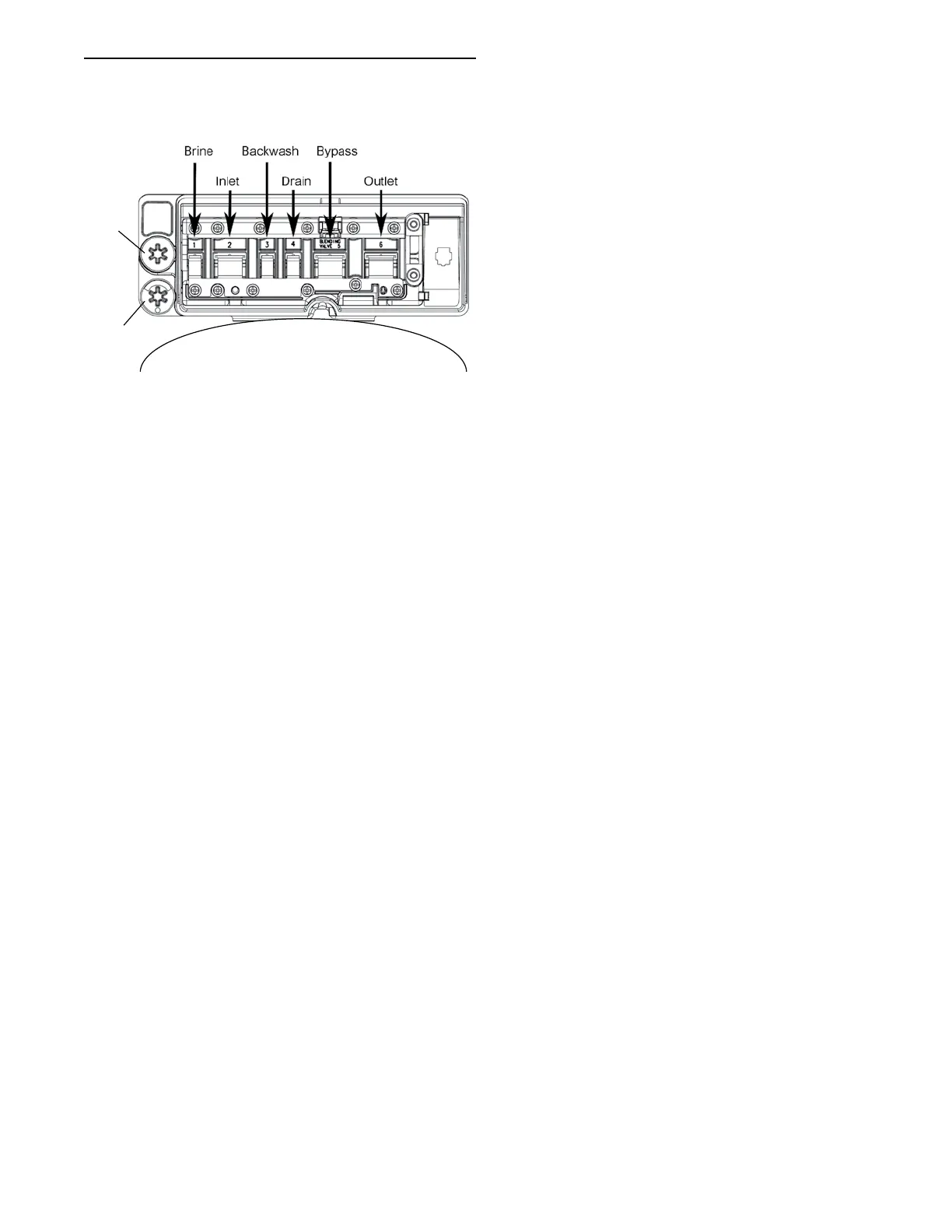

Flapper Positions
When the control cover is removed the appers and camshaft
are visable (Figure 17).
Injector
Cap
Refill
Control
Cap
Figure 17
TROUBLESHOOTING continued
OM26K • 17
