6500 Series Purge and Pressurization System
I/O Manual
20

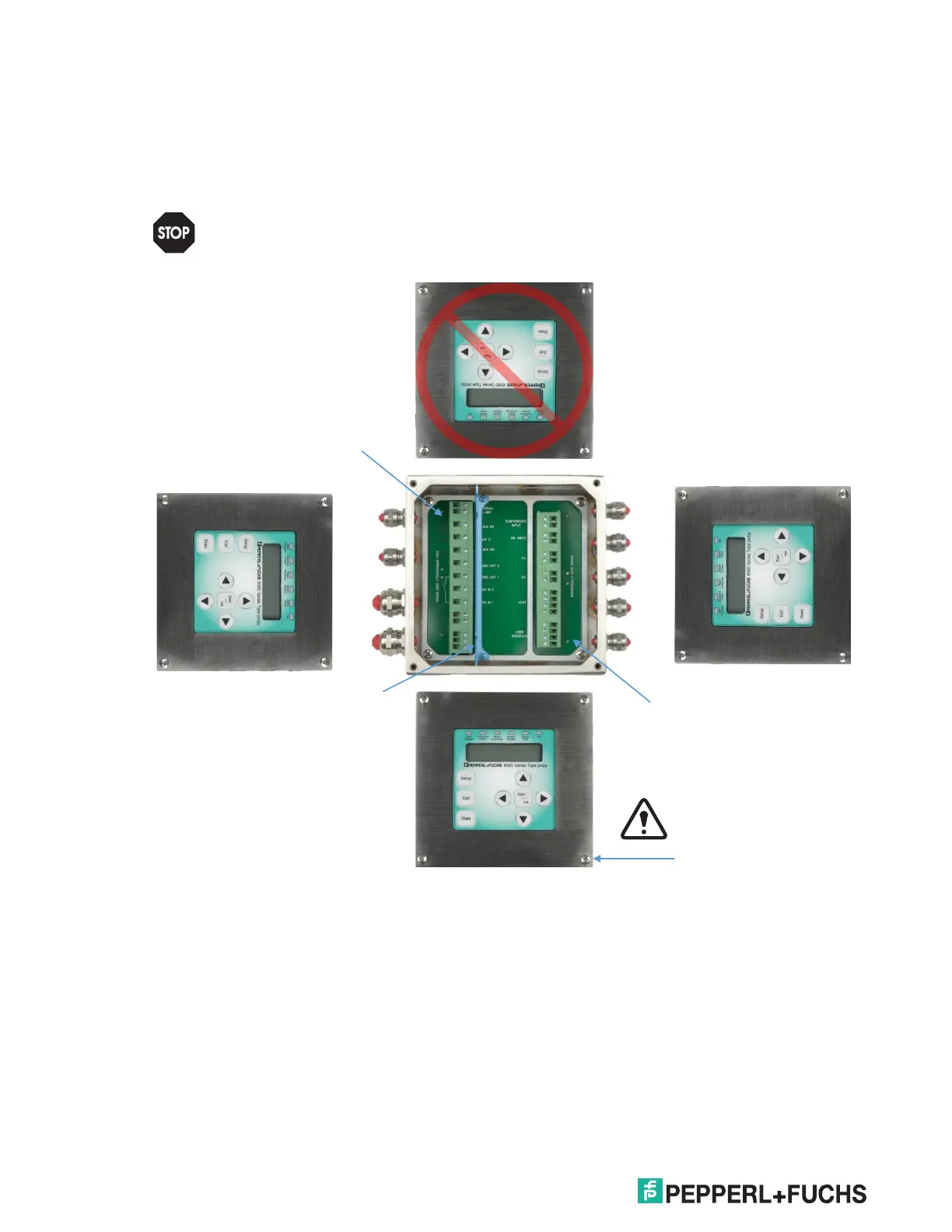

2.7 Mounting of the control unit – external, internal, internal with remote
UIC mounting
Control unit flush mount
6mm screw
text
I.S. / Non-I.S. Partition
Intrinsically Safe Wiring
Non-Intrinsically Safe Wiring
Danger!
Display can be rotated +90°
or -90° as shown. Rotation of
display is not allowed when
the I.S. cable/connector of
the UIC is directly over the
non-I.S. wiring terminals.
Warning!
6mm screws and washers
(4 included)
Torque specification for UIC
screws is 14 in-lb (1.5 Nm)
To Next Page
