6500 Series Purge and Pressurization System
I/O Manual
32

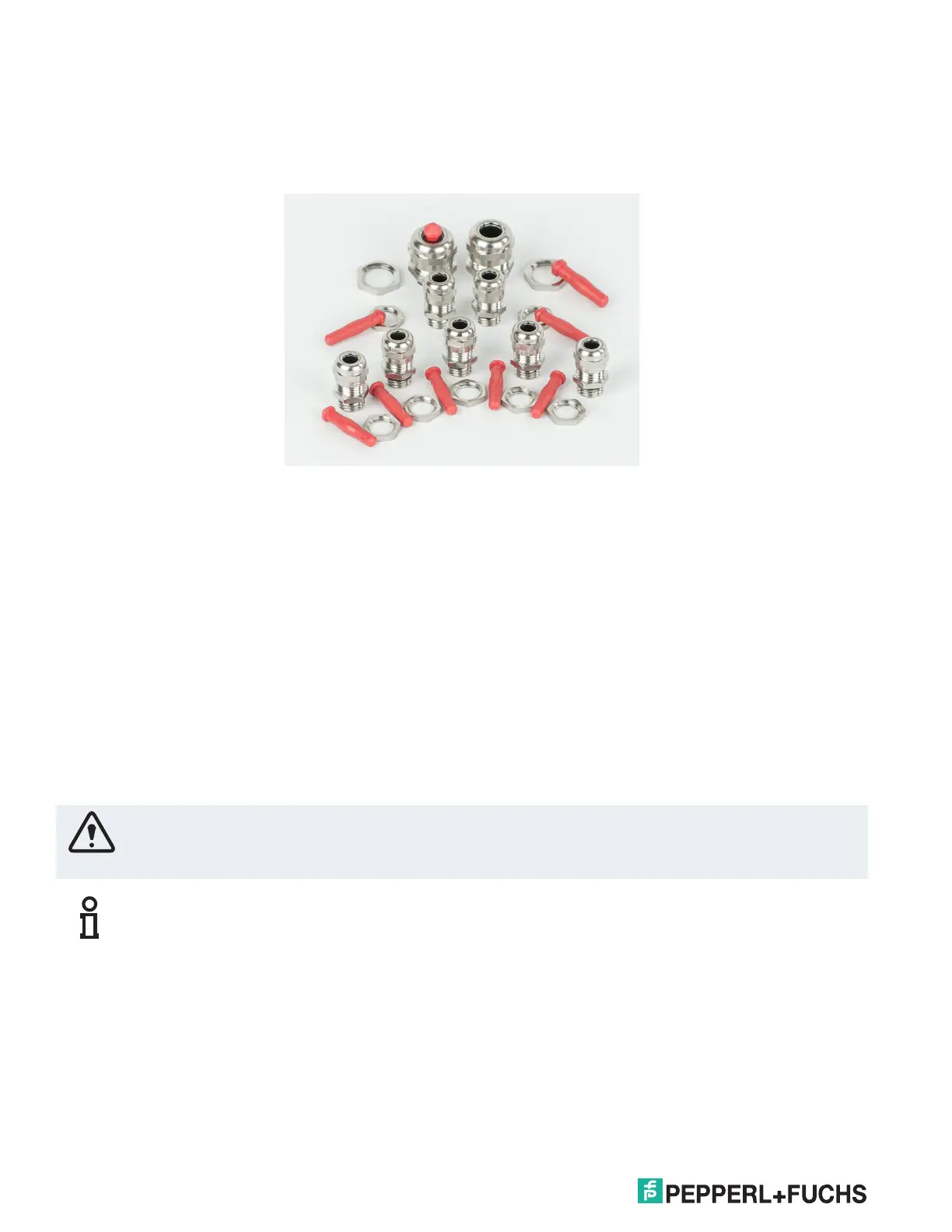

5 Cable glands 6500-CBLG....
It was noted that the 6500-01 control unit does not come with cable glands. These can be supplied by the
customer or can be purchased from Pepperl+Fuchs as a kit. Pepperl+Fuchs offers cable glands in several
different materials and in the power side and the I.S. side (low power side).
The ‘P’ power side of the 6500 control unit requires (2) M16 cable glands, usually for power to the 6500
unit and enclosure power (contact output), and (2) M12 cable glands for auxiliary contact output and
Ethernet. The cable glands are available in stainless steel, nickel-plated brass, or plastic. All types are
certified and matched to the 6500 certifications. Each cable gland also includes the approved blanking
plug for the cable gland selected. Lock nut is also included.
Customer supplied cable glands are allowed by the certification of the 6500 and has to meet the area
classification certification. The termination of the cable glands to the 6500 housing will require a locking
washer because the housing is not threaded.
The ‘L’ Intrinsic safe side of the 6500 control unit requires (5) M12 cable glands for I.S. field devices to and
from the 6500 control unit. The cable glands are available in stainless steel, nickel-plated brass, or plastic.
All types are certified and matched to the 6500 certifications. Each cable gland also includes the approved
blanking plug for the cable gland selected. Lock nut is also included.
Warning!
Customer supplied cable glands and blanking plugs must be certified for the area classification.
Note!
Special consideration may be required if ambient temperatures are above 60 °C; entries into the control
°C
