AS-i/PROFIBUS Gateway
Appendix: Putting Profibus into Operation with a Siemens S5
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
65

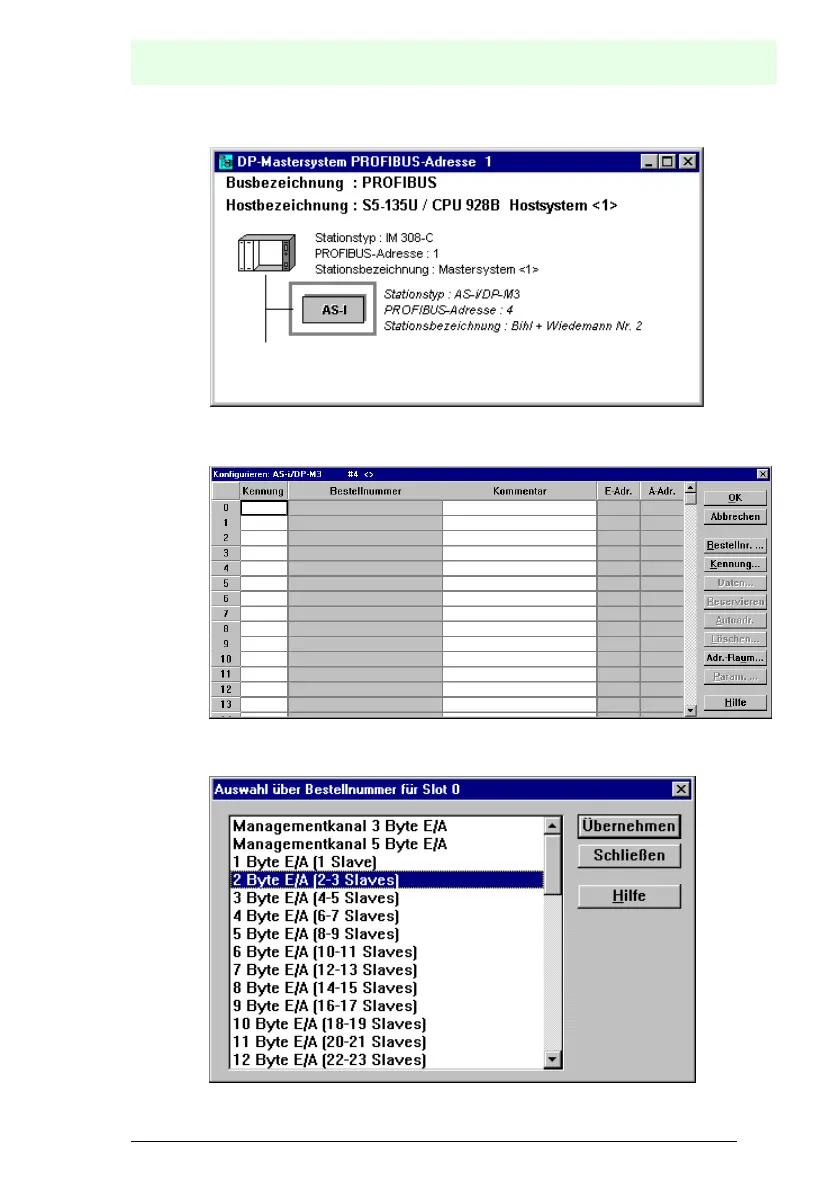

9. Afterwards, your Profibus system looks like as follows:
10.Select the Profibus slave. With the command “Configure | Slave Parameters... |
Configure...“ you get to the dialogbox “Configure“.
11.Choose as first identification from the dialogbox “Order No.“ an identification for
the largest used AS-i slave address:
