AS-Interface
Appendix: Putting Profibus into Operation with a Siemens S5
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
66
12.Choose as second identification from the dialogbox “Order No.“ the identification
“Managementkanal 3 Byte E/A“.
13.Choose as third identification from the dialogbox “ID“ the identification the appro-
priate length for user flag bytes.
14.If the AS-i Control user memory field is bigger than 16 bytes the identification has
to be put together out of several identification bytes. Therefore a fourth identifica-
tion with the length 5 bytes has to be added, to transmit a whole user memory field
of 21 bytes.

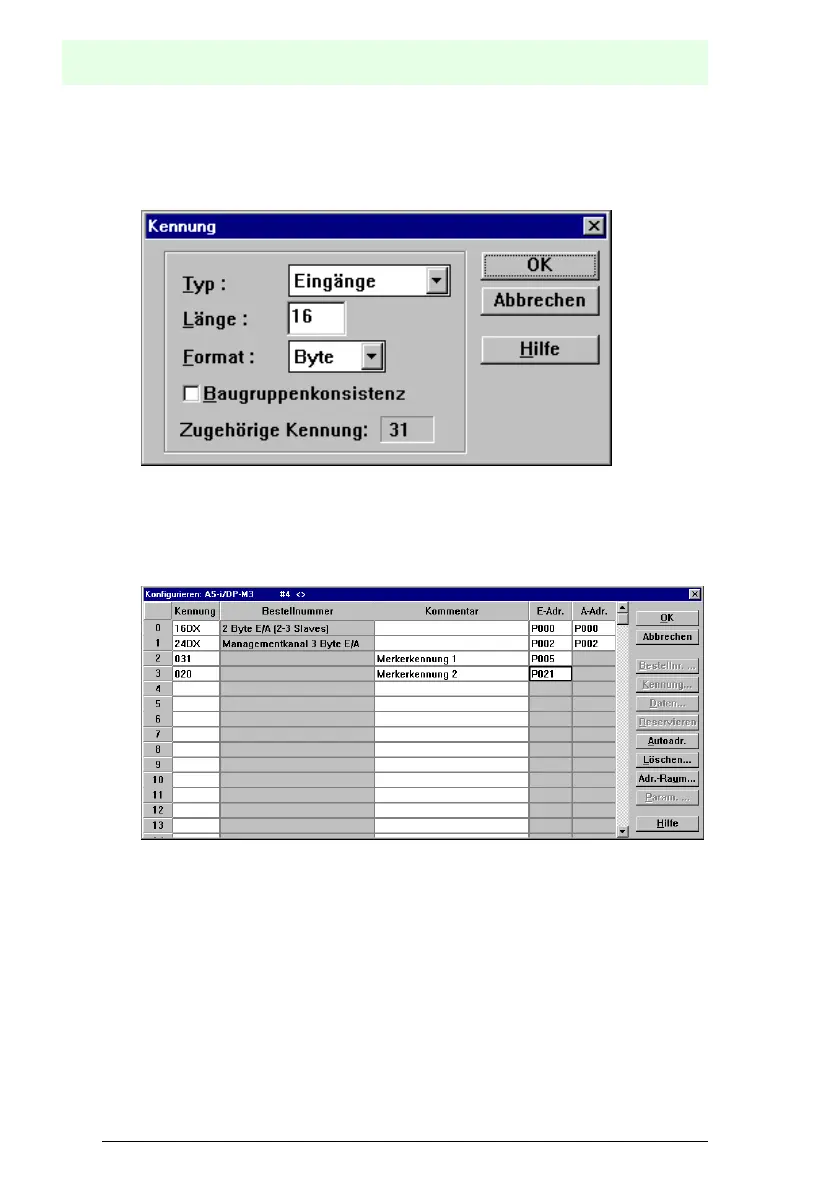

15.The dialogbox “Configure“ now looks like as follows:
The fields “I Addr.“ and “O Addr.“ hold the start addresses for the AS-i data, the
management channel and the user memory bytes. The easiest way to set the ad-
dresses is with “Auto Addr.“
