AS-i/PROFIBUS Gateway
Appendix: Putting Profibus into Operation with a Siemens S5
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
67
16.Select the Profibus slave. With the command “Configure | Slave parameters... |
Parameterize...“ you get to the dialogbox “Parameterize“.

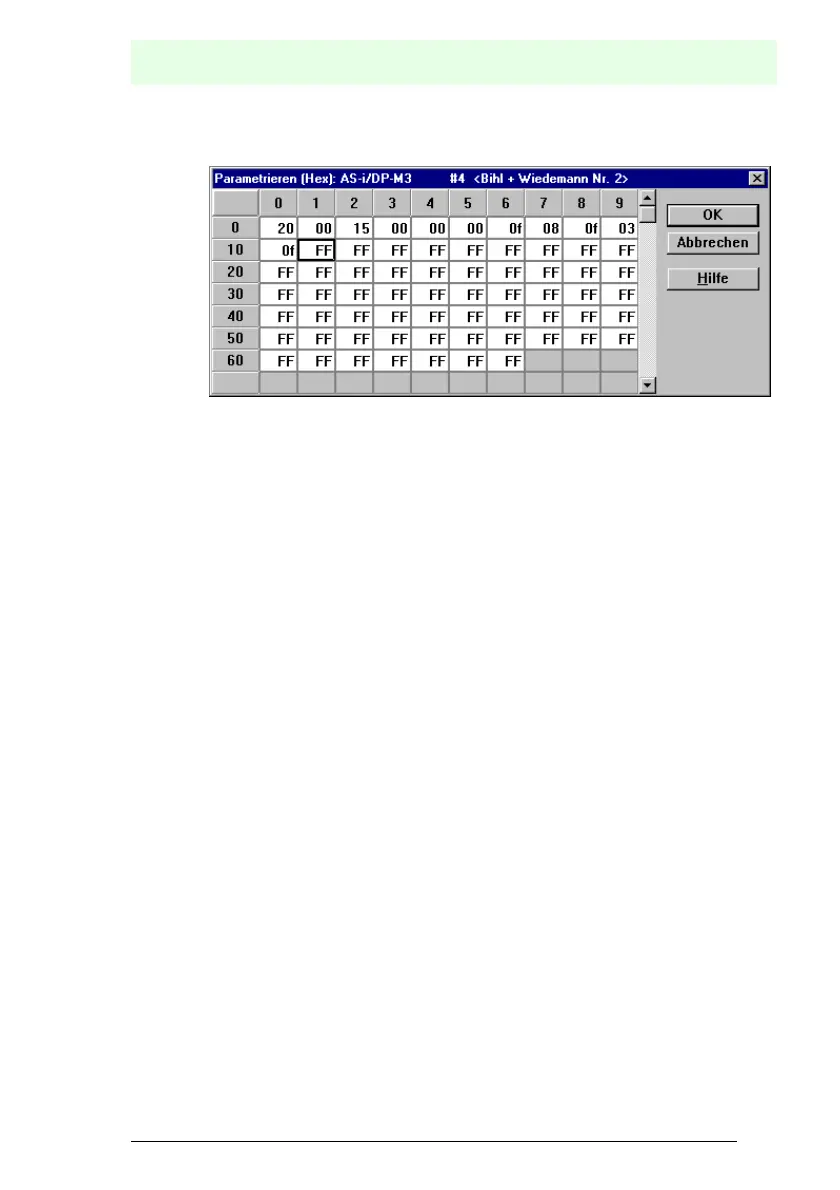

Edit the dialogbox as shown above, to set the user memory fields and to state the
AS-i configuration in the parameterization telegram.
17.After closing this dialogbox save your project with the command “File | Save“.
18.The last step is exporting the data to a memory card with the command “File | Ex-
port | Memory Card...“
