Performance Tool W1645 User Manual

OPERATION
To raise:
1. Park vehicle on a hard level surface safely
away from oncoming trafc.
2. Turn off the vehicle’s engine.
3. Place the vehicle’s transmission in PARK, if
equipped with an automatic, or in its lowest
gear, if equipped with a manual transmission.
4. Set the vehicle’s emergency brake and block
the wheels that are not being lifted.
5. Refer to vehicle owner’s manual for proper
jacking procedures. Lift only on areas of
vehicle as specied by manufacturer.
6. Make certain that load is centered on saddle.
7. Turn pump handle clockwise to close.
8. Pump to raise load to desired height.
9. ALWAYS support load with jack stands. (See
gure 2) Place jack stands of appropriate
capacity (not included) beneath the vehicle
at locations recommended by the vehicle
manufacturer. DO NOT Get under the vehicle
without jack stands. jacks are not designed
to maintain heavy loads for long periods of
time. DO NOT attempt to put jack stands
simultaneously under both ends of vehicle or
under one side of vehicle. NOTE: When using
two jack stands, they must be at the same
height.
10. SLOWLY turn the release valve
counterclockwise to lower vehicle onto jack
stands and remove jack.
To lower:
1. Remove all tools, parts, etc. from under the
vehicle.
2. Position the saddle under the lifting point.
Turn the Handle rmly clockwise to close the
valve, and pump the upper/lower handle to
raise the vehicle slightly above the saddle(s)
of the jack stands. Then, collapse and remove
jack stand(s).
3. SLOWLY turn the release valve
counterclockwise with the handle just enough
to allow controlled descent of the vehicle onto
the ground. (Never more than two full turns).
4. Lower the jack completely. Then, store in a
safe, dry location out of reach of children.

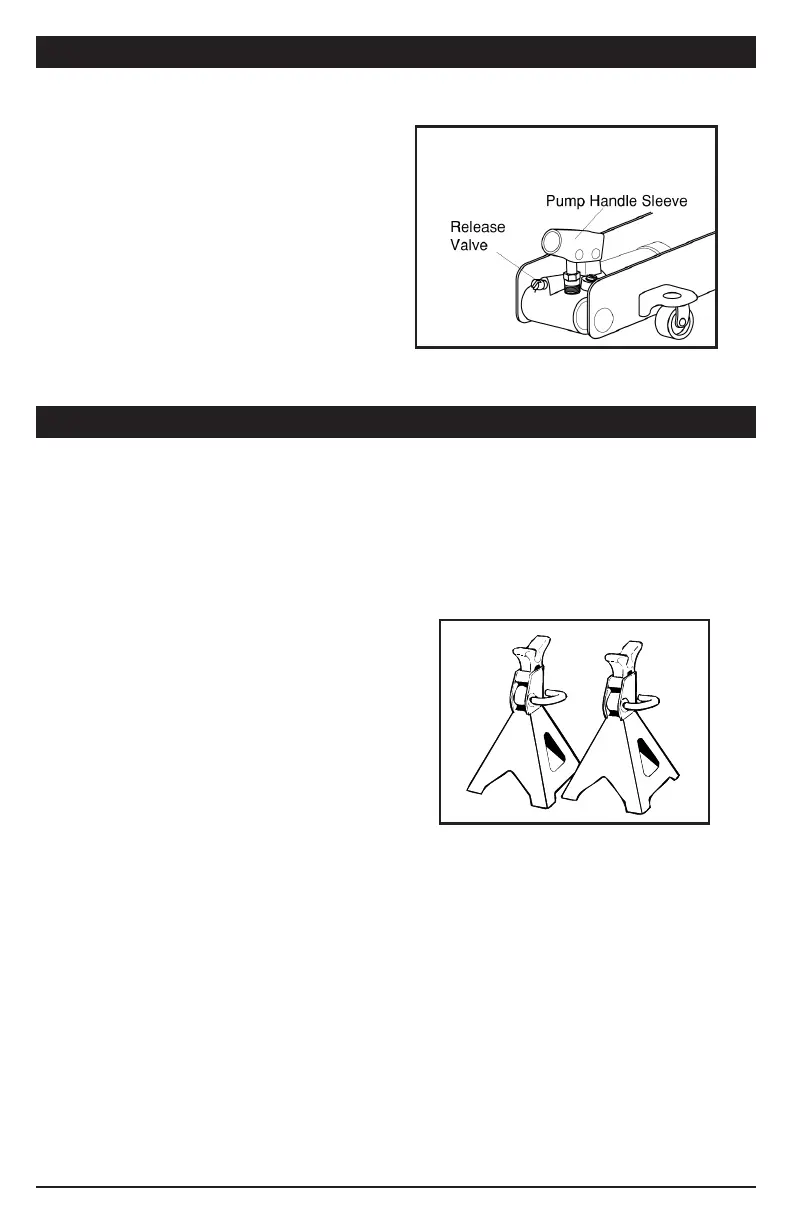

Figure 2
IMPORTANT: NEVER MOVE JACK WHEN THE HANDLE IS IN OPERATING LEVER OR THE
VALVE SLEEVE. DAMAGE TO THE PUMPING UNIT MAY OCCUR.

NOTICE During shipment or handling, air in the jack can become trapped in the hydraulic system
causing the jack to malfunction.
BEFORE USE
Figure 1
Before using your jack:
1. Turn pump handle counter-clockwise no more
than two turns to open.
2. Pump jack about 6 full strokes to ensure
complete distribution of hydraulic uid.
(See Figure 1)
3. Repeat above steps as needed.
4

Performance Tool W1645 Specifications

General

Brand	Performance Tool
Model	W1645
Category	Jacks
Language	English
