Performance Tool W1645 User Manual

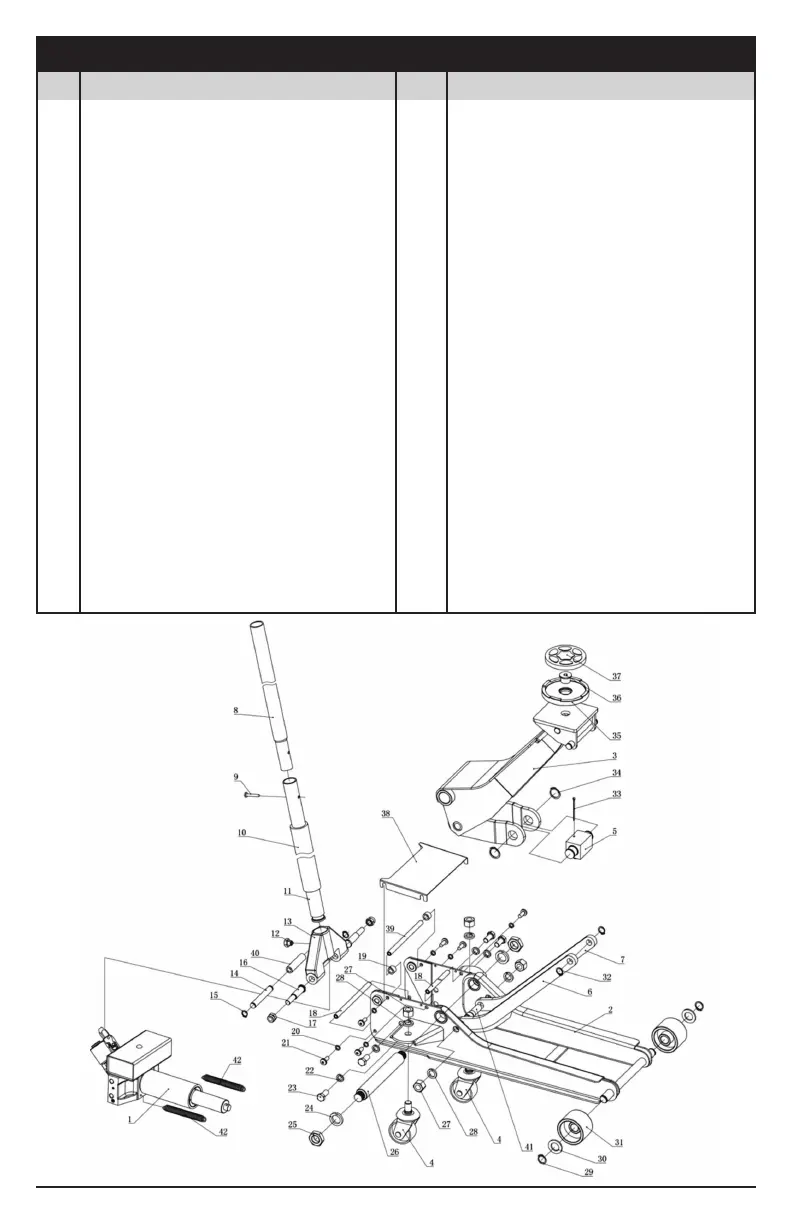

EXPANDED PARTS LIST
1 Pump Assy. ......................... 1
2 Body Frame ....................... 1
3 Lifting Arm........................... 1
4 Castor ................................. 2
5 Piston Adaptor .................... 1
6 Right Adjust Plate .............. 1
7 Left Adjust Plate ................. 1
8 Handle Tube 1 ..................... 1
9 Screw .................................. 1
10 Handle Foam ...................... 1
11 Handle Tube 2 ..................... 1
12 Screw .................................. 1
13 Handle Socket .................... 1
14 Roller Pin ............................. 1
15 C-Clip .................................. 2
16 Screw .................................. 2
17 Lock Nut ............................. 2
18 Handle Limiting Bar ............ 2
19 Rubber Ring ........................ 2
20 Spring Washer .................... 6
21 Screw .................................. 6
No. Description Qty. No. Description Qty.
22 Spring Washer .................... 4
23 Bolt ..................................... 4
24 Spring Washer .................... 2
25 Nut ...................................... 2
26 Shaft.................................... 1
27 Nut ...................................... 4
28 Spring Washer .................... 4
29 C-Clip .................................. 2
30 Washer ................................ 2
31 Front Wheel ......................... 2
32 C-Clip .................................. 2
33 Pin ....................................... 1
34 C-Clip .................................. 2
35 Adaptor ............................... 1
36 Locking Nut......................... 1
37 Rubber Pad ......................... 1
38 Tool Tray .............................. 1
39 Handle Limiting Bar (Short) . 1
40 Roller ................................... 1
41 Adjust Screw ....................... 1
42 Spring ................................. 2
7
