5. Remove the two Phillips round head screws with washer (M4*12L) to disassemble the existing cell
holder and base plate.

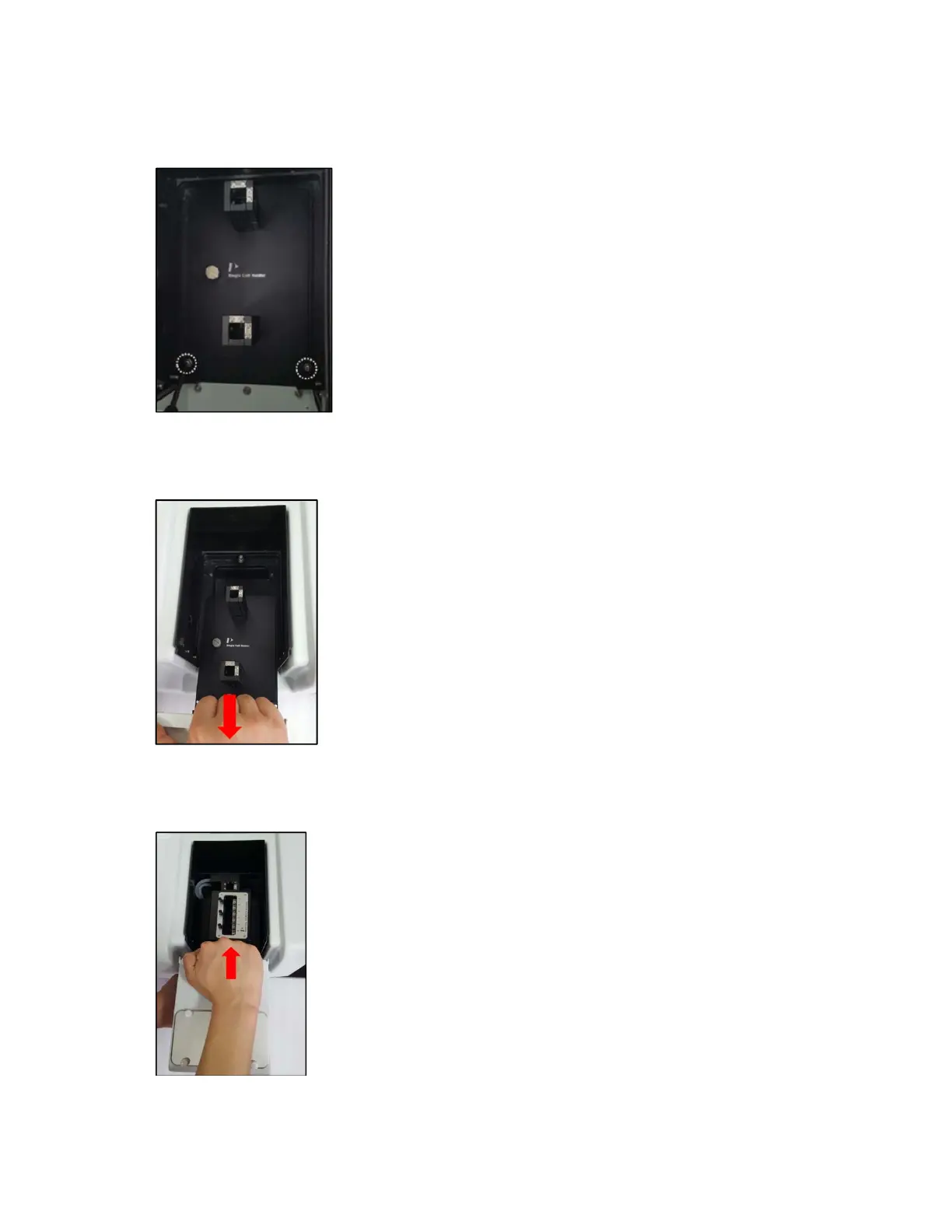

Figure 8 Location of Phillips round head screws with washer
6. Pull out the cell holder and base plate by hand.
Figure 9 Pulling out the cell holder and base plate
7. Insert the 6-Position Peltier Controlled Cell Changer in the sample compartment.
Figure 10 Inserting the 6-Position Peltier Controlled Cell Changer
