09931286E
10
8. Gently press the 6-Position Peltier Controlled Cell Changer to connect the communication port (male)
under the bottom of the 6-Position Peltier Controlled Cell Changer to the port (female) in the
sample compartment.

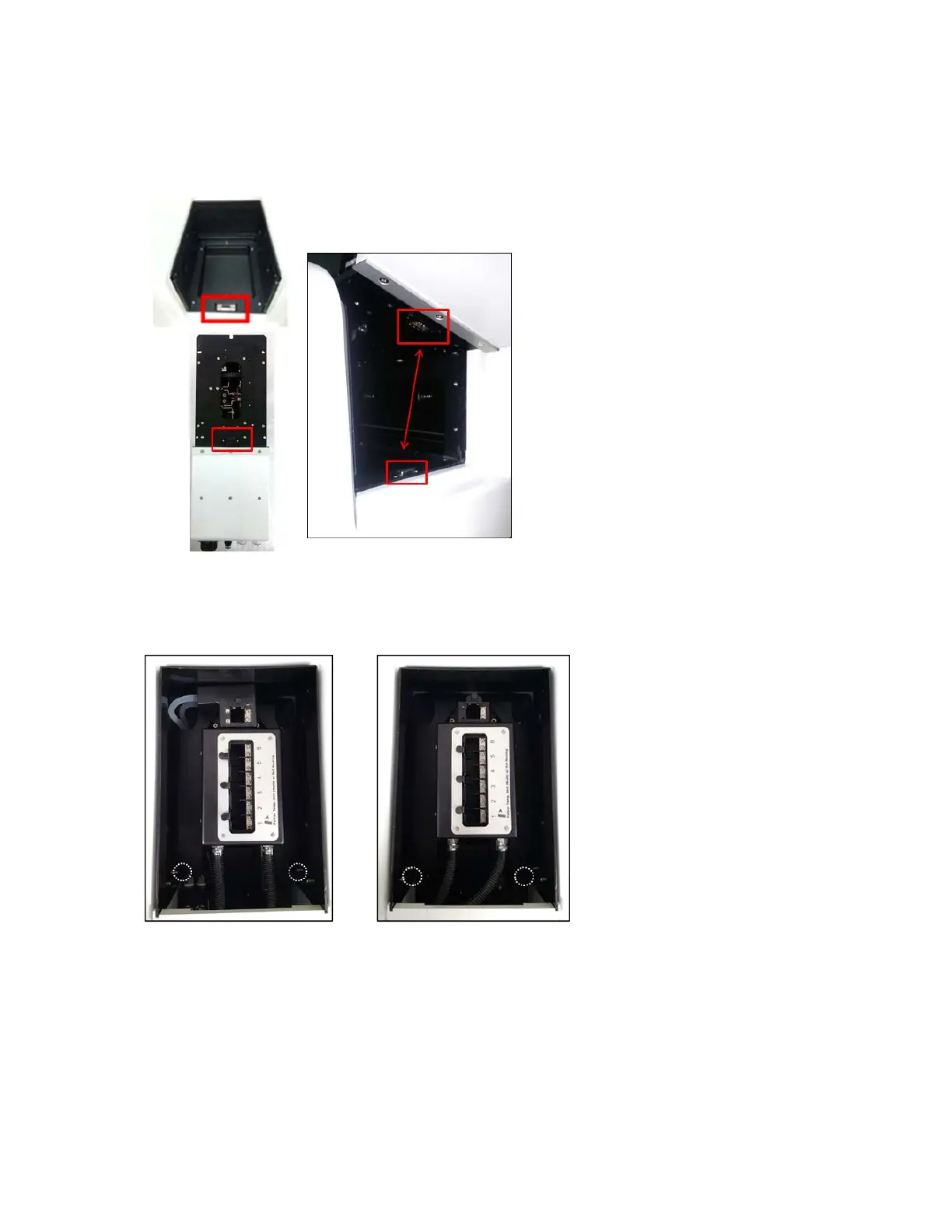

Figure 11. Connecting the communication ports
9. Fix and tighten the 6-Position Peltier Controlled Cell Changer with the Phillips round head screws.
or
Figure 12 Location of screws (with heated reference or without heated reference)
