RENR2696-01 93

Troubleshooting Section

g00884730

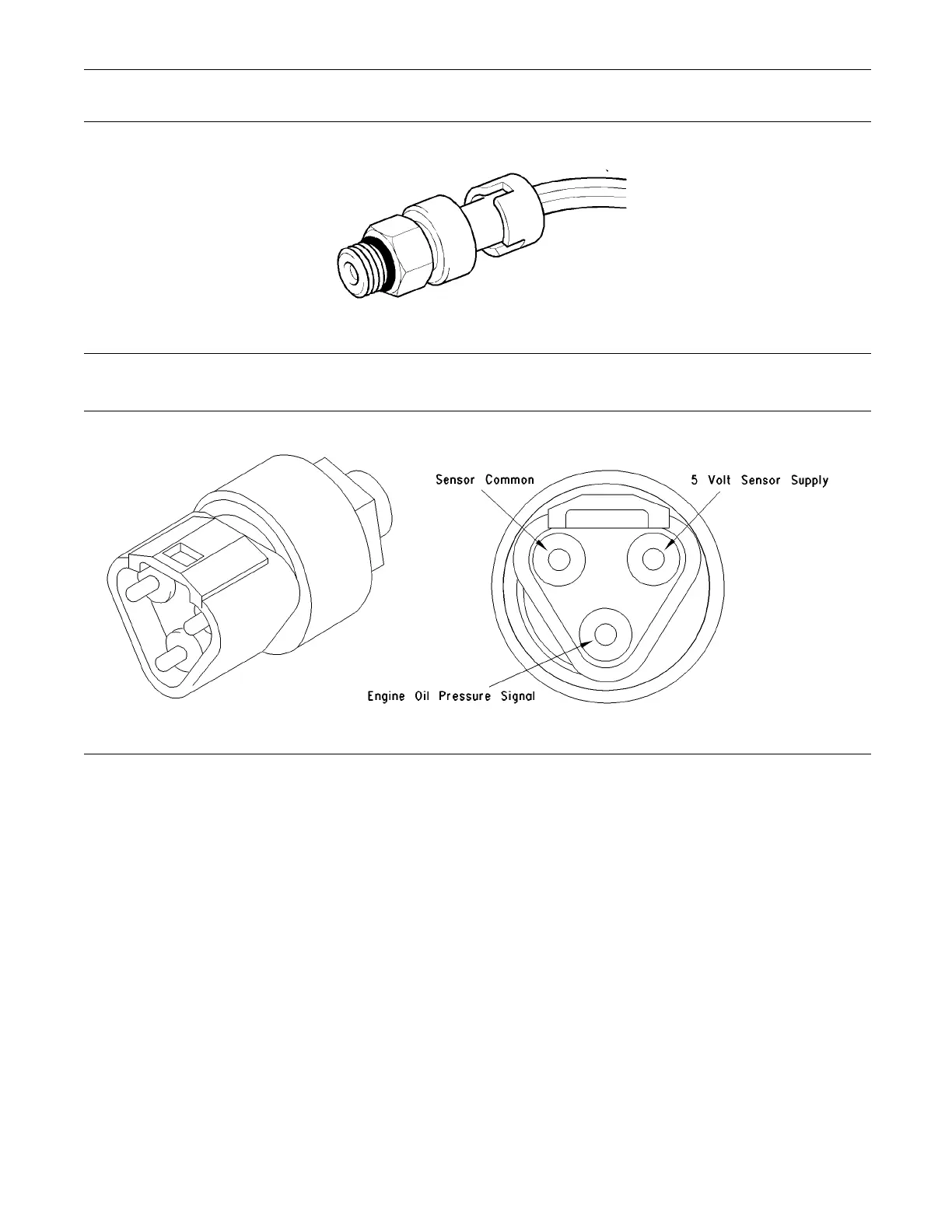

Illustration 19

The sensor for the intake manifold pressure

g00835146

Illustration 20

Engine oil pressure sensor
