Troubleshooting Section
g00954290

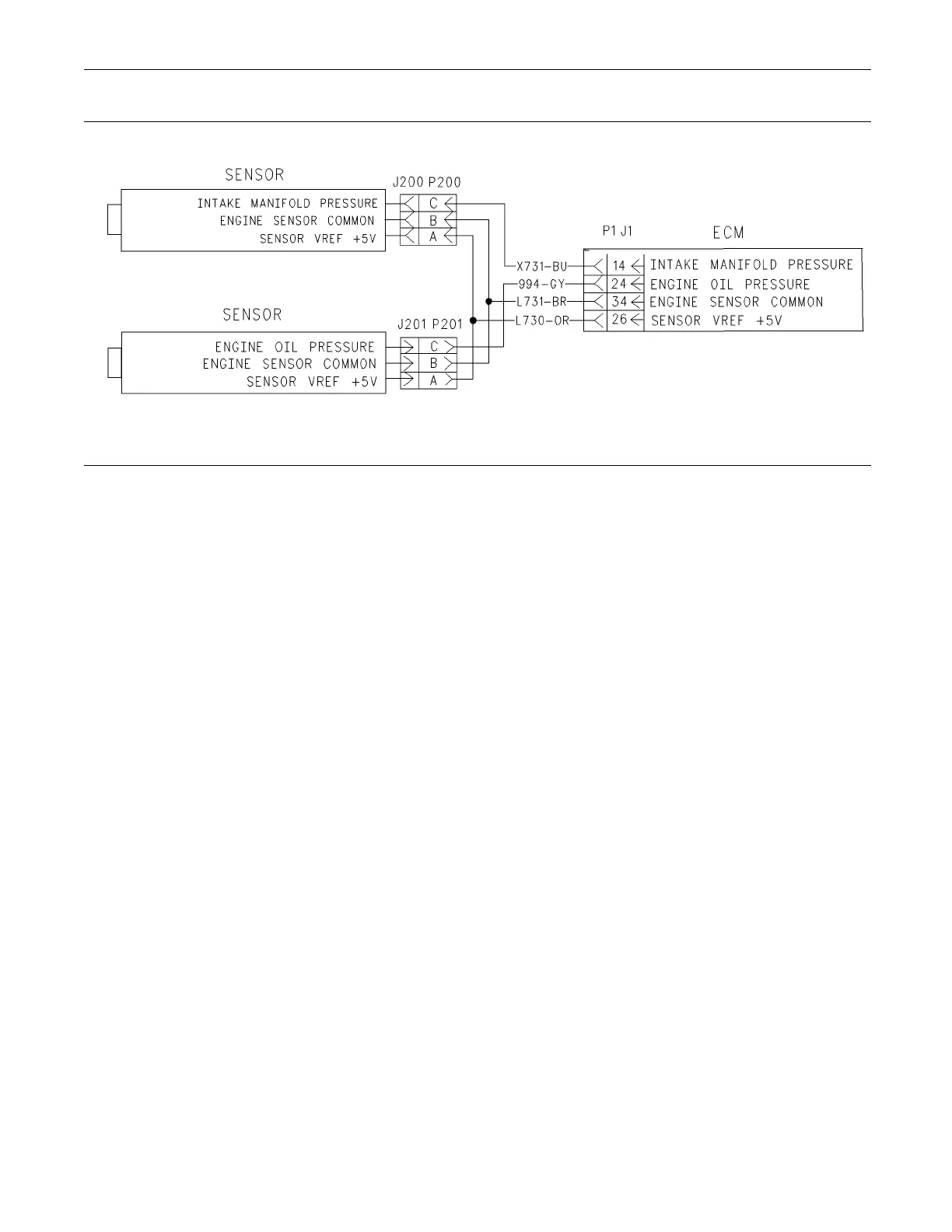

Illustration 21
Schematic o f the +5 V supply for the engine pressure sensors
Test Step 1. Inspect Electrical Connectors
And Wiring.
A. Thoroughly inspect the following connections:
•
P1/J1 ECM Engine harness connector
•
P20/J20 MIC Machine harness connector
•
P201/J201 Engine oil pressure sensor
•
P200/J200 Intake manifold pressure sensor
Refer to Troubleshooting, “Electrical Connectors -
Inspect” for details.
To Next Page
