16 KENR6908
Troubleshooting Section
g01433340

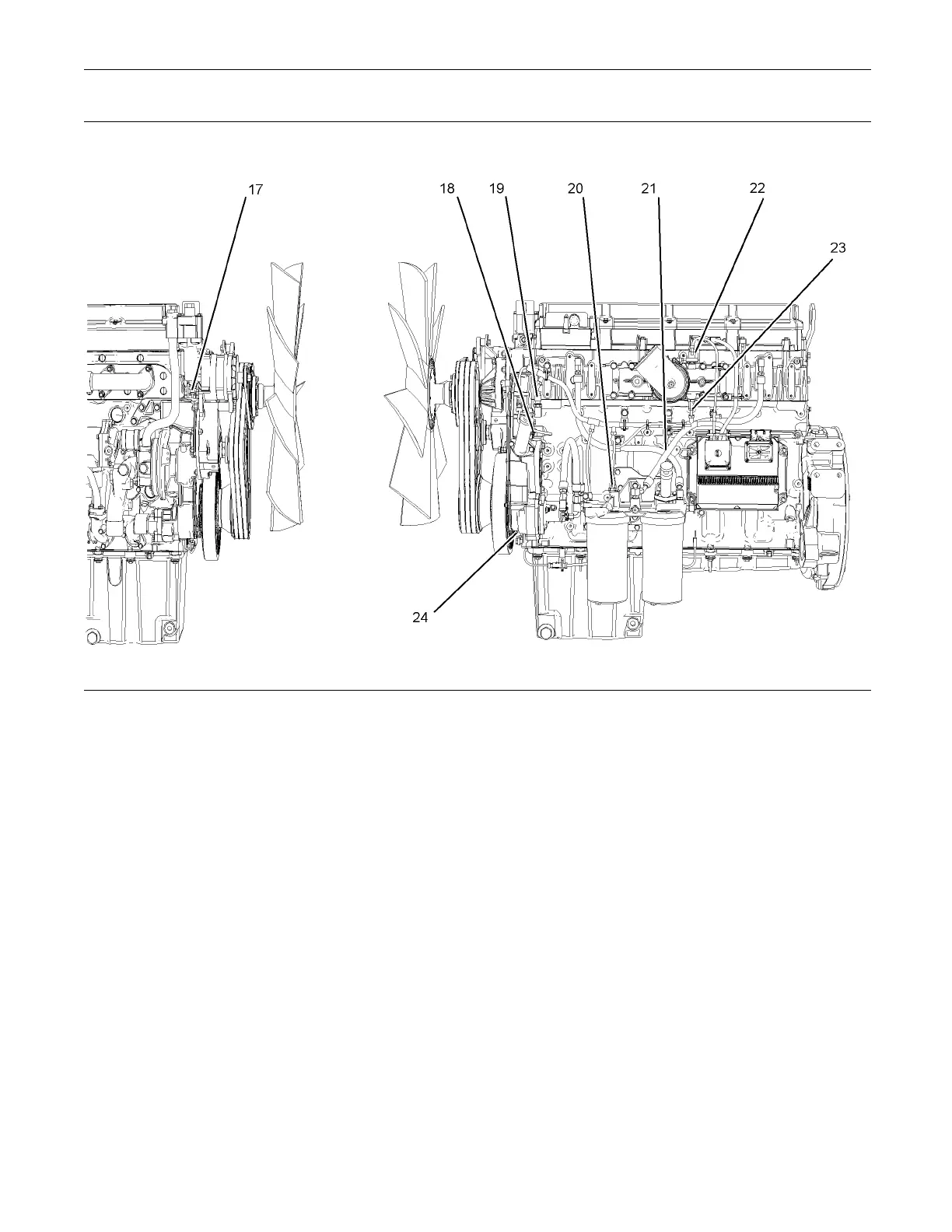

Illustration 5
Locations of the sens ors o n the 2206-13 engine
(17) Coolant temperature sensor
(18) Cam shaft position sensor
(19) Atmosp heric pressure sensor
(20) Fuel temperature sensor
(21) Engine oil pressure sensor
(22) Inlet manifold p ressure sensor
(23) Inlet manifold temperature sensor
(24) Crankshaft position sensor
