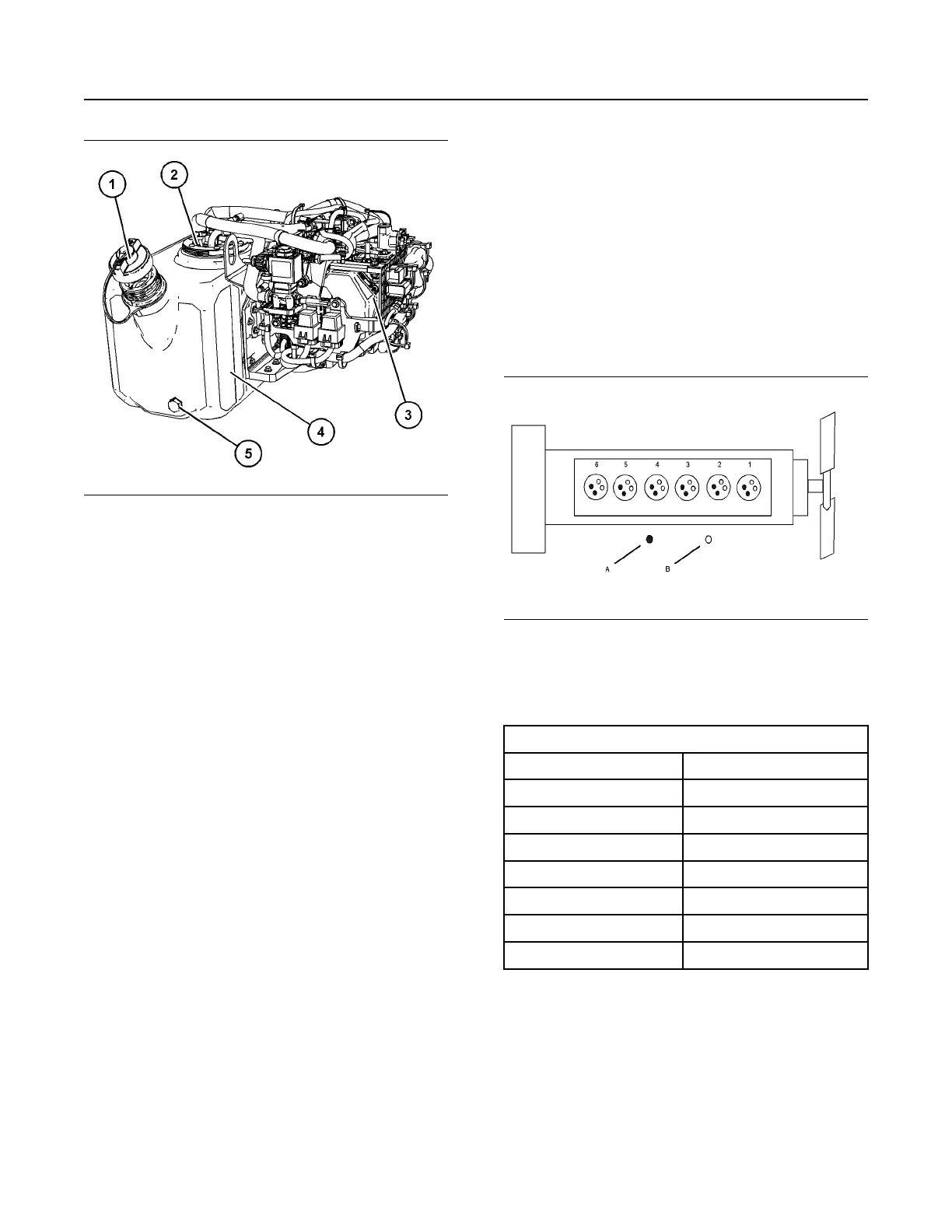

Illustration 18 g06136981
(1) DEF pump electronics containing filter
(2) DEF tank header
(3) DEF filler cap
(4) DEF tank drain
(5) DEF tank
i06839988
Product Description
The Perkins 2206F-E13TA Industrial Engine has the
following characteristics:
• Four-stroke cycle
• Mechanically actuated, electronically controlled
fuel injection system
• Turbocharged
• Air to air charged cooled
• Aftertreatment system
There are two different designs for the aftertreatment
system that can be installed on the 2206F-E13TA.
Both systems have the Clean Emissions Module
(CEM), but the configuration of the CEM is different.
With an engine model of PP3 the CEM is configured
of three main items. The diesel oxidation catalyst, the
diesel particulate filter, and the selective catalytic
reduction.
With an engine model of PP4 the CEM is configured
of four main items. The aftertreatment regeneration
device, diesel oxidation catalyst, the diesel
particulate filter, and the selective catalytic reduction.
The selective catalytic reduction requires the use of
Diesel Exhaust Fluid (DEF) to be injected into the
system to lower the emissions from the engine. The
(DEF) is stored and controlled by the pump electronic
tank unit. The DEF tank can be installed separate
from the electronic pump unit.
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. The number 1 cylinder is the front cylinder.
Illustration 19 g01387009
Cylinder and valve location
(A) Exhaust valve
(B) Inlet valve
Table 1
Engine Specifications
Engine
2206F
Arrangement and Cylinders In-Line 6 cylinder
Bore 130 mm (5.1 inch)
Stroke 157 mm (6.2 inch)
Aspiration
ATAAC
(1)
Displacement 12.5 L (763 cubic inch)
Firing Order
1-5-3-6-2-4
Rotation (flywheel end)
Counterclockwise
(continued)
