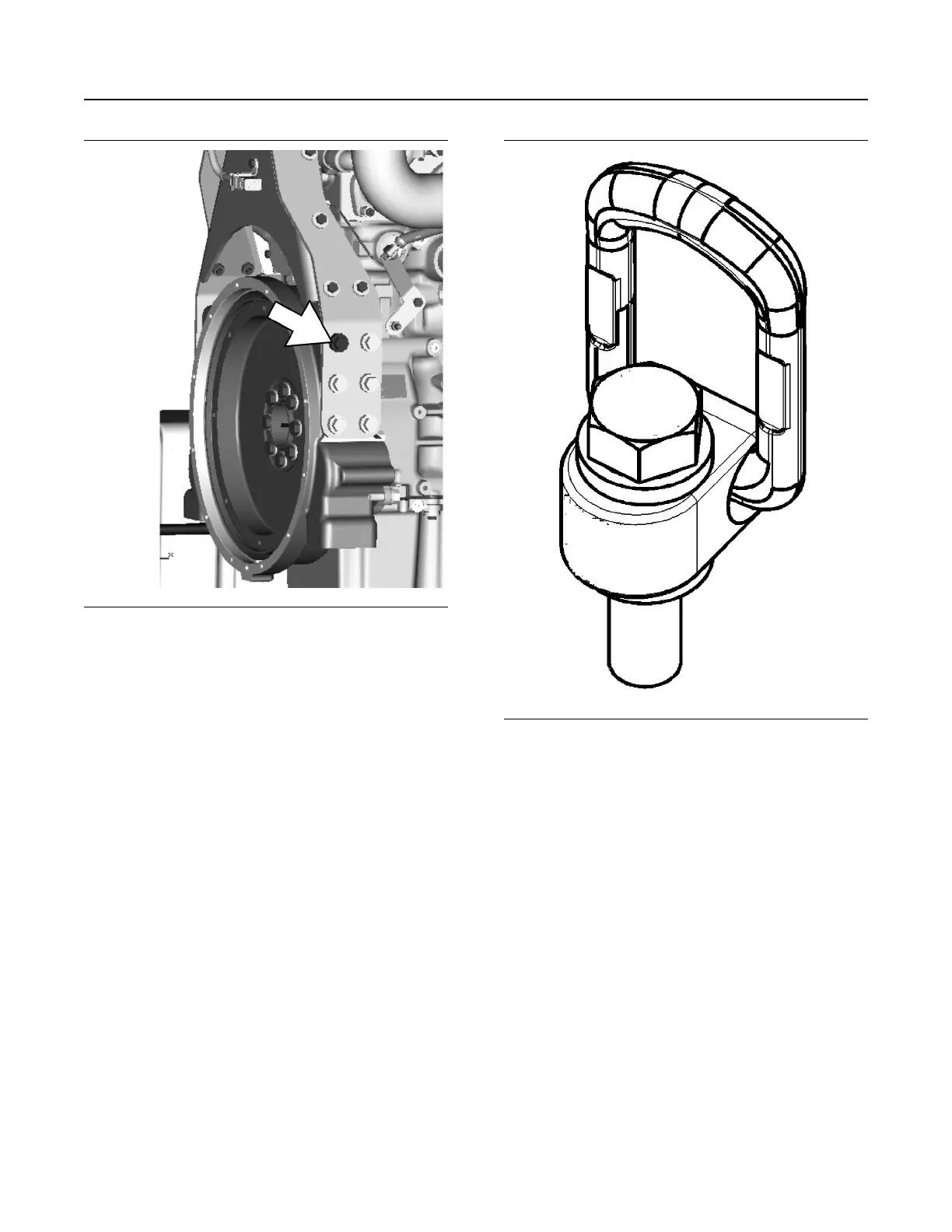

Illustration 27 g03391555
Typical example
Illustration 28 g03389702
load ring
When lifting the engine, with a factory-mounted CEM
(with or without a factory-mounted radiator) the
following procedure must be used.
1. Remove bolts shown in illustration 26 and
illustration 27 .
2. Install the load rings, refer to illustration 28 . Install
the load rings to position shown in illustration 26
and illustration 27 . Tighten load ring bolts to a
torque of 370 N·m (272 lb ft).
3. Use load rings and front engine lifting eye as the lift
point for lifting the engine, CEM, and radiator.
4. A suitable spreader bar must be used when lifting
the engine, CEM, and radiator.
5. Remove any ATAAC lines, air cleaners, or other
attachments that would otherwise interfere with
the lift chains or other lifting devises.
