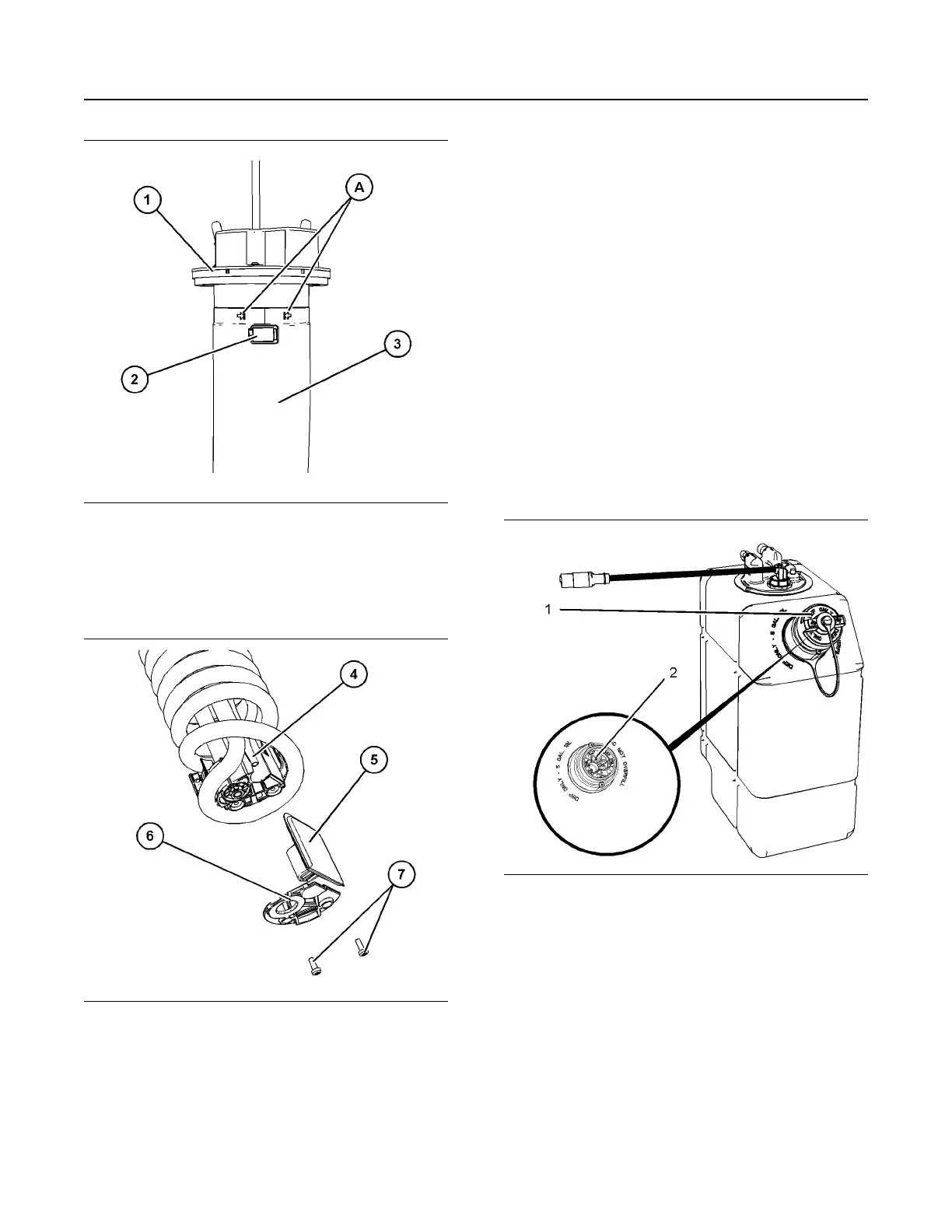

Illustration 75 g06159487
1. Note the location of clamp (2). The clamp (2) must
be between the marked location (A).
2. Loosen clamp (2) and remove outer filter (3) from
DEF tank header (1) and discard outer filter (3).
Illustration 76 g06159580
3. Remove screws (7) and remove retaining plate (6).
4. Remove DEF filter (5) from pickup tube (4) and
discard the used filter (5).
5. Install new filter (5) onto pickup tube (4).
6. Install the retaining plate (6) and install screws (7).
Tighten screws (7) to a torque of 1.1 N·m
(9.8 lb in).
7. Install new outer filter (3) onto DEF tank header
(1). Ensure that the clamp (2) is located between
the location points (A).
8. Tighten clamp (2) to a torque of 4.5 N·m (40 lb in).
9. Install the DEF tank header, refer to Disassembly
and Assembly, Manifold (DEF Heater) - Remove
and Install.
i07495337
Diesel Exhaust Fluid
(Emission Related
Component) - Fill
Illustration 77 g03714036
Typical example
Ensure that the correct specification Diesel Exhaust
Fluid (DEF) is used. Ensure the cleanliness of the
DEF, refer to this Operation and Maintenance
Manual, “Fluid Recommendations” for more
information.
Care should be taken when dispensing DEF. Spills
should be cleaned immediately. All surfaces should
be wiped clean and rinsed with water.
DEF that has been split will crystallize when the
water within the liquid evaporates. Split DEF will
attack paint and metal. If DEF is split, wash the area
with water.
