Operation Section
Lifting and Storage
i10082784
Product Lifting
NOTICE
Always inspect lifting eyebolts and all other lifting
equipment for damage before performing any lifting.
Never bend the eyebolts and the brackets. Never
perform product lifting if components are damaged.
Only load the eyebolts and the brackets under ten-
sion. Remember that the capacity of an eyebolt is
less as the angle between the supporting members
and the object becomes less than 90 degrees.
Read all the information within product lifting before
any lifting is attempted. Ensure that the correct set of
lifting eyes for the assembly to be lifted have been
selected.
Use a hoist to remove heavy components. Use an
adjustable lifting beam to lift the assembly. All
supporting members (chains and cables) should be
parallel to each other. The chains and cables should
be perpendicular to the top of the object that is being
lifted.
Note: Do not lift the engine and radiator together.
The engine must be lifted separately and the radiator
must be lifted separately.
Engine Lifting

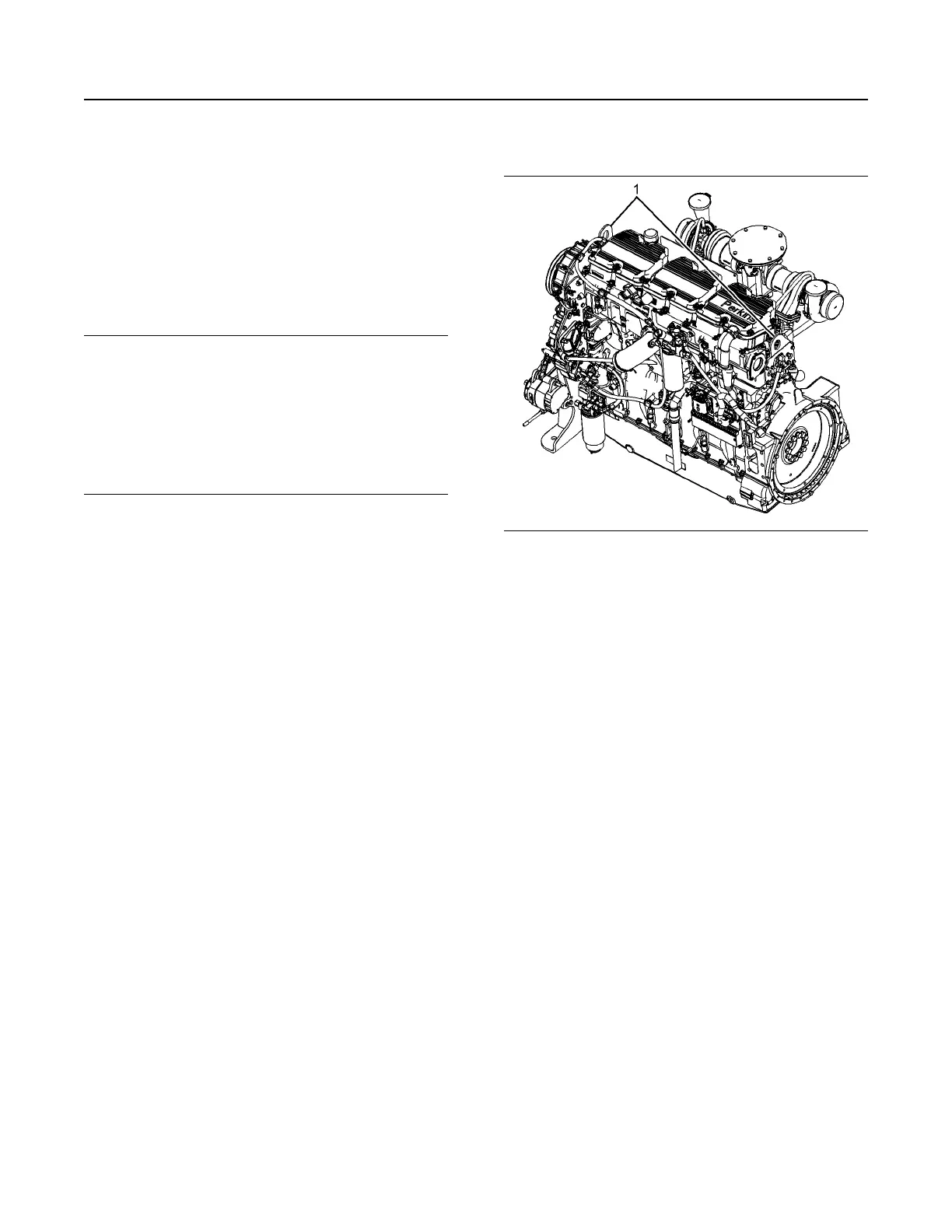

Illustration 26 g03858045
Typical example
(1) Engine lifting eyes
30
SEBU9074-06
Operation Section
Lifting and Storage
