Replace the dirty air cleaner elements with clean air
cleaner elements. Inspect the gasket or the seal of
the air cleaner element for damage. Maintain a
supply of suitable air cleaner elements for
replacement purposes.
Dual Element Air Cleaners
The dual element air cleaner contains a primary air
cleaner element and a secondary air cleaner
element.
The primary air cleaner element should be replaced
at least one time per year.
The secondary air cleaner element is not serviceable.
Refer to the OEM information for instructions to
replace the secondary air cleaner element.
When the engine is operating in environments that
are dusty or dirty, air cleaner elements may require
more frequent replacement.

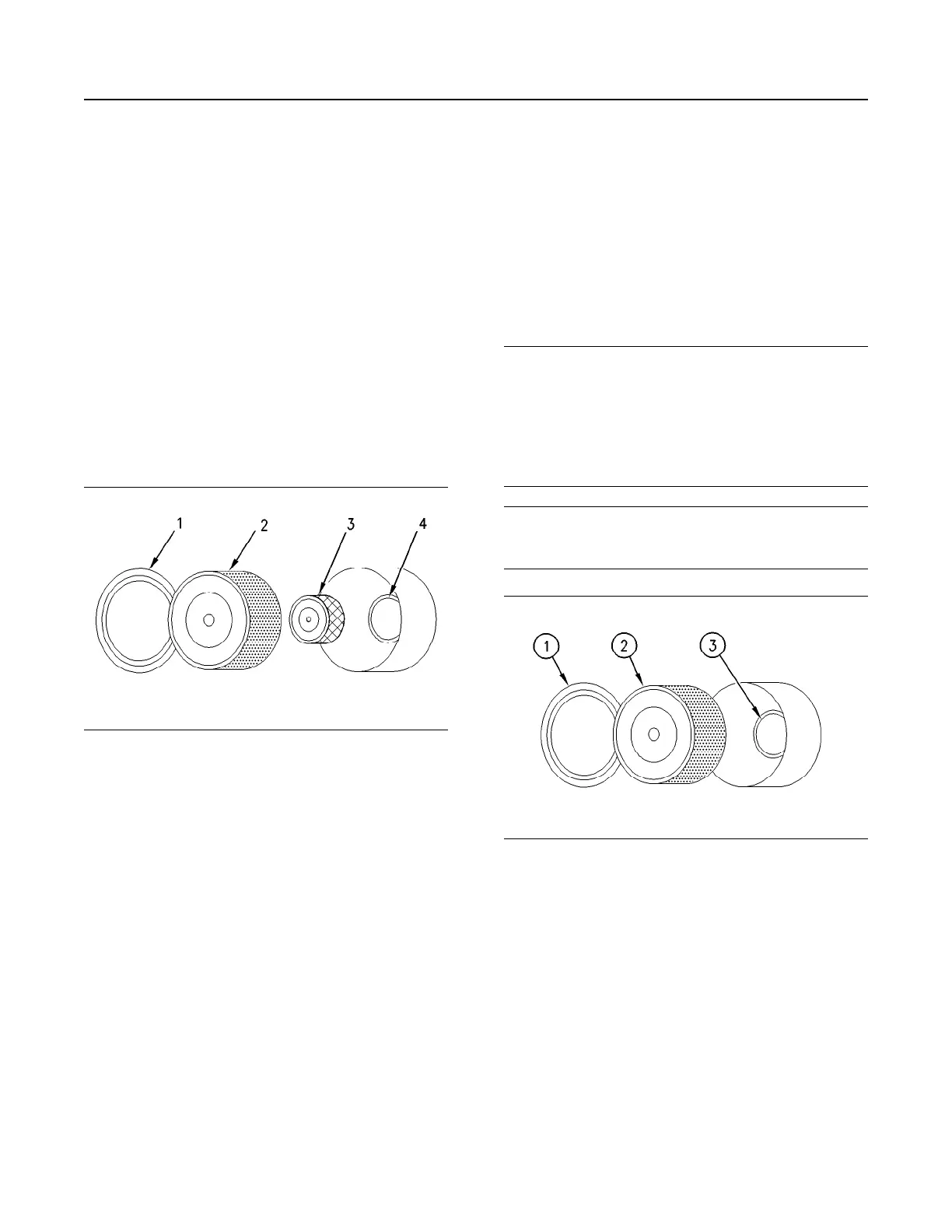

Illustration 49 g00736431
(1) Cover
(2) Primary air cleaner element
(3) Secondary air cleaner element
(4) Air inlet
1. Remove the cover. Remove the primary air cleaner
element.
2. Cover the air inlet with tape to keep out dirt.
3. Ensure that the inner body of the air cleaner is
clean and free from dirt. Ensure that the inner of
the air cleaner cover is clean and free from dirt.
4. Remove the tape from the air inlet. Install the
secondary air cleaner element. Install a new
primary air cleaner element.
5. Install the air cleaner cover.
6. Reset the air cleaner service indicator.
i10085284
Engine Air Cleaner Element
(Single Element) - Replace
Perform the Operation and Maintenance Manual,
“Engine Air Cleaner Service Indicator - Inspect”
procedure before performing the following procedure.
NOTICE
Never run the engine without an air cleaner element
installed. Never run the engine with a damaged air
cleaner element. Do not use air cleaner elements
with damaged pleats, gaskets or seals. Dirt entering
the engine causes premature wear and damage to
engine components. Air cleaner elements help to pre-
vent airborne debris from entering the air inlet.
NOTICE
Never service the air cleaner element with the engine
running since this will allow dirt to enter the engine.
Illustration 50 g00310664
(1) Air cleaner cover
(2) Air filter element
(3) Air inlet
1. Remove air cleaner cover (1) and remove air filter
element (2).
2. Cover air inlet (3) with tape or a clean cloth so that
debris cannot enter the air inlet.
3. Ensure that the inner body of the air cleaner is
clean and free from dirt. Ensure that the inner of
the air cleaner cover (1), is clean and free from
dirt.
4. Remove the seal from the opening of the air inlet.
5. Install a new air filter element (2).
6. Install air cleaner cover (1).
SEBU9074-06
87
Maintenance Section
Engine Air Cleaner Element (Single Element) - Replace
