2806D

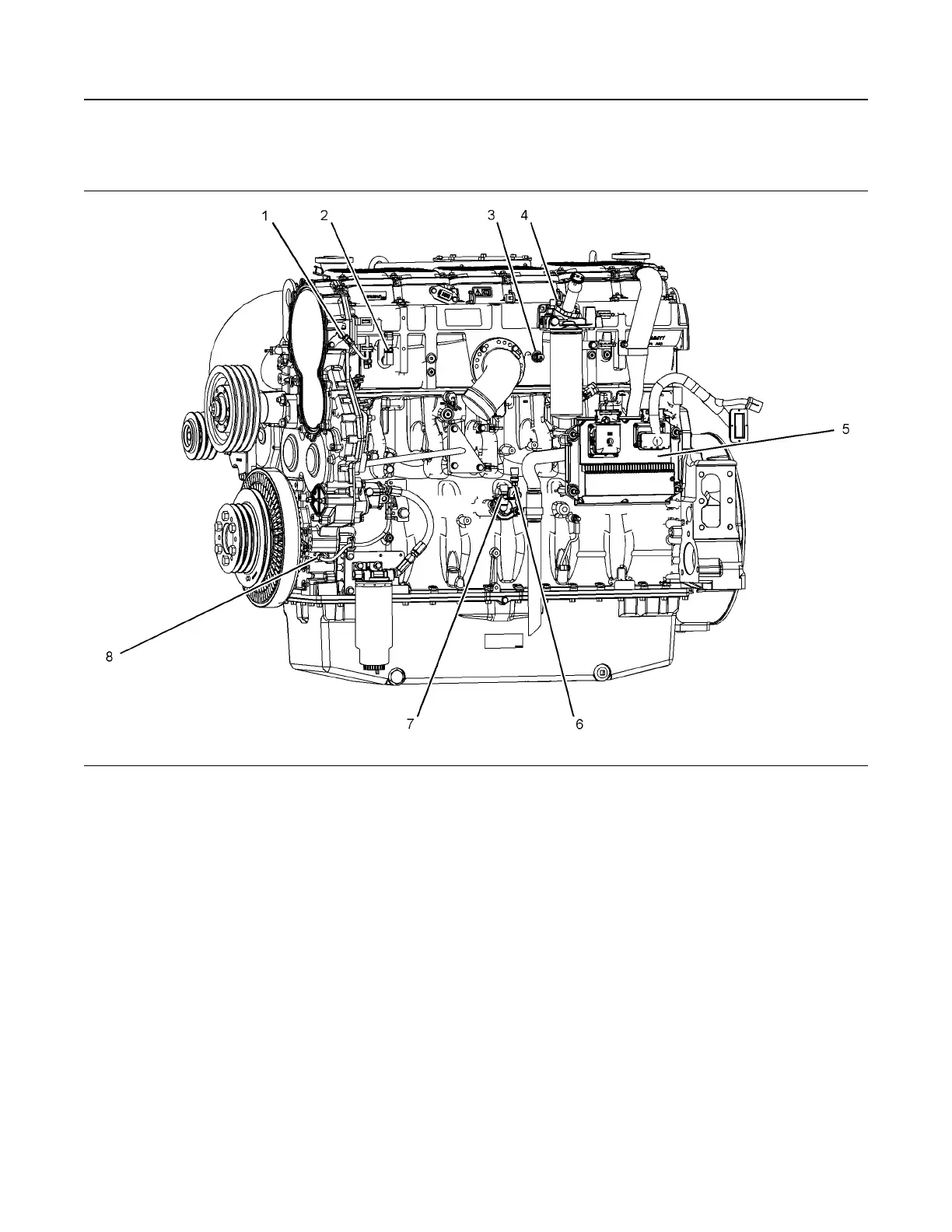

Illustration 31 g03858144
(1) Camshaft speed timing sensor
(2) Intake manifold pressure sensor
(3) Intake manifold temperature sensor
(4) Fuel temperature sensor
(5) Electronic Control Module (ECM)
(6) Oil pressure sensor
(7) Atmospheric pressure sensor
(8) Crankshaft speed timing sensor
38
SEBU9074-06
