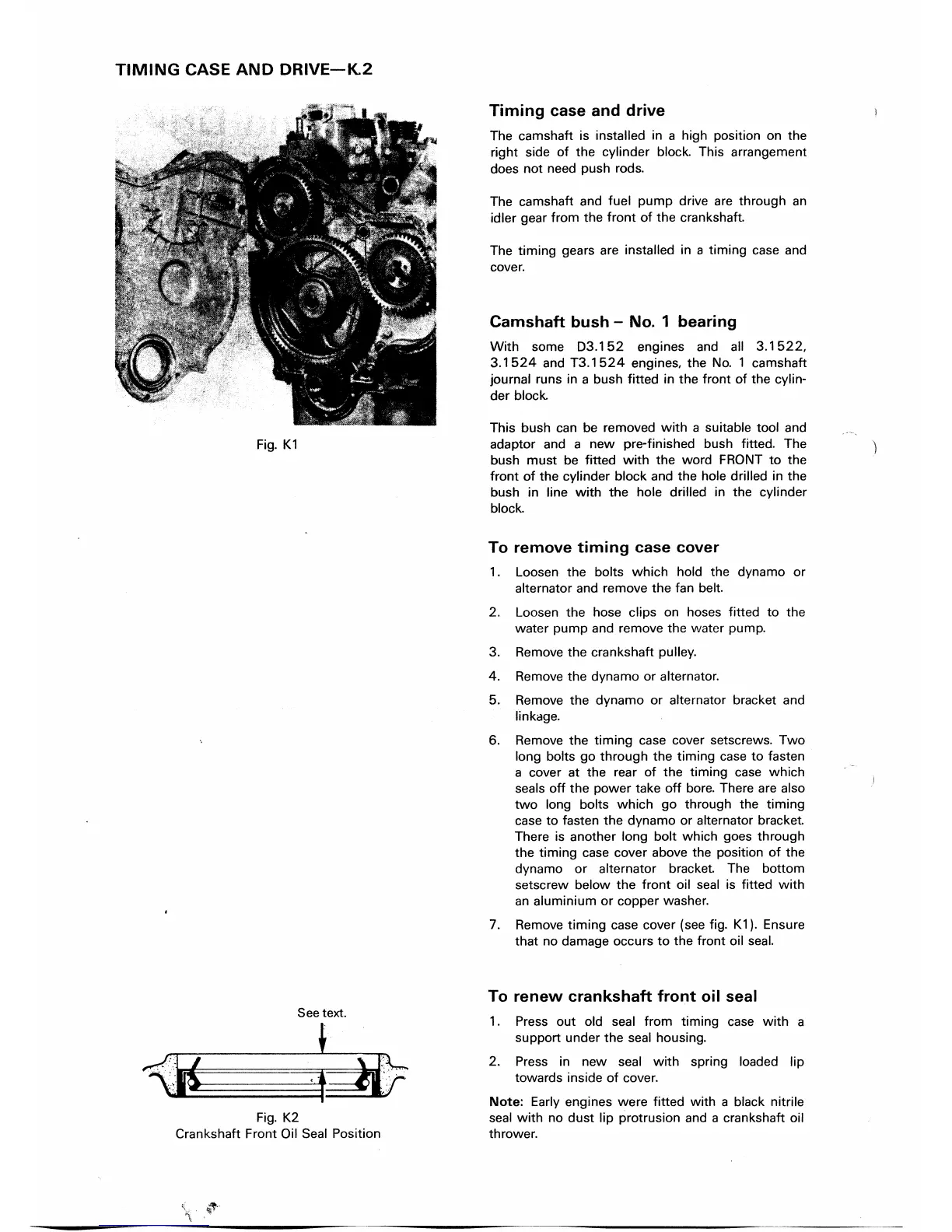

Perkins 3HD46 - Camshaft Bush - No.1 Bearing; To Remove Timing Case Cover; To Renew Crankshaft Front Oil Seal
