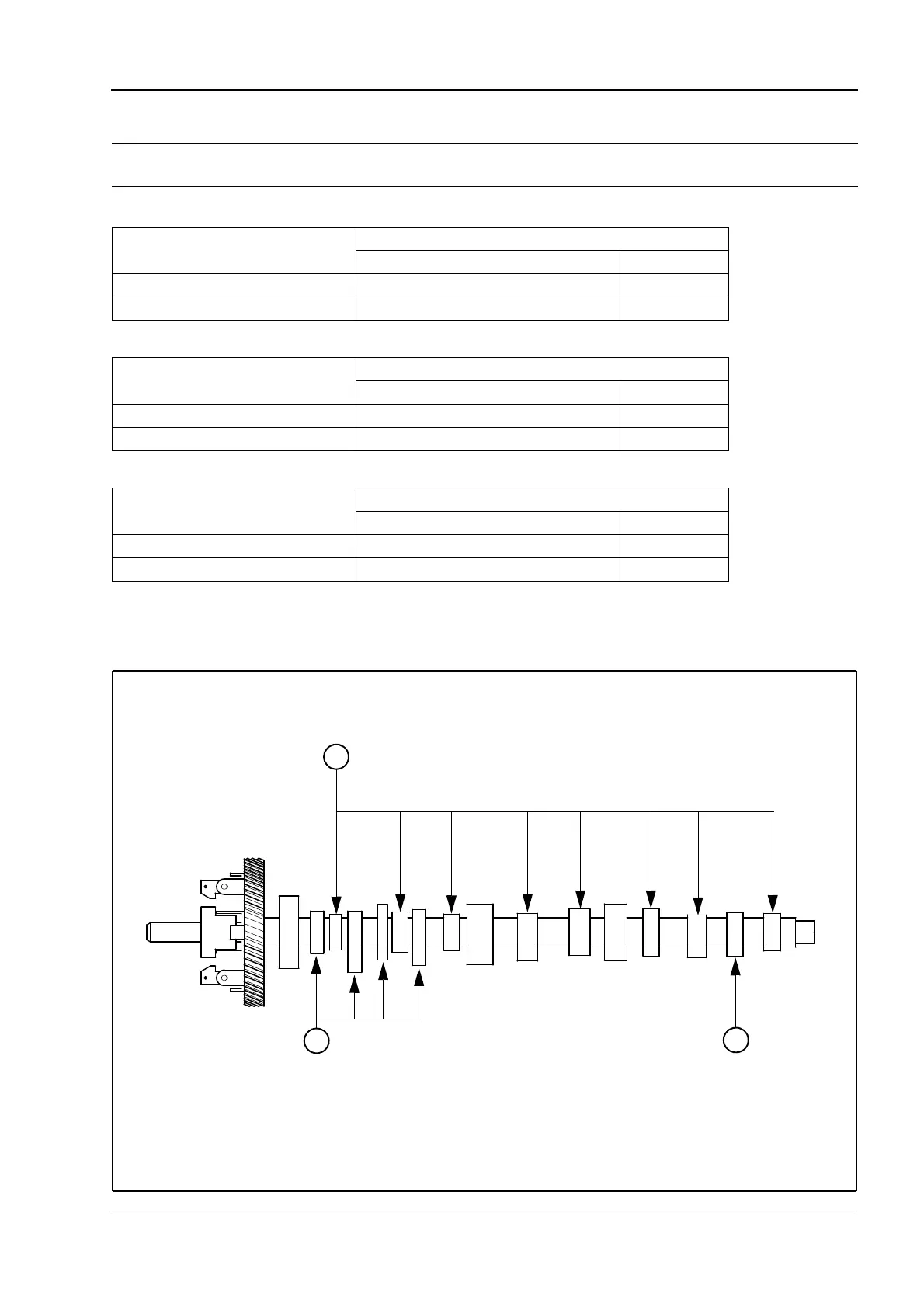

Camshaft assembly
To inspect Operation 6-7
Height of cam for inlet and exhaust valves (1).
Height of cam for fuel feed pump (2).
Height of cam for fuel injection pump (3).
Engine Height mm (in)
Standard Service limit
403C-11 26,955 - 27,010 (1.06120 - 1.06340) 26,5 (1.0276)
403C-15, 404C-22 and 404C-22T 34,065 - 34,120 (1.34114 - 1.34330) 33,7 (1.3270)
Engine Height mm (in)
Standard Service limit
403C-11 27.900 - 28,000 (1.09842 - 1.10240) 27,0 (1.0630)
403C-15, 404C-22 and 404C-22T 31,900 - 32,000 (1.25590 - 1.25984) 30,0 (1.1810)
Engine Height mm (in)
Standard Service limit
403C-11 39,900 - 40,100 (1.57090 - 1.57870) 39,8 (1.5669)
403C-15, 404C-22 and 404C-22T 41,940 - 42,060 (1.65120 - 1.65590) 41,8 (1.6450)
1
3
2
