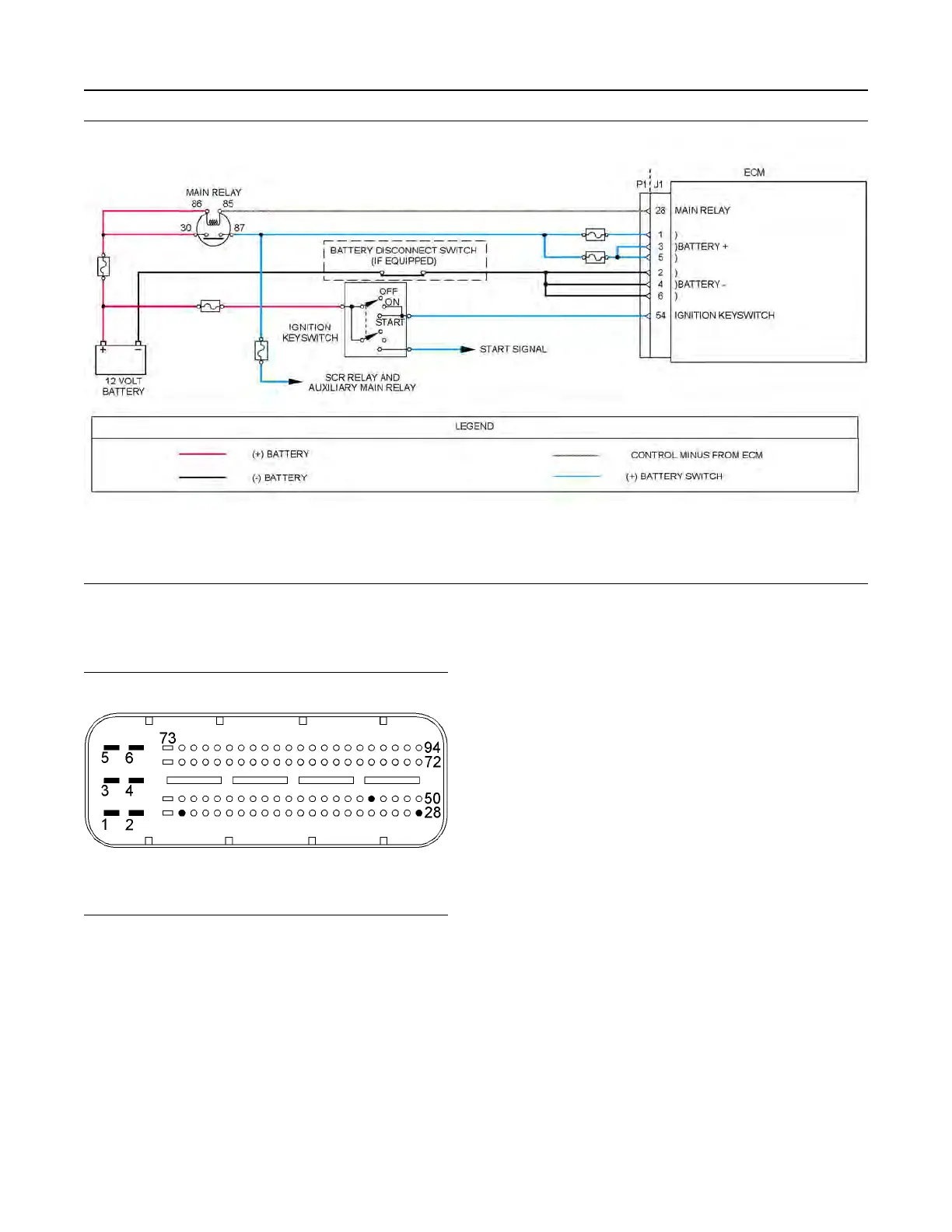

Illustration 24 g03722958
Schematic diagram for the electrical power supply circuit
Not all connectors are shown. Refer to the Electrical Schematic for the application.
Illustration 25 g03722982
View of the pin locations on the P1 connector for the
electrical power supply circuit
(1) Battery+
(2) Battery ground
(3) Battery+
(4) Battery ground
(5) Battery+
(6) Battery ground
(8) Start Signal
(28) ECM main relay
(54) Ignition key switch
UENR0612 129
