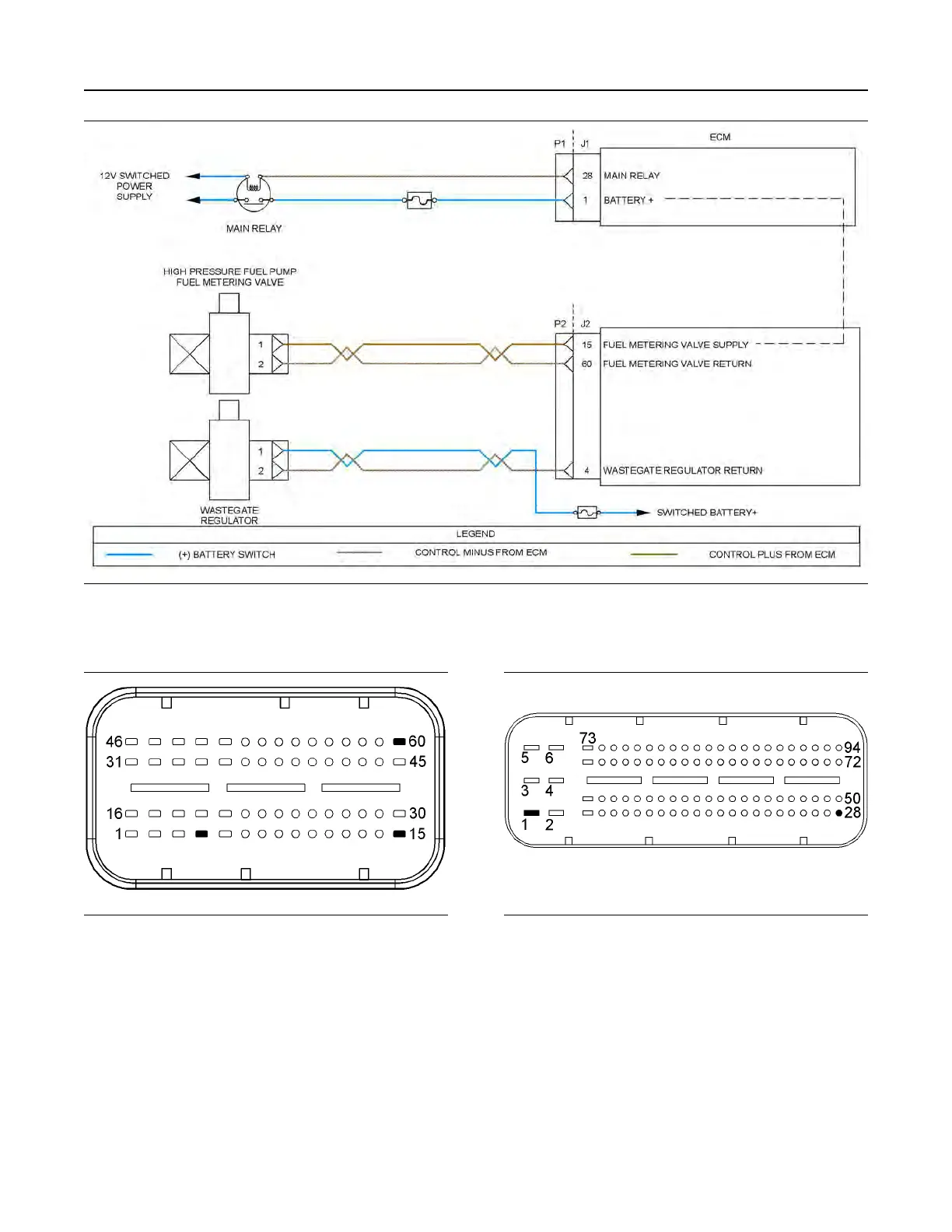

Illustration 60 g03626007
Schematic diagram for the solenoid valves
Not all connectors are shown. Refer to the appropriate Electrical Schematic.
Illustration 61 g02351359
View of the pin locations on the P2 connector for the
solenoid valves
(4) Wastegate regulator return
(15) Fuel metering valve supply
(60) Fuel metering valve return
Illustration 62 g03086696
View of the pin locations on the P1 connector
UENR0612 201
Circuit Tests
