User’s Handbook, TPD 1285E, Issue 2 11
2
3.152
Engine views 2
Introduction
Perkins engines are built for specific applications and the views which follow do not necessarily match your
engine specification.
Location of engine parts

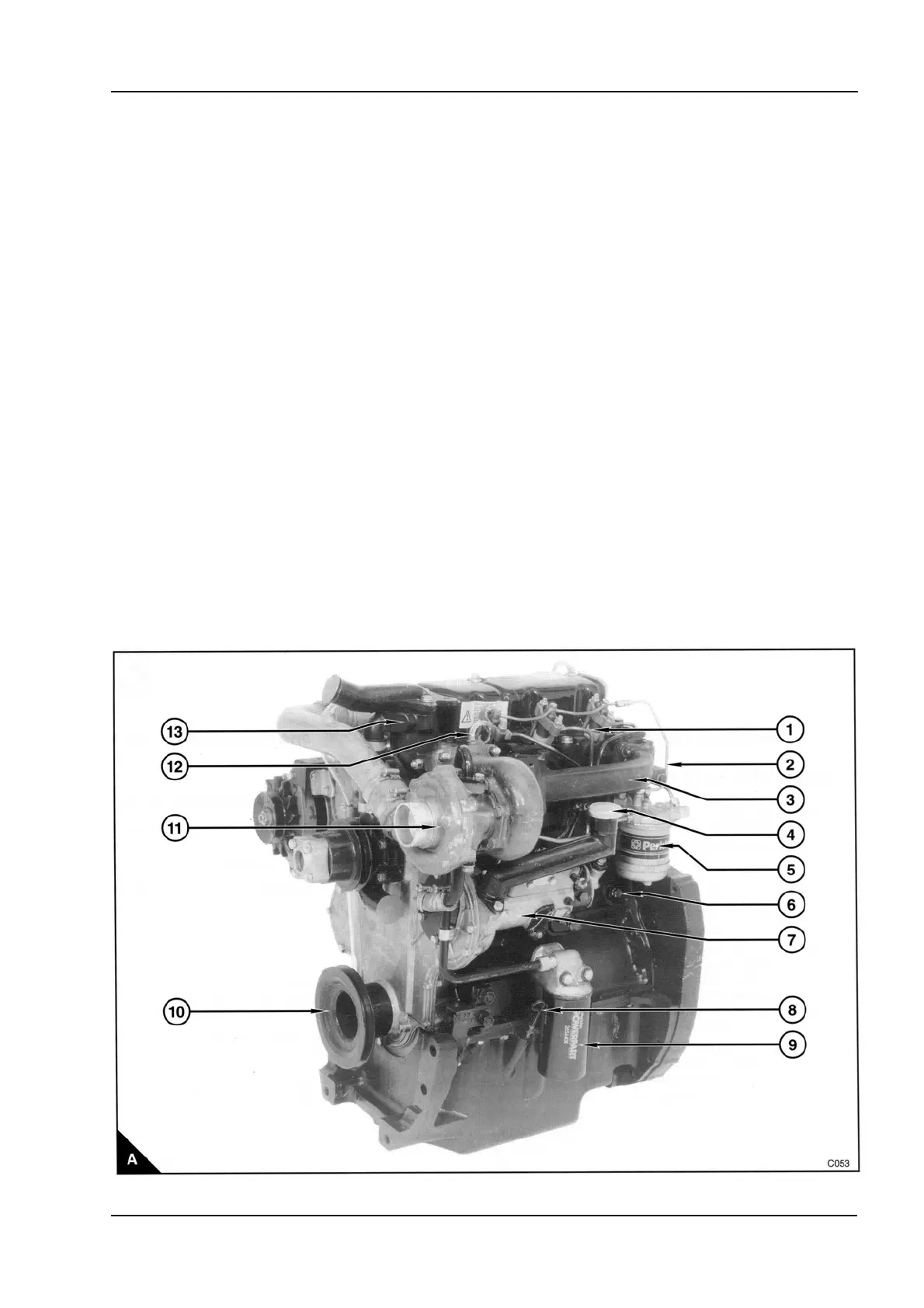

Front and left side of T3.1524 engine
1Atomiser
2 Leak off pipe for atomiser
3 Exhaust manifold
4 Filler cap for lubricating oil
5 Fuel filter
6 Drain plug for cylinder block
7 Fuel injection pump
8 Dipstick for lubricating oil
9 Lubricating oil filter
10 Crankshaft pulley
11 Turbocharger
12 Front lift bracket
13 Thermostat housing
