4.1.9.2 Mounting panel holder

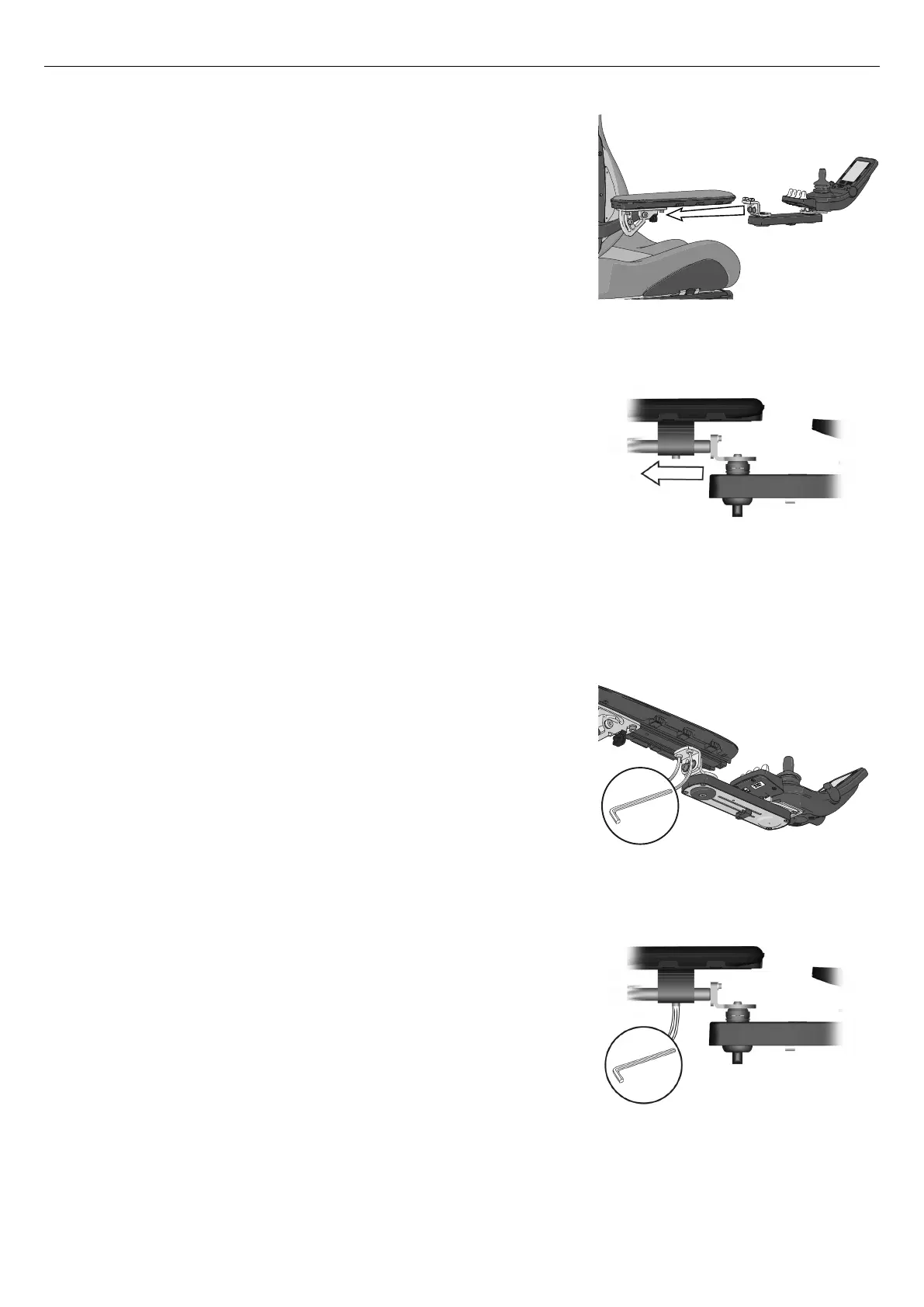

Figure 114. The new parallel panel holder is attached
by two nuts into the UniTrack.
Figure 115. The earlier model of the parallel panel
holder and the rotational panel holder is attached by a
clamp.
1. Push in the panel holder either in through the clamp or into the
UniTrack.
Figure 116. The screws position on the new model of
the parallel panel holder.
Figure 117. The screw’s position on the earlier model of
the parallel panel holder and the rotational panel
holder.
2. Tighten the screw(s).
