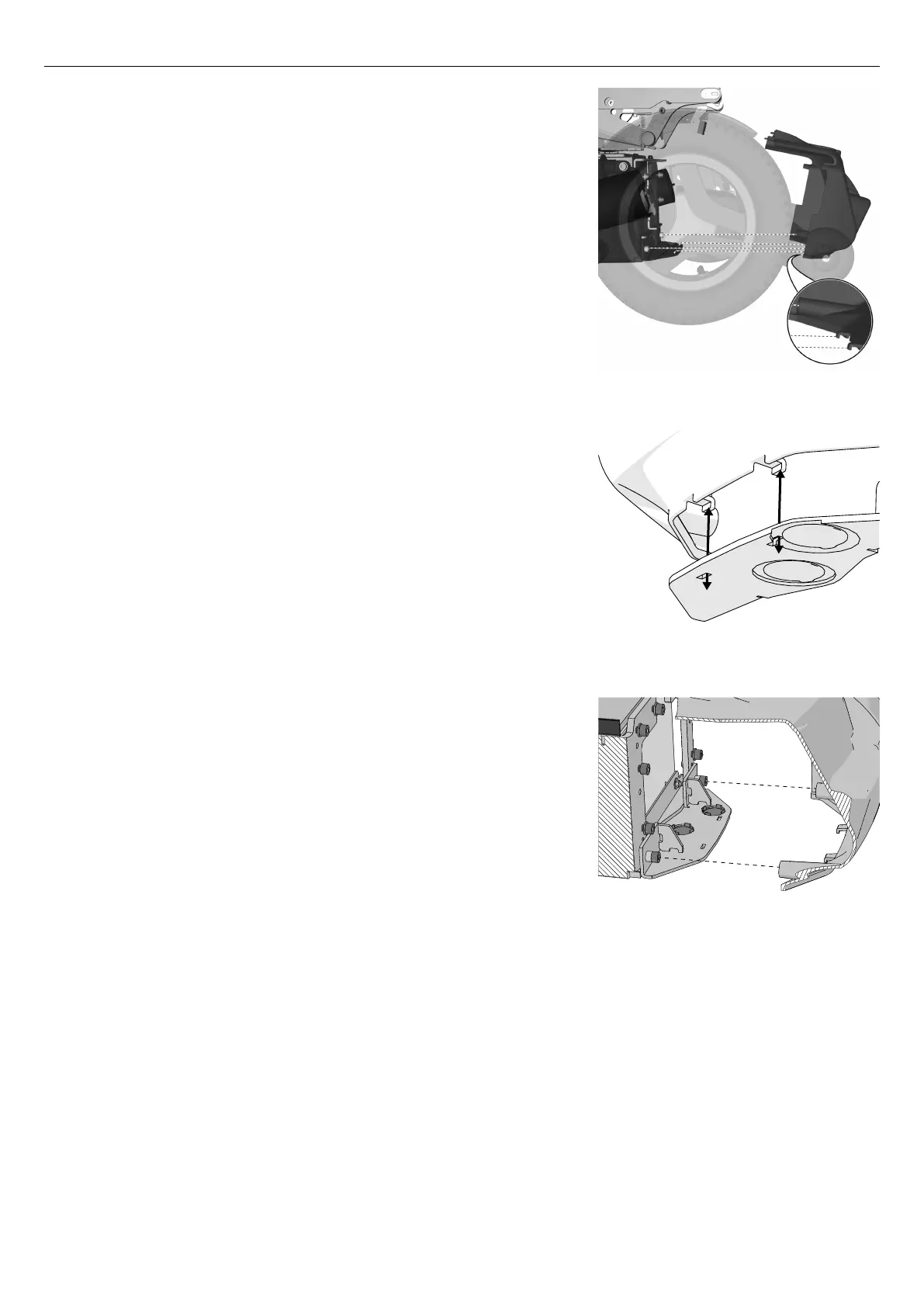

Figure 188. Front cover.
Figure 189. Snap hooks and its fixing point in the lower
part of the chassis.
Figure 190. The lower screws of the chassis have to
match the holes in the extrudes of the front cover.
5. Mount the front chassis cover on to the chassis. Note that the cover
is mounted with snap hooks on the lower part of the chassis.
Position the cover making sure the fixing points are correctly
positioned with the corresponding holes of the chassis.
