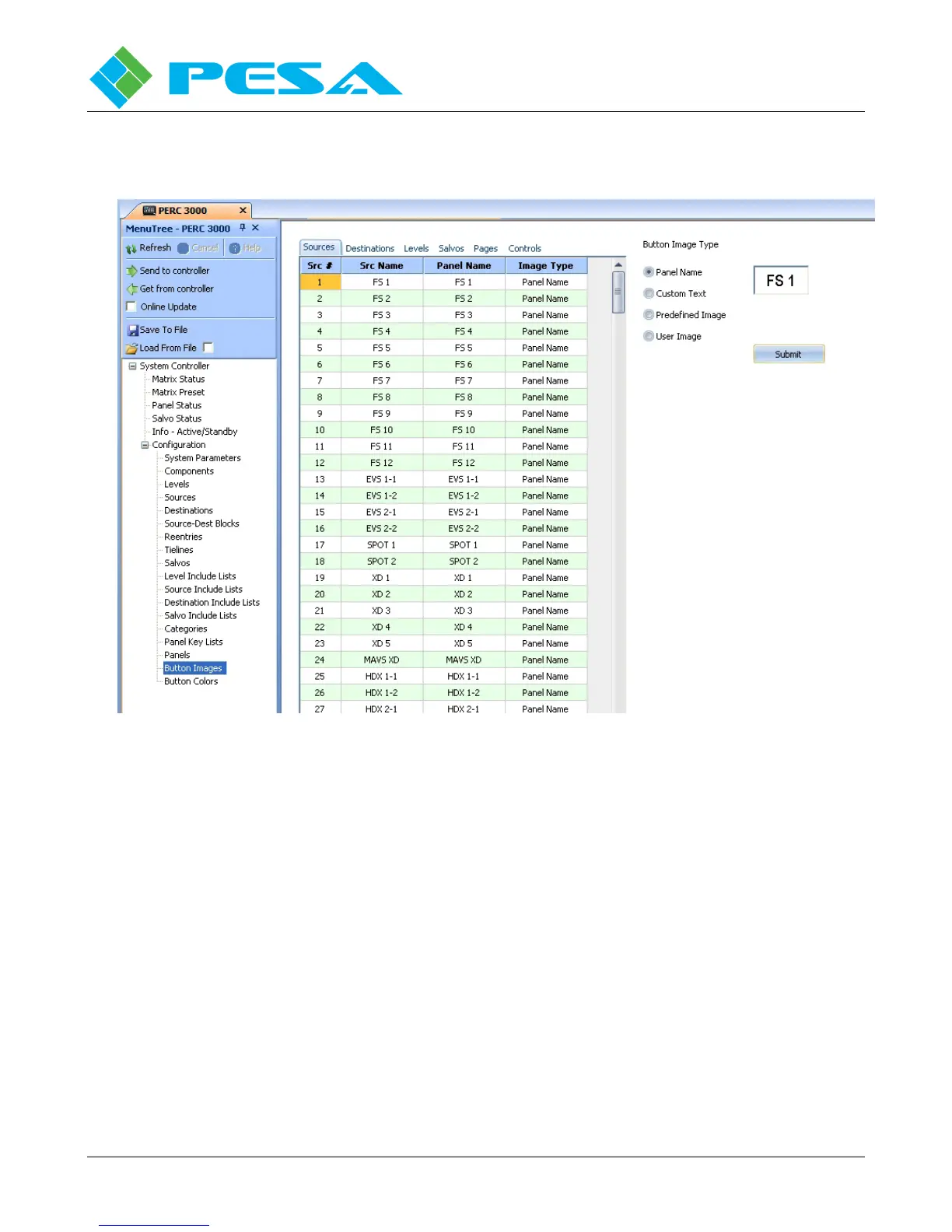

Figure 4-5 is an illustration of the Cattrax Button Images configuration page. Labels and graphics are
assigned to each system resource through entries in the configuration grid.
Figure 4-5 Button Images Page
By default the panel name given to every system resource during configuration of that resource is the
text label that is displayed by the Smart 32 panel key. For example, refer to the grid in Figure 4-5 and
look at the row for Source #1. The Panel Name is FS 1, and is the label entered during source group
configuration for display on remote control panels. By default, this label would also be the text that
would appear on any Smart 32 panel key assigned to Source #1, unless it is changed through the Button
Images configuration grid.
The tabs across the top of the Button Images grid select the type of system resource displayed in the
listing for label editing.
Through the configuration grid any system resource may be assigned one of the following label types
for the Smart 32 panel keys by clicking the radio buttons to the right of the grid:
To Next Page
