Smart 32 Remote Control Panel User Guide
Publication 81-9059-0727-0, Rev. A
April 2014
Proprietary Information of
PESA 2-4

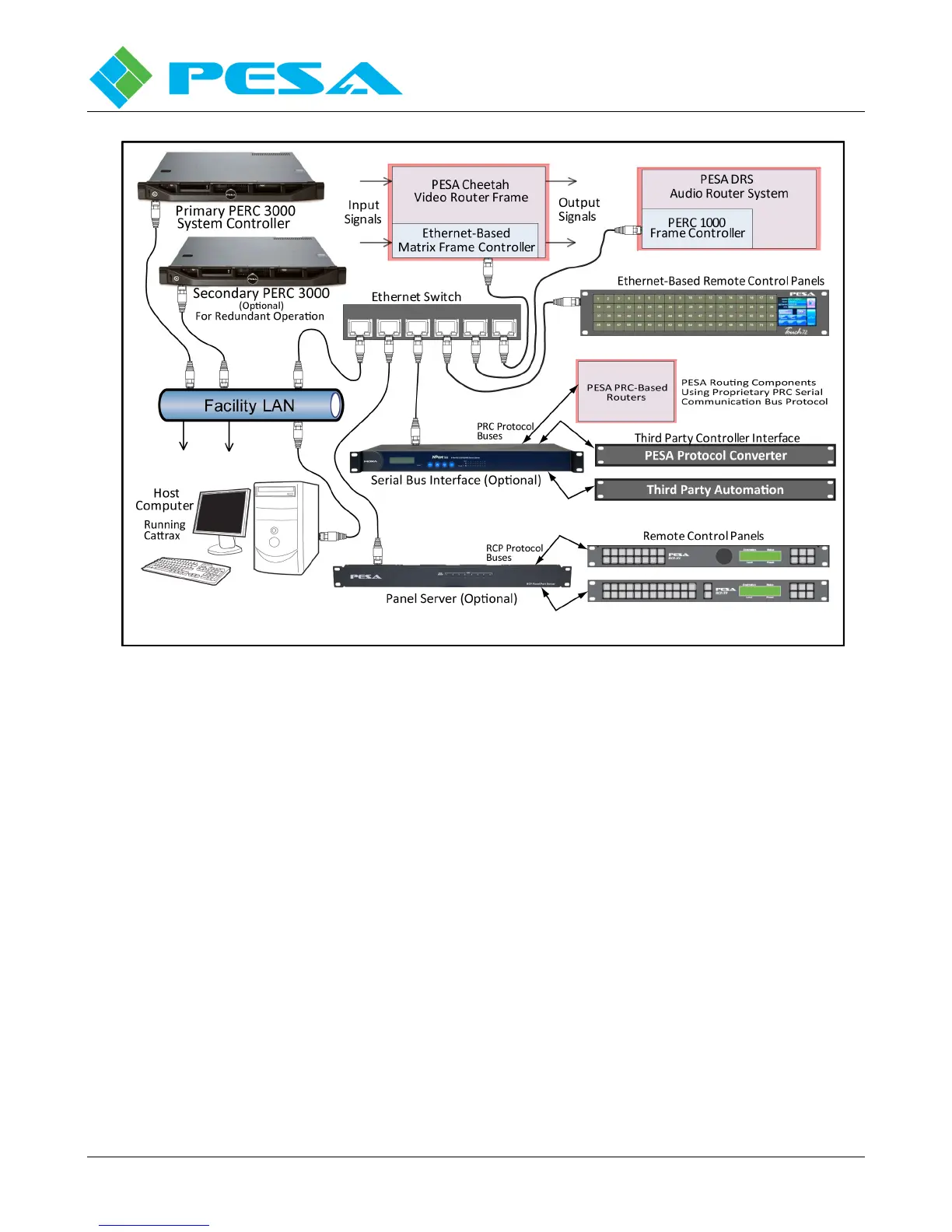

Figure 2-3 Typical PERC3000 System Controller Installation
2.5 S
PECIFICATIONS
GENERAL
Mounting 1RU
Push-buttons 32, Multi-color Illuminated with Programmable Text and
Graphics
NETWORK
Communications Port Ethernet
POWER
Voltage Requirements +12VDC (Power Supply Included)
MECHANICAL
Physical Dimensions 19"W X 3"D X 1.75"H
ENVIRONMENTAL
Temperature 0°C to 40°C
Humidity 20% to 90% (Non-Condensing)
