PDC & Voltage Converter
111

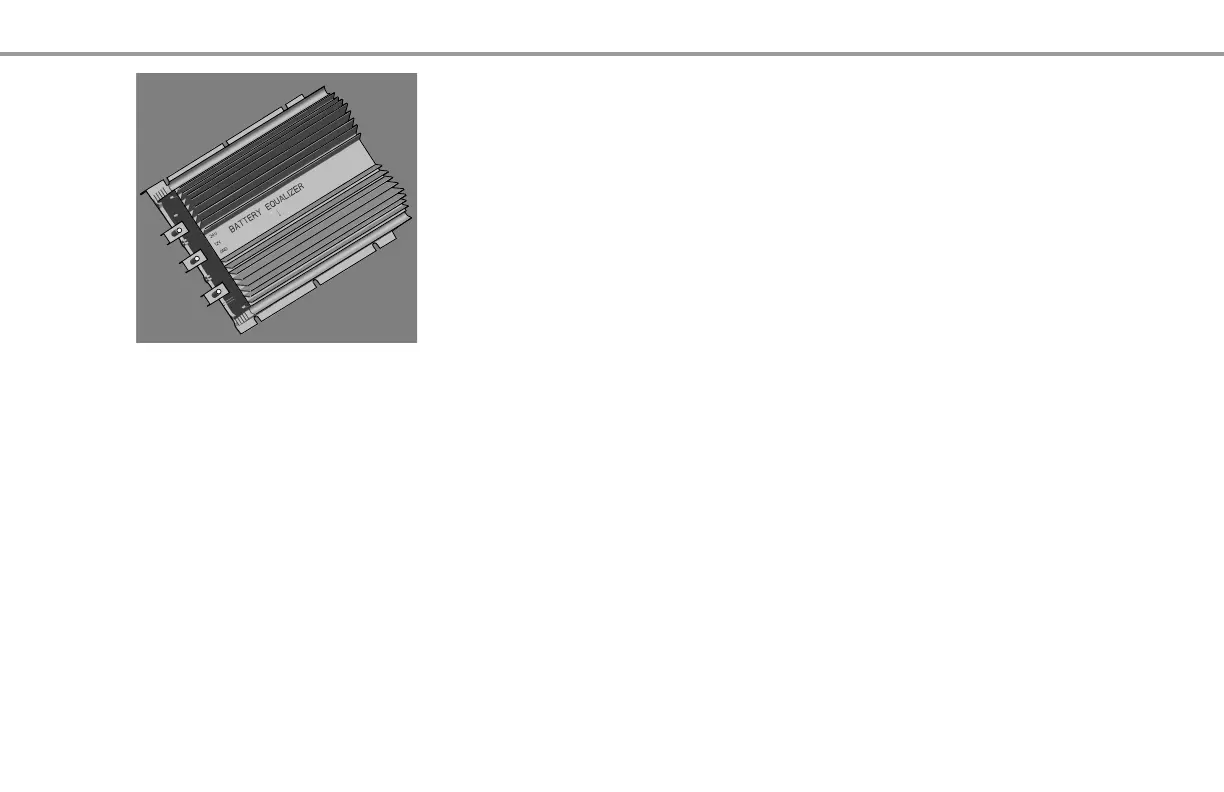

Voltage converter.
The Voltage converter provides 24V to cab systems. It is located in the battery box.
Below to the PDC support. The Voltage converter has the following Specifications:
- 12V input - 24V output
- Input current: 90 amps
- Output current: 45 amps
- Temperature range: -40C to+85C
