Emergency Repairs
149
REPLACING BULBS
- Do not touch the glass of the halogen lamps with bare fingers. If necessary, this
glass can be cleaned with a cloth, which has been dampened with industrial
alcohol (methylated spirits).
- When fitting a new bulb, make sure that the lugs on the bulb holder engage in
the slots of the reflector.
Dipped beam
1. Tilt the cab forwards.

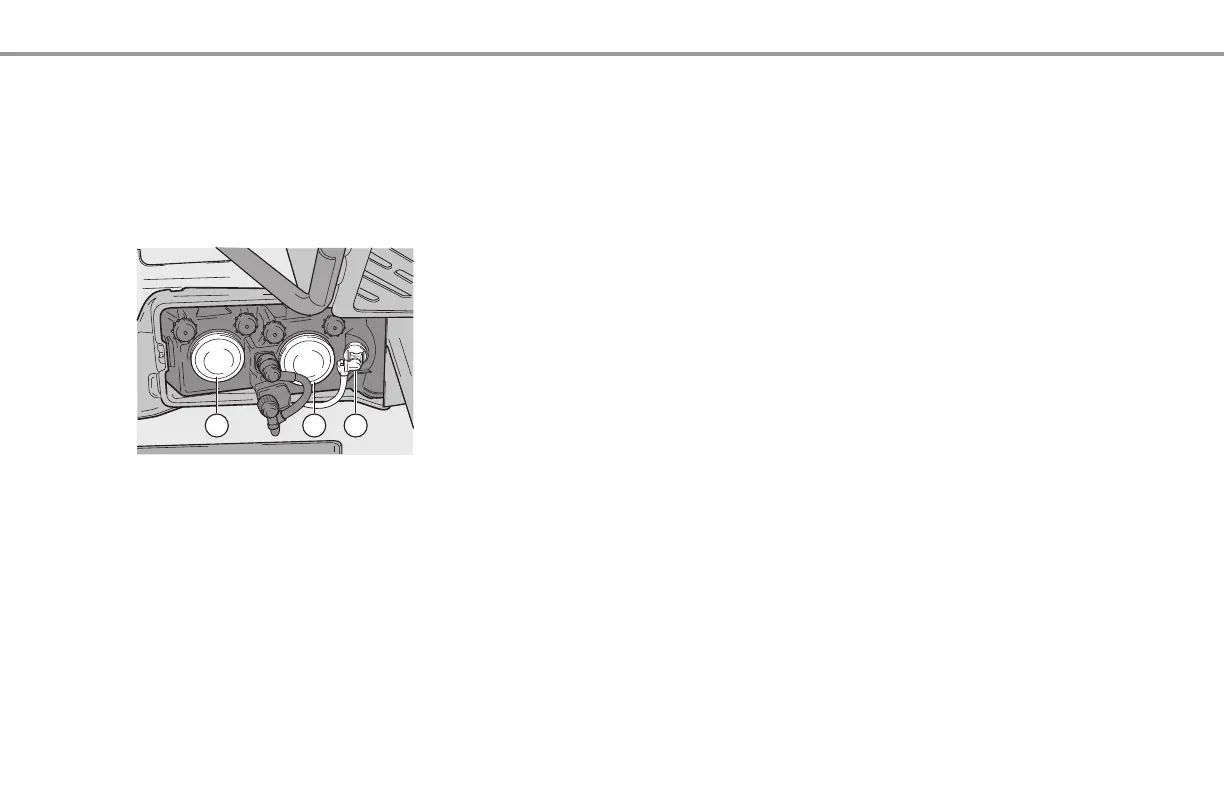

2. Detach the rubber cover (2) from the rear of the headlamp unit.
3. Detach the spring clamp and pull the bulb away from the reflector.
4. Detach the double plug from the rear of the bulb.
Parking light
1. Tilt the cab forwards.
2. Detach the rubber cover (2) from the rear of the headlamp unit.
3. Pull the holder of the parking light from the headlamp unit.
4. Pull the bulb out of the bulb holder.
Main beam
1. Tilt the cab forwards.
2. Detach the rubber cover (1) from the rear of the headlamp unit.
3. Detach the spring clamp and pull the bulb away from the reflector.
4. Detach the spring clamp and pull the bulb away from the reflector.
