Master Display
79

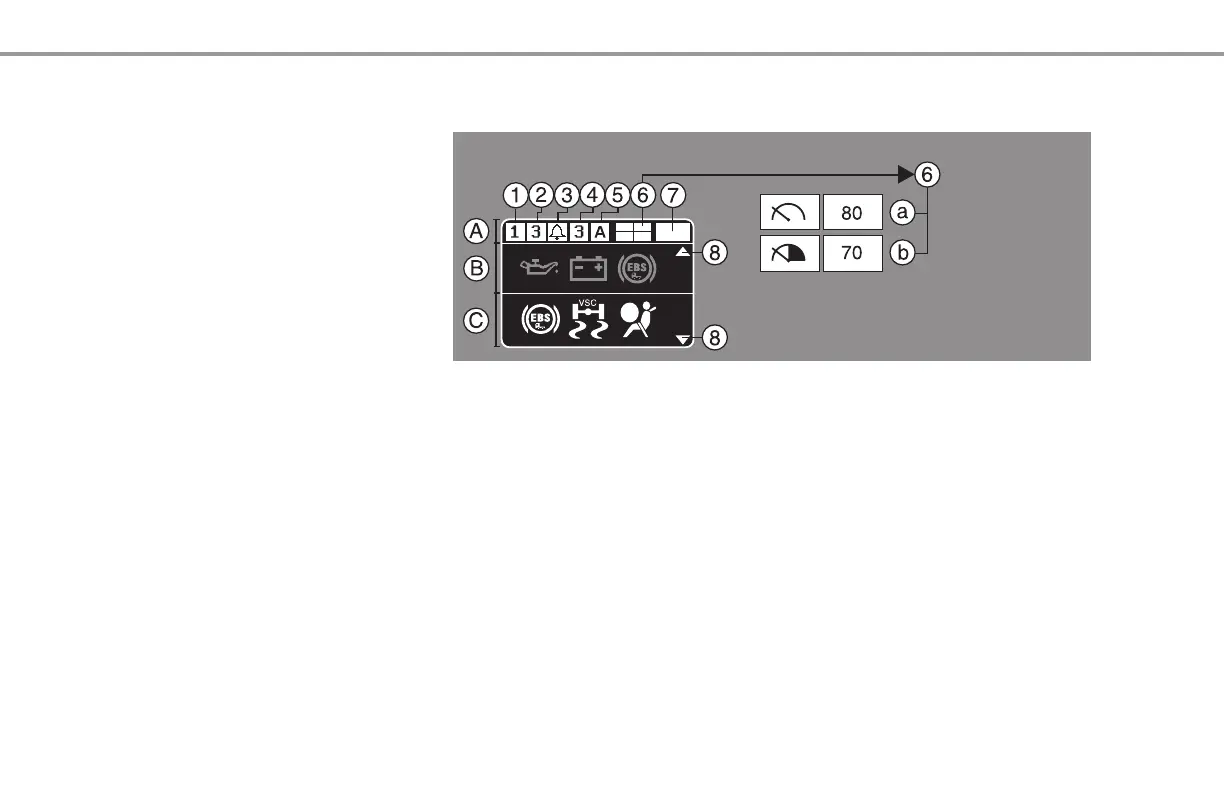

LAYOUT OF MASTER DISPLAY
A Indication bar
B Information screen (yellow and red)
C Information screen (yellow)
1 Number of active red warnings
2 Number of active yellow warnings
3 Alarm function engaged
4 Gear engaged, AS Tronic Lite or automatic gearbox (AGC-A)
5 Speed set
6 Vehicle speed setting functions (review)
7 (unused)
D001192-3
