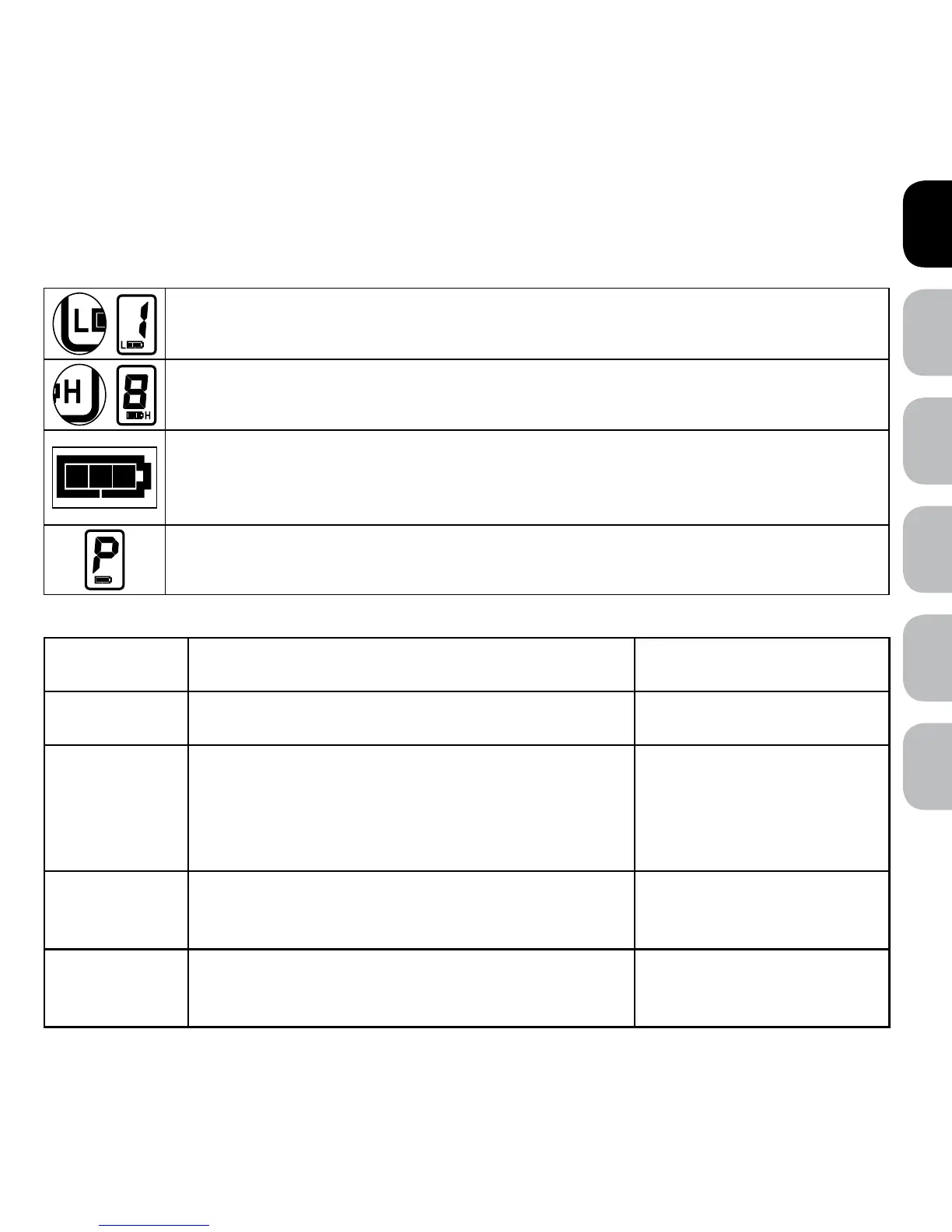

Handheld Remote Digital Display
The Digital Display stays on for approximately 30 seconds after a button press. After 30 seconds with no button
press, the display shuts off and the Handheld Remote goes into battery conservation mode. Pressing any button
will turn the display back on. The symbols on the Digital Display are explained below.
L indicates low Vibration Levels ranging from 1-8, and appears in the lower left corner
before the battery indicator.
H indicates high Vibration Levels ranging from 1-8, and appears in the lower right corner
after the battery indicator.
The battery indicator provides constant awareness of your battery’s power level. Divided
into segments, 3 segments indicate high battery power, 2 segments indicate medium, 1
segment indicates low (replace soon) and no segments indicate critically low (replace
immediately). Note: Red LED will flash 3 times every 5 seconds to indicate low battery.
Indicates Handheld Remote is ready to pair with Receiver Collar. Press Vibration Down
Button (–) through the Vibration Levels to display and begin pairing.
Handheld Remote LED – Function and Response
Button Button Function Handheld Remote LED
Response
Tone Button
(Green)
Delivers audible Tone to Receiver Collar. Green LED on for length of
button press
Vibration Button
(Blue)
Delivers Vibration Stimulation to the Receiver Collar
based on the current level shown on the Digital Display.
A safety time-out will be triggered if the button is held
for more than 10 consecutive seconds. The safety time-
out will end when the button is released.
Red LED on for length of button
press
Note: Red LED will also
flash 3 times every 5 seconds
to indicate low battery.
+2 Boost Button
(Red)
Delivers Vibration Stimulation at 2 levels higher than the
current setting. (Can not exceed level 8 High and will also
time-out after button is held for 10 continuous seconds.)
Red LED on for length of button
press
Tone and Vibration
Buttons held
simultaneously
Transmits Pairing command to Receiver Collar when “P”
is visible on the Digital Display.
Orange LED on for length of
button press
