Pettibone Michigan, L.L.C. OWNER/OPERATOR MANUAL MODEL 6036/6044/8036/8044
Inclinometer
This instrument shows the degree of deviation (left
or right) of the machine frame relative to horizon-
tal ground level. It helps you keep your load level
when operating over uneven terrain. The frame is
approximately level when the inclinometer indi-
cates 0° deviation. (#6)

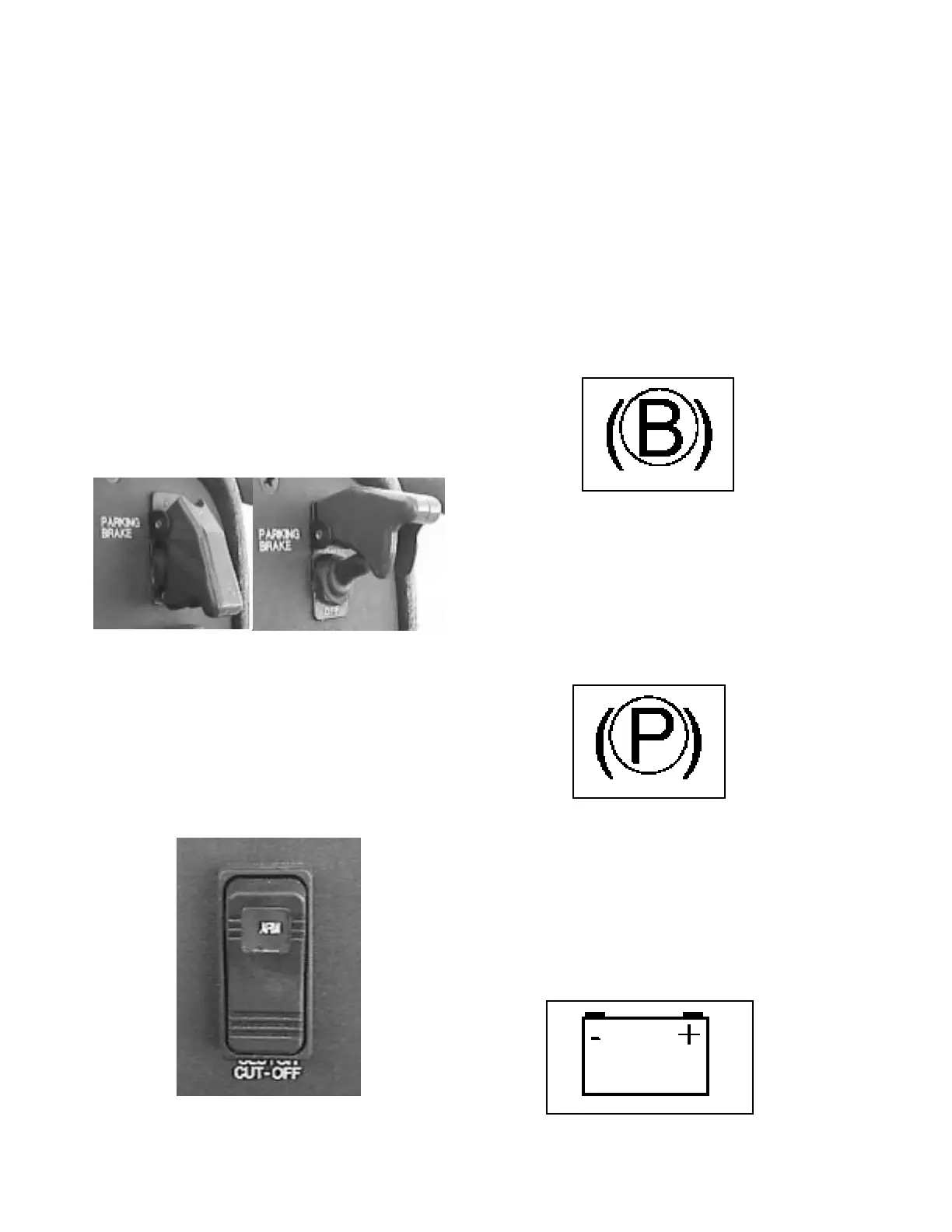

Parking Brake Switch
This switch activates the parking brake when it is
in the up postition, and releases it when it is in the
down position. (#7)
BRAKE OFF BRAKE ON
Clutch Cut-off Switch
This toggle switch disengages the transmis-
sion when you apply the service brake pedal.
Use this feature to increase the speed of your
hydraulic functions. (#8)
Axle Lock Warning Light
This light glows orange when the vehicle is in
axle lock mode (boom above 25°, parking brake
on). (#9)
Brake Oil Pressure Warning Light
This light glows red and activates a warning
buzzer if there is low hydraulic brake oil pressure.
(Normally, light should not come on at engine
start-up). (#10)
Low Voltage Warning Light
This light glows red and activates a warning
buzzer if there is a malfunction of the charging
system. (Light should come on at engine start-up
and go out when engine is revved.) (#12)
Park Brake Indicator Light
This light glows red when the parking brake is
applied and goes out when brake is released.
NOTE: Parking brake should be applied whenever
any maintenance is performed. (#11)
To Next Page
