Pettibone Michigan, L.L.C. OWNER/OPERATOR MANUAL MODEL 6036/6044/8036/8044
LUBRICATION
All grease fittings on the Extendo are to be serviced with NLGI-2 grease at the intervals specified on
Table IV., Scheduled Maintenance. Figures 18a. through 18e., used in conjunction with Table VII.,
Lubrications Points show the locations of the various grease fittings.

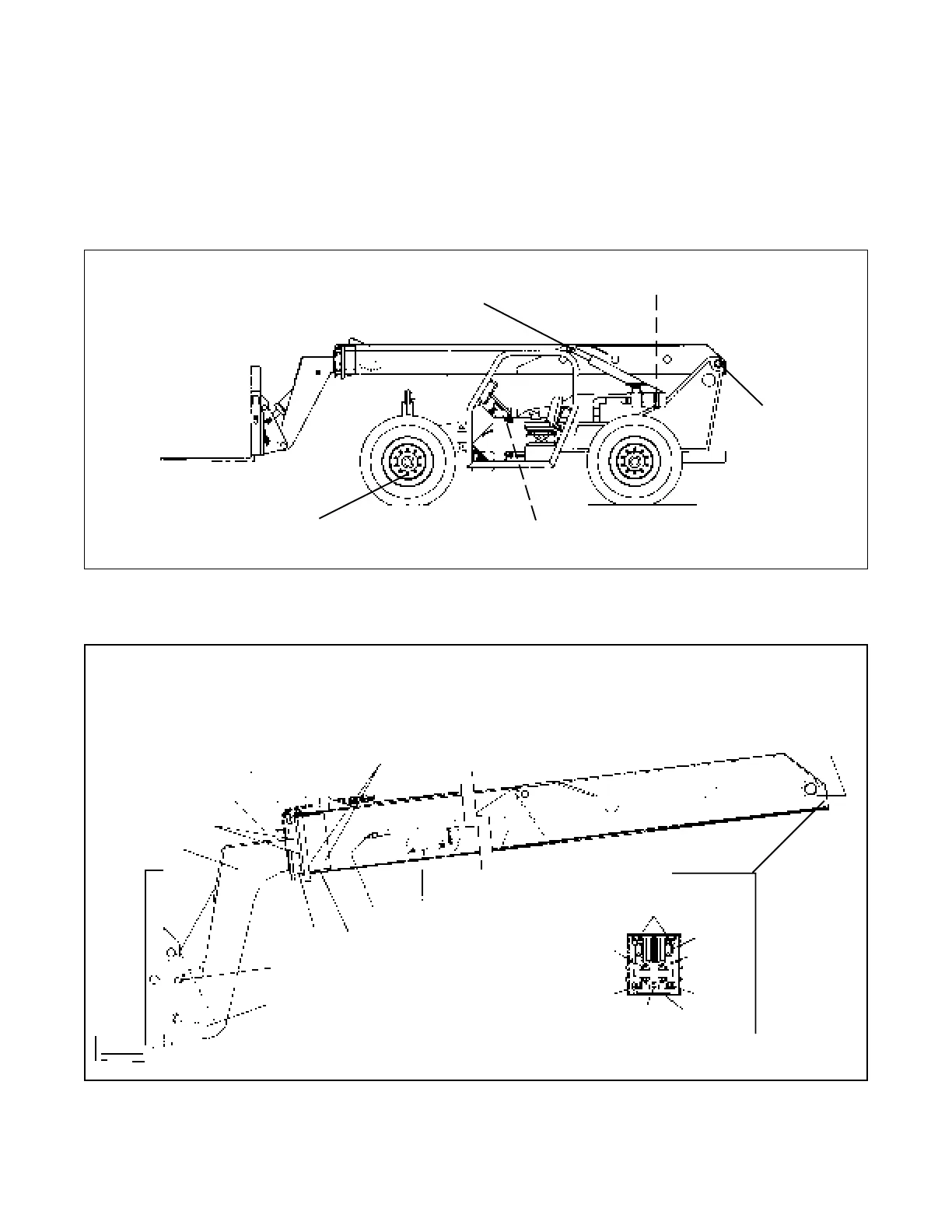

Figure 18a. Machine Lubrication Points
Figure 18b. Boom Lubrication Points.
1
2
5
3
4
3
View, Rear of Boom.
8
7
11
10
9
17
16
6
6
15
14
13
12
18
19
20
22
21
20
19
To Next Page
