S
ewing
10 - 5
●

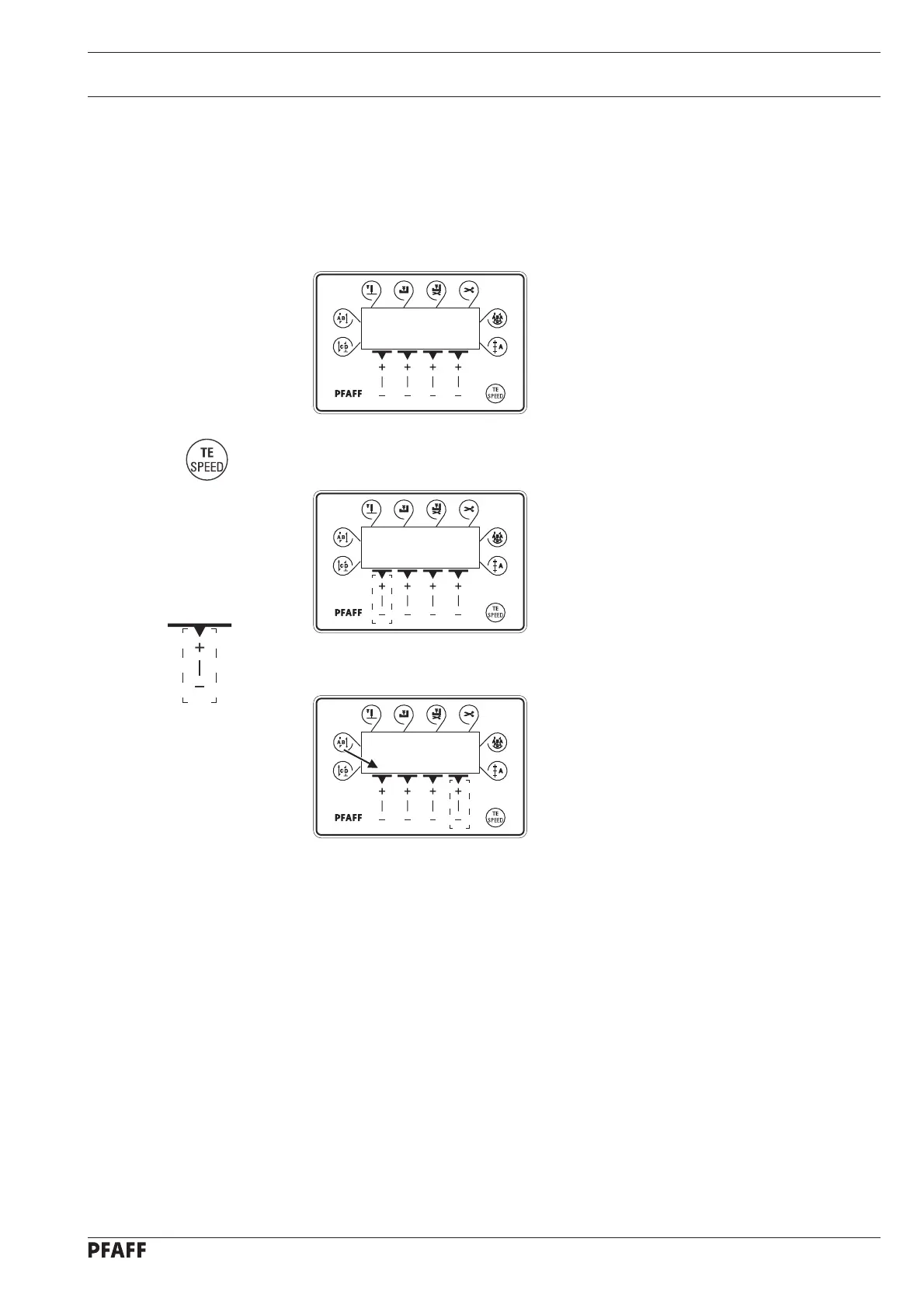

Press the
TE/Speed
key twice to call up the input mode.
●
By pressing the corresponding
+/- key
select the parameter group "798".
●
By pressing the corresponding
+/- key
select the desired user level:
"0" = operator level
A
"1" = technician level
B
"11" = service level
C
The selected user level is displayed on the screen. (see arrow)
TE
101
on
TE
798
0
ABCD
333
3
10
.05
Parameter settings
10
.05.01
Selecting the user level
●
Switch on the machine.
A
A
2 x
38
40
Table of Contents
Instruction Manual
1
Table of Contents
3
Contents
4
Safety
5
Directives
5
General Notes on Safety
5
Safety Symbols
6
Important Points for the User
6
Operating and Specialist Personnel
7
Operating Personnel
7
Specialist Personnel
7
Danger
8
Proper Use
9
Specifications
10
Versions and Subclasses
11
Disposal of the Machine
12
Transport, Packaging and Storage
13
Transport to the Customer
13
Transport Within the Customer's Premises
13
Disposal of the Packaging
13
Storage
13
Explanation of the Symbols
14
Controls
15
On/Off Switch
15
Keys on the Machine Head
15
Pedal
16
Lever for Lifting the Presser Foot
16
Feed Regulator Disk / Reverse Feed Lever
17
Knee Lever
17
Thread Trimmer -731/01
18
Switch for Thread Wiper -909/04
18
Control Panel
19
Screen Displays
19
Function Keys
19
Mounting and Commissioning the Machine
21
Mounting
21
Adjusting the Table-Top Height
21
Adjusting the V-Belt Tension
22
Mounting the Upper V-Belt Guard
22
Mounting the Lower V-Belt Guard
23
Mounting the Spool Holder
23
Connecting the Plug-In Connections and Earth Cables
24
Start Inhibitor
25
Mounting the Start Inhibitor
25
Checking the Start Inhibitor Function
25
Basic Setting of the Machine Drive Unit
26
Commissioning the Machine
27
Switching the Machine On/Off
27
Table Top Cutout
28
Mounting the Table Top
29
Preparation
30
Inserting the Needle
30
Winding the Bobbin Thread, Adjusting the Thread Tension
31
Removing/Inserting the Bobbin Case
32
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
32
Threading the Needle Thread / Adjusting the Needle Thread Tension
33
Entering the Start and End Backtacks
34
Sewing
35
Darning Program
36
Counted Seam
36
Error Messages
37
Explanation of the Error Signals
38
Parameter Settings
39
Selecting the User Level
39
Example of a Parameter Input
40
Liste der Parameter
41
Care and Maintenance
42
Cleaning the Machine
42
Topping up the Oil Tank
43
Wearing Parts
44
Postfach
46
