Adjustment
13 - 8
13
.05.06 Bottom feed dog height
Requirement
When feed dog 1 is at its highest point at stitch length setting "0" it must
1. be centred in the feed slot crosswise and in feeding direction
2. Rest on feed dog adjustment gauge 2 over its entire length.
● Set stitch length at "0" and feed dog 1 at its highest position
● Raise the presser foot.
● Place feed dog adjustment gauge 2 on the needle plate cutout with the arrow in sewing
direction so that it is flush with the front edge, and lower the presser foot onto it.
● Adjust feed bar 3 (screws 4) according to Requirement 1.
● Loosen screws 5 and 6.
● Adjust feed bar 3 or eccentric 7 according to Requirement 2.
● Tighten screws 5 and 6 firmly.
4
6
7
3
5

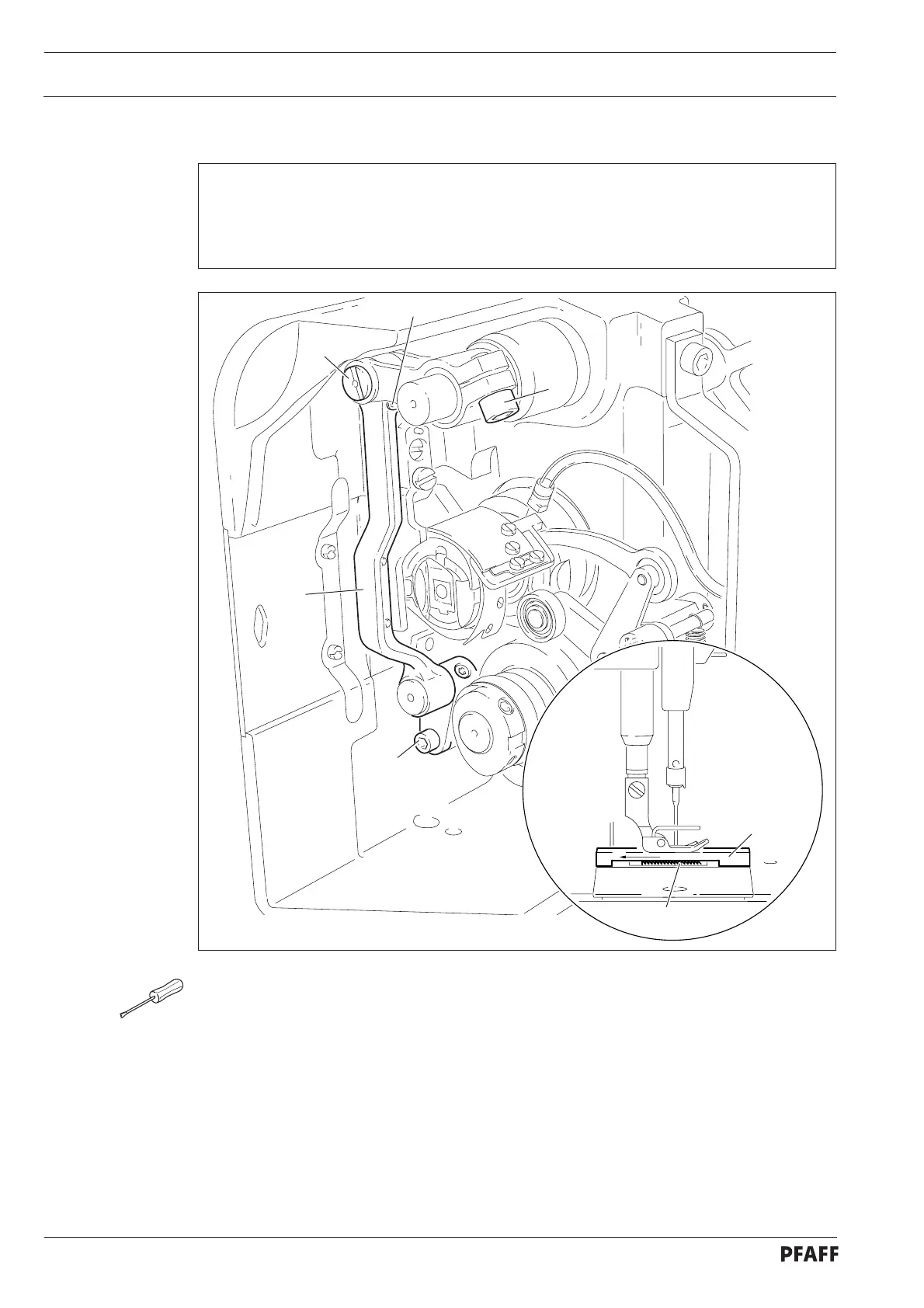

Fig. 13 - 07
57-34
2
1
