Adjustment
13 - 15
The adjustment is only necessary if the wick has been replaced.
When replacing the wick, make sure that the new wick is impregnated with oil.
ā Move the centrifugal disk 1 (screw 2) according to requirement 1.
ā Check requirement 2. If necessary, move centrifugal disk 1.
13.05.13 Hook lubrication
Requirement
1. The centrifugal disk 1 must be positioned 1.5 mm in front of the oil ring 3.
2. When the machine is running at full speed, after approx. 10 seconds a mark should be
made by a fine stripe of oil on the strip of paper placed over the needle plate cutout.

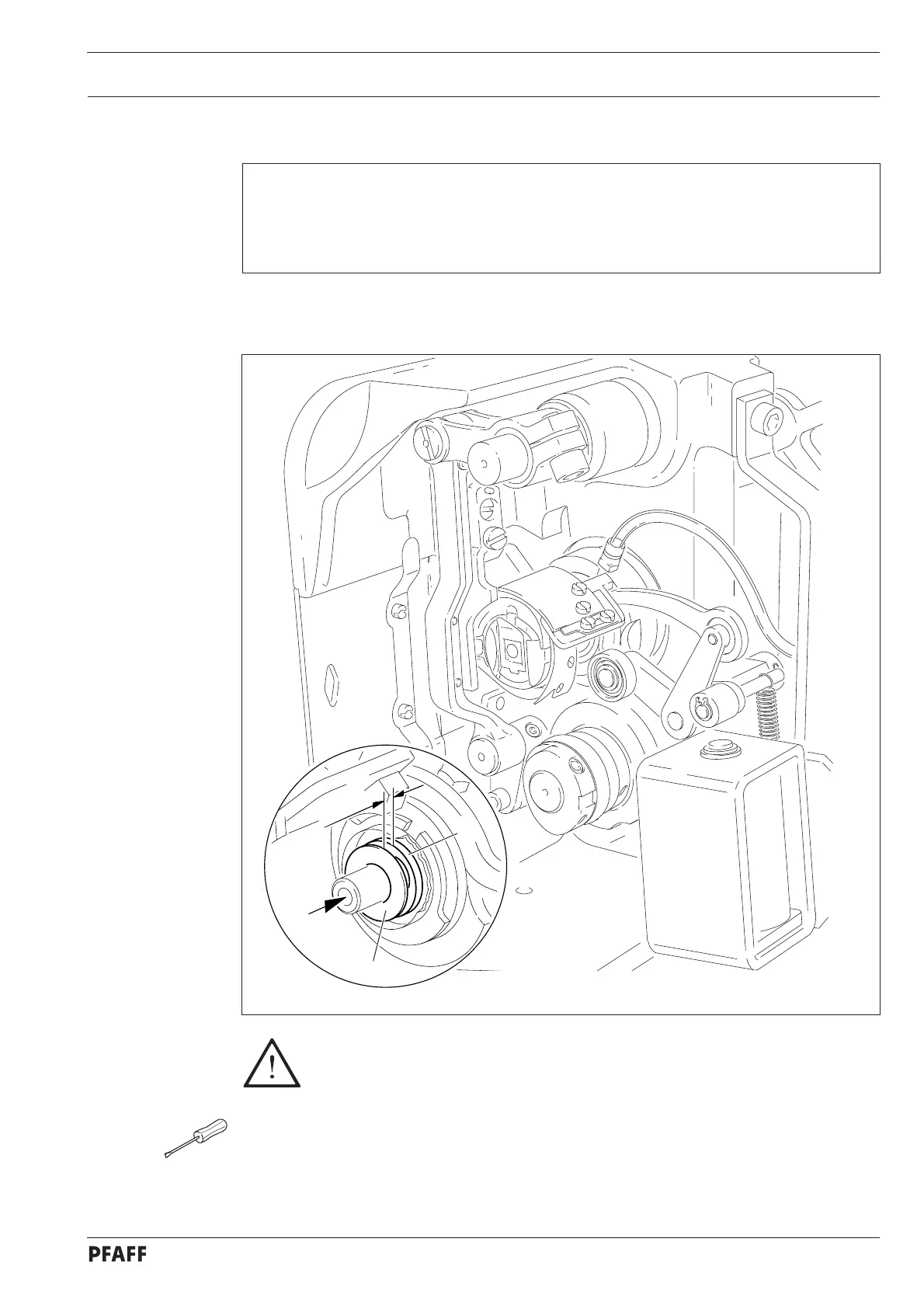

Fig. 13 - 14
2
1
3
1,5 mm
