Adjustment
13 - 9
13.
05.07 Feed dog motion of bottom feed dog
Requirement
With the needle bar at a position 0.6 past b.d.c. on the PFAFF 1181 or in position 0.6 past
t.d.c. on the PFAFF 1183 the feed dog must not make any feeding motion when reverse-
feed lever 3 is operated at the longest stitch length setting.
● Set the longest stitch and the needle bar at the corresponding position.
● Adjust eccentric 1 (loosen screws 2 a little) according to Requirement, but make sure it is
not moved sideways.

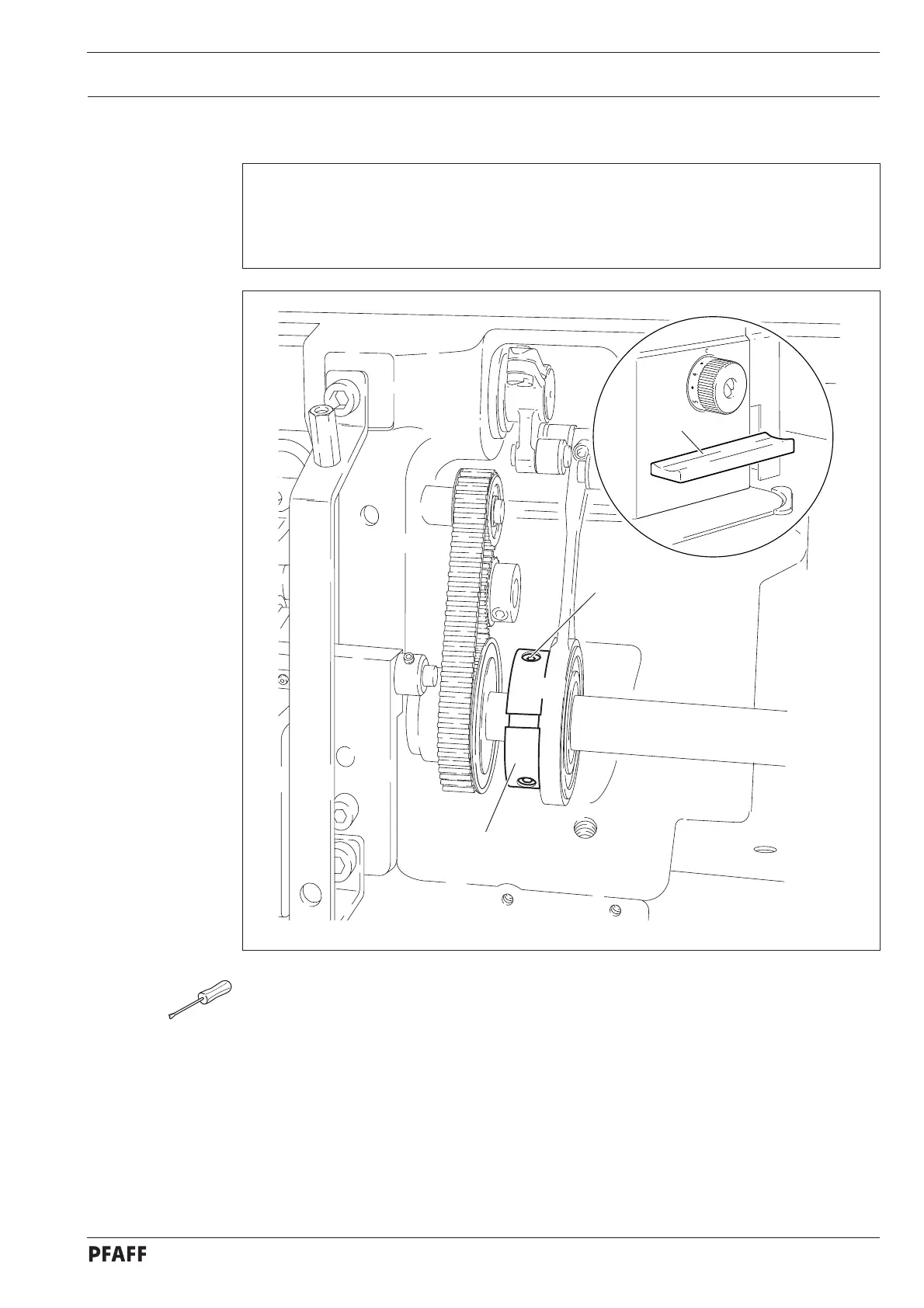

Fig. 13 - 08
3
1
2
