Pfaff 1181 Adjustment Manual

Adjustment
13 - 11
13
.05.09 Needle in needle hole center (only on PFAFF 1183)
Requirement
The needle must penetrate the needle hole exactly in the middle.
● Set the needle in the needle hole.
● Loosen screws 1, 2 and 3.
● Move the needle bar frame 4 according to the requirement.
● Tighten screw 2 and turn screw 3 slightly.
● Via screw 1, bring the retracted guide bolt to the eye of the needle bar frame 4 and
tighten it.
● Turn the handwheel a few times to prevent distortion to the needle bar frame 4.
● Tighten screw 3.
1
4

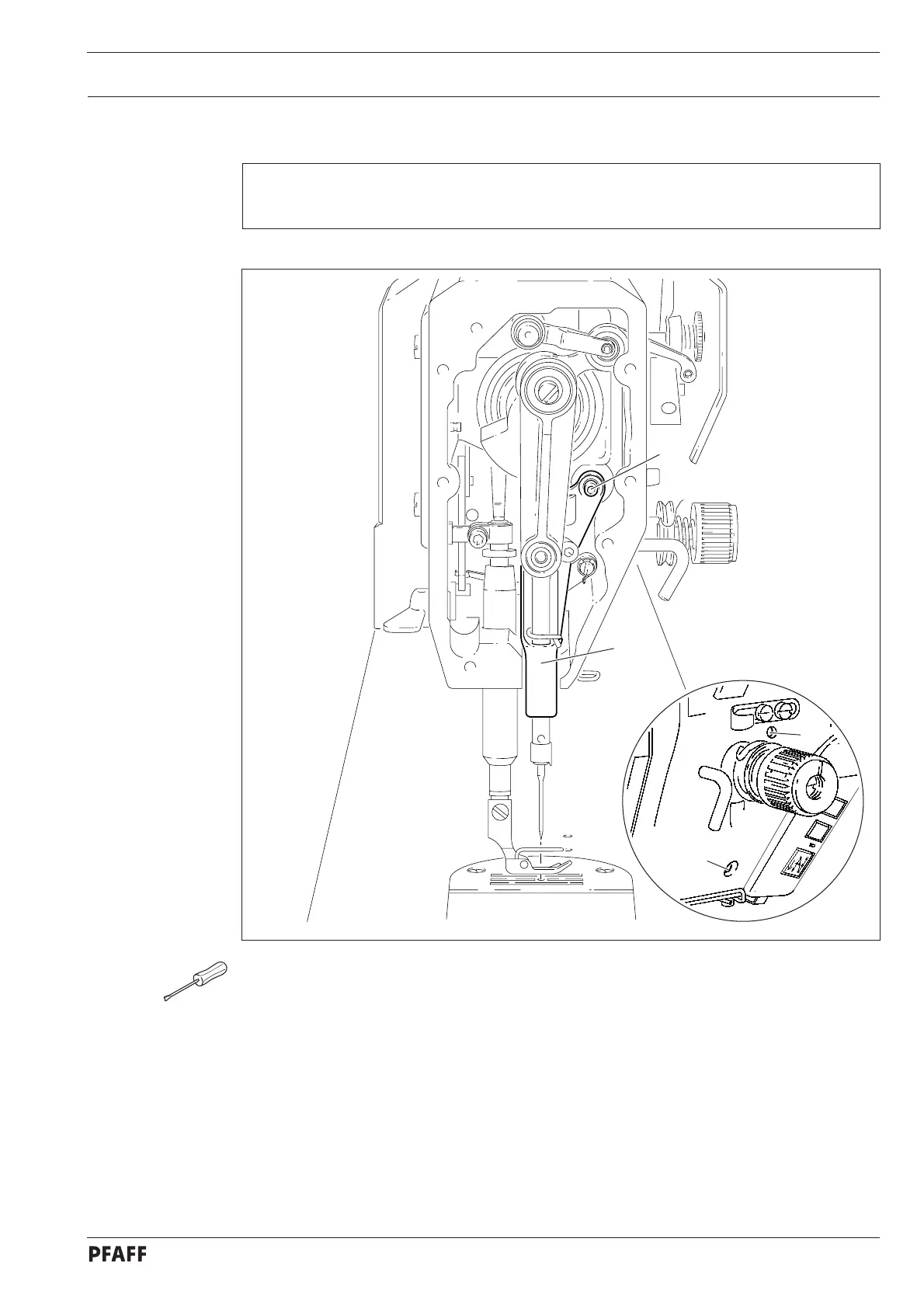

Fig. 13 - 10
3
2
