13.08.02 Thread wiper position
Requirement
Seen from the direction of sewing
1. The point of the thread wiper 5 must be approx. 1 - 1.5 mm to the right of the needle,
and
2. The thread wiper 5 must be approx. 2 mm in front of the needle in its foremost
position.

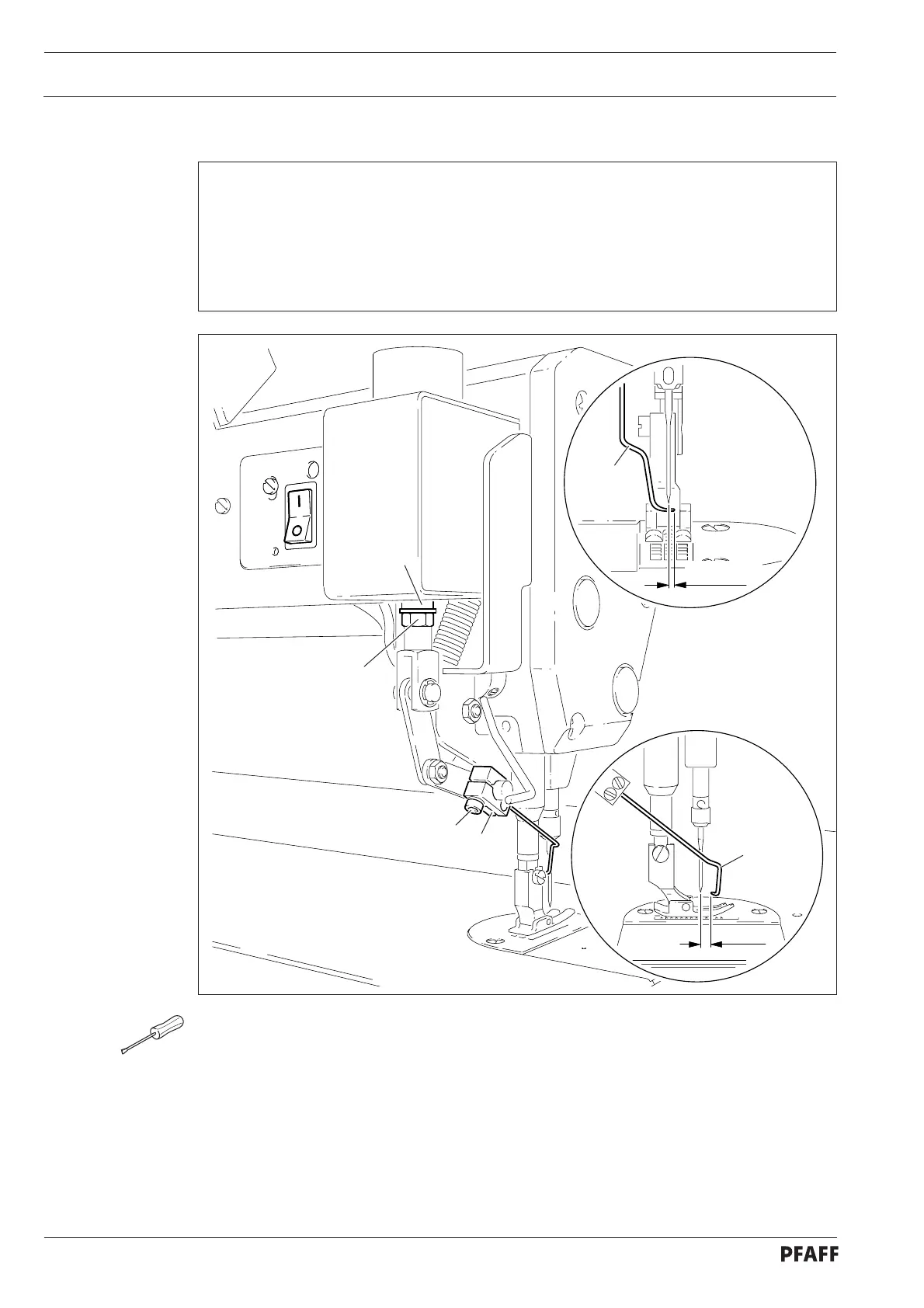

Fig. 13 - 36
5
1 - 1.5 mm
2 mm
5
1
2
4
3
● Slide bracket 1 (screw 2), without turning it, on the shaft according to requirement 1.
● Turn rod 3 (nut 4) according to requirement 2.
