Adjustment
10
13.04.05 Feeding motion
Rule
The feed dog should not move when the reverse-feed lever is activated with maximum
stitch length regulation and when the needle bar is in t.d.c.

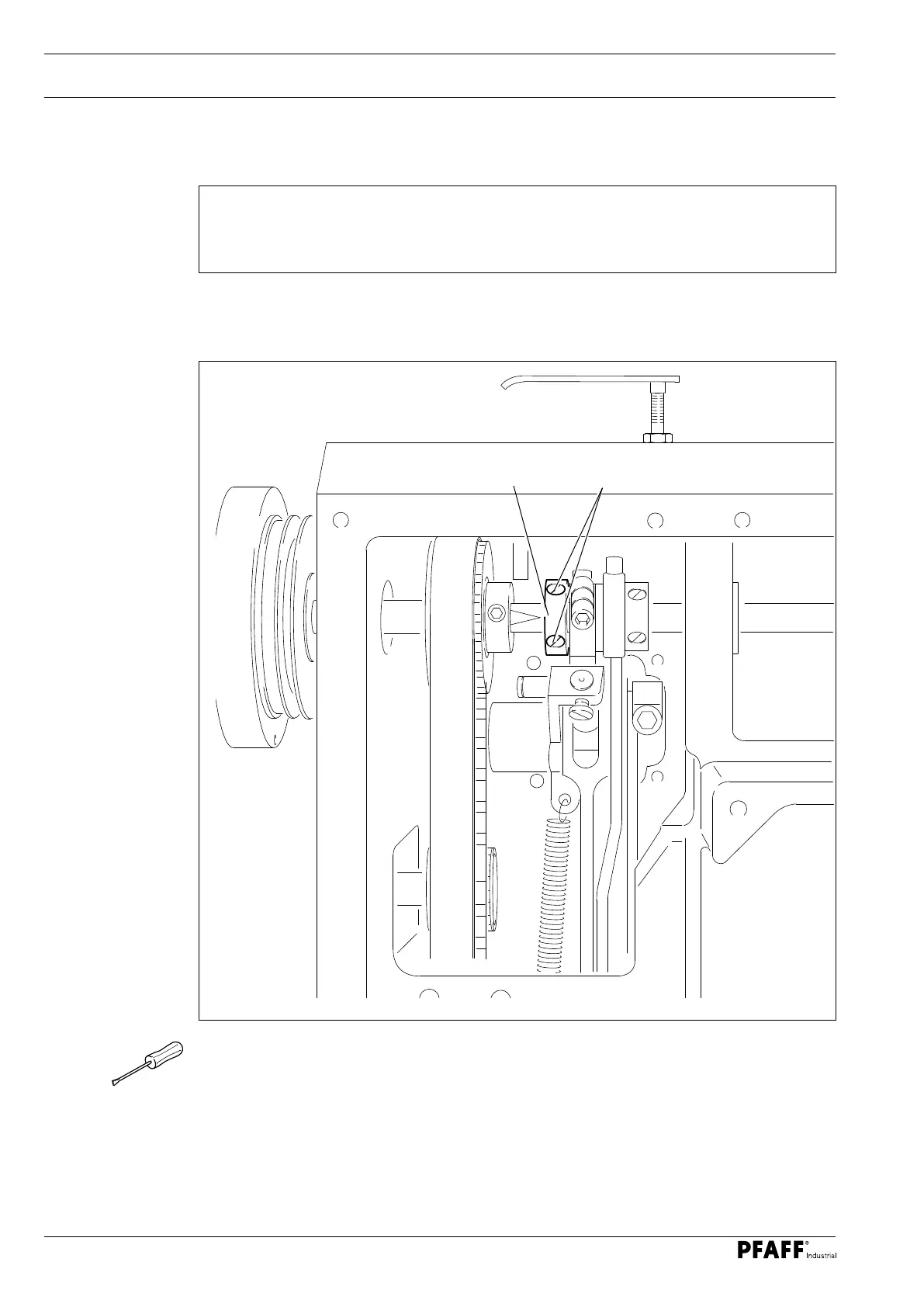

Fig. 13 - 05
O Set the maximum stitch length.
O Loosen the screws 1 until the eccentric 2 is difficult to turn on the shaft.
O Move the needle bar to t.d.c.
O While maintaining this position, initially position the eccentricity of the eccentric 2 to
"down" and then adjust it slightly so that it complies with the rule when the reverse-feed
lever is activated.
O Tighten the screws 1.
1
2
