13.05.10 Connecting rod ( only with the PFAFF 1244)
Rule
The length of the connecting rod 2 should correspond to the clearance between the shaft
3 and the shaft 4 when the thread trimmer is in the neutral position.

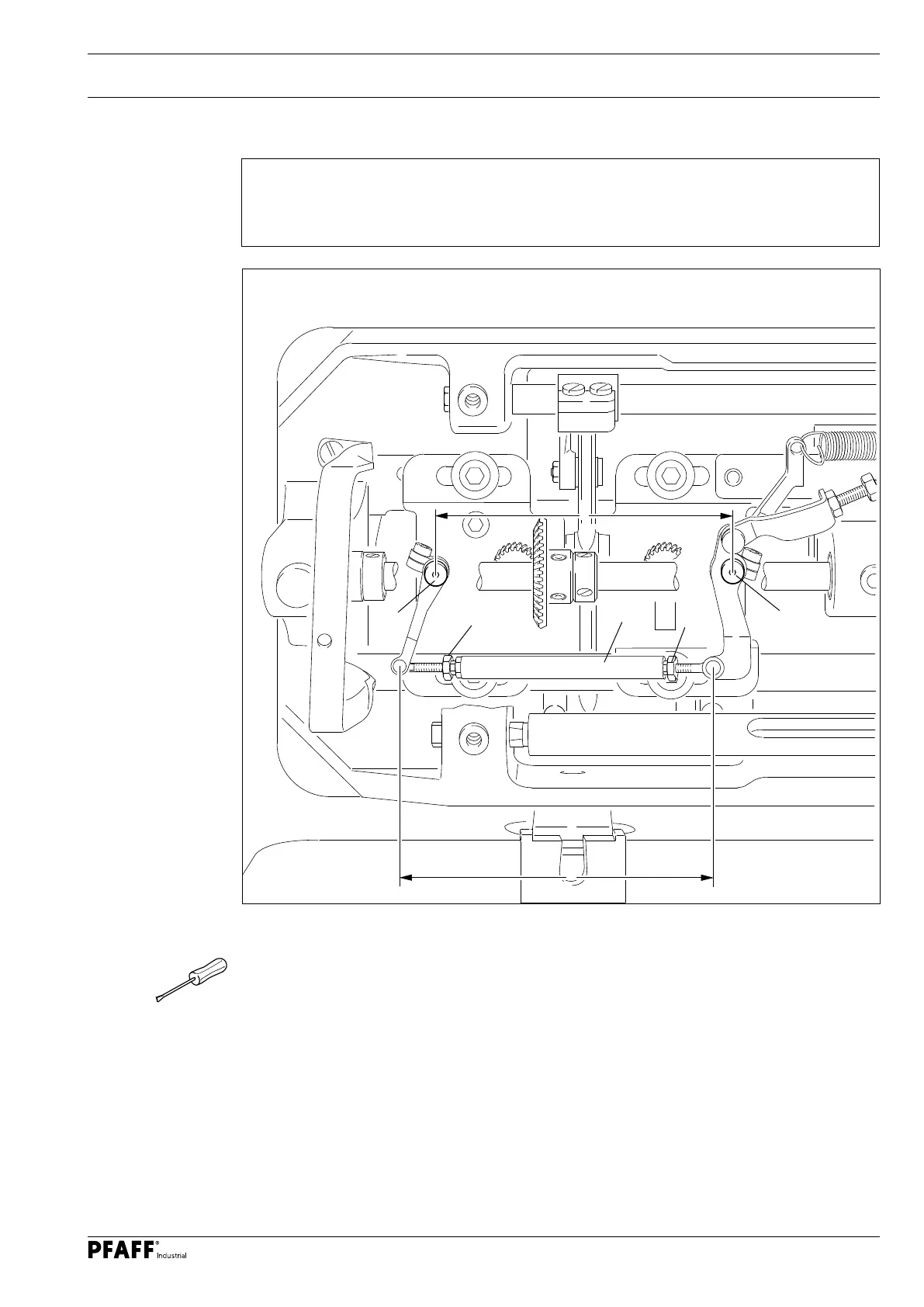

Fig. 13 - 28
O Loosen the nuts 1 (right and left-hand thread) when the thread trimmer is in the neutral
position.
O Turn the connecting rod 2 according to the rule.
O Tighten the nuts 1.
