Pfaff 1244 Adjustment Manual

Adjustment
32

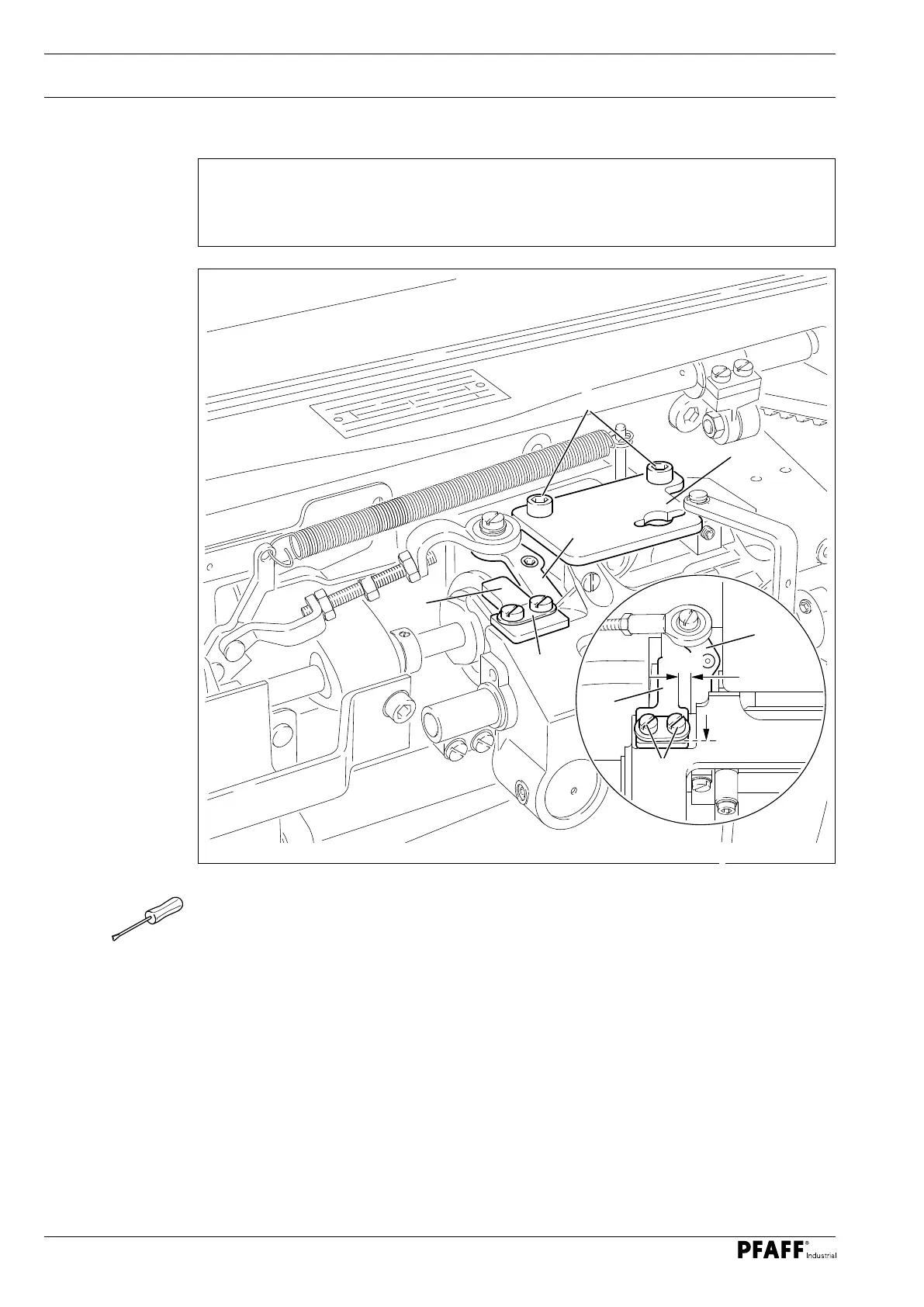

Fig. 13 - 27
13.05.09 Catch
Rule
There should be a clearance of approx. 5 mm between the catch 1 and the tripping lever
6 when the thread trimmer is in the neutral position.
O Gently secure the catch 1 and the cover plate 2 with the screws 3.
O Move the catch 1 to the stop in the direction of the arrow and move it sideways
according to the rule.
O Tighten the screws 3 in this position.
O Attach the plate 4 with the screws 5.
4
5 mm
3
1
6
6
1
2
5
